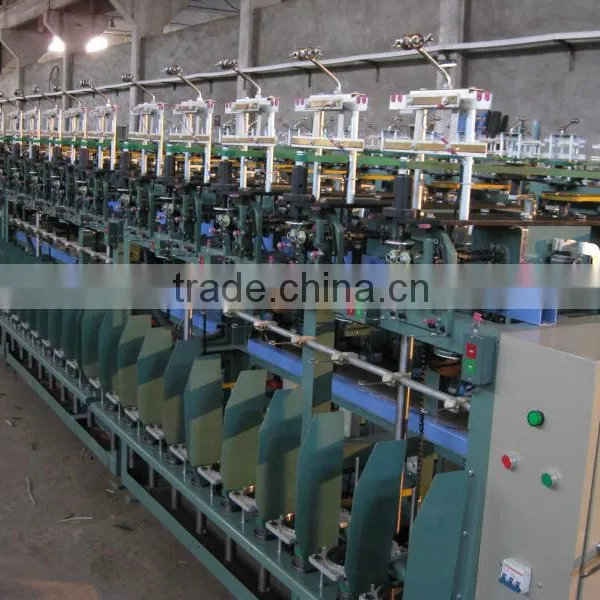

FB753B Chenille Machine

Specifications

Chenille Machine is suitable for making chenille yarn, it can make curtains, sofa fabrics, carpets, etc.

Application:



FB753B-80 Chenille Machine is suitable for spinning wool, cotton, polyacrylonitrile fiber, polyamide
fiber, polyester, through rotor, 2-3 piles of yarns are cut into short pile and gripped into the 2-ply-core-yarn, then luxurious chenille yarn is obtained.
Specifications:

1) Spindle Gauge: 200mm

2) Spindles per frame: The spindles can be combined to 80 spindles on the basis of 20 spindles.
3) Internal diameter of ring: 112mm

4) Lift Stroke: 280mm(can be adjusted)

5) Lift Speed: Adopts imported inverter and PLC to control it.

6) Count: 0.5 - 8Nm

7) Roller Diameter: 29.5mm

8) Spindle Speed: 4725 - 6000rpm

9) Rotor Speed: 6000-15000rpm

10) Production: 6.8 - 10.5m/min

11) Power: 4.1kw / 20 spindles

12) Every 10 spindles size: 2040* 1700* 2600 (L*W*H)

13) Waste suction and Stop Motion can be installed according to customers' requirment.
