Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Router > Factory Supplier QL-2512-8 DSP Multi-head 4 Axis Engraving Machine for 3d Solid Wood

Factory Supplier QL-2512-8 DSP Multi-head 4 Axis Engraving Machine for 3d Solid Wood

US$ 20,000 - 25,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Guangzhou Quanli Digital Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Place of Origin Guangdong, China

Brand Name QL

Model Number QL-2512-8

Voltage AC380V/220V-50HZ

Power(W) 2.2KW*8

Dimension(L*W*H) 3630*2430*1980mm

Weight 1200kg

Certification CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

QL-2512-8 Multi-head 4 Axis engraving machine

Product Description

Technology parameter

Name	QL-2512-8
Engraving area	1200*300mm
Workbench maximum load	1200kg
Run mode	Servo motor
Machine dimensions	363024301980mm
Spindle motor output power	2.2kw
Repeat positioning accuracy	0.05mm
Spindle speed	8000-24000rpm
Maximum moving speed	18m/min
Maximum processing speed	12m/min
Operating voltage	AC 220V/380V 50HZ

performance characteristics

1.Support G code files of Wentai, ARTCAM and Type3 software. Also support CASTMATE software.

2.Y axis with double motor driving ensure stable and smooth movement of the machine.

110B stepper motor with high drive power, suit for all kinds of heavy wooden engraving and cutting.

3.High power air-cooling spindle can make machine working with high precision, low noise, high rotate speed, long service time and stable movement.

4.DSP control system,Synchro- four-axes control, with excellent stable features, favorable maintainability, can control complete cylindrical 3d effect and tetrahedral rotate processsing. Especially suit for characters statue and Europe furniture legs working and engraving.

5.Welded structure of thick profiled steel and inner stress removed by vibration ageing treatmeng, strong lathe bed makes the machine with rigidity, no distortion.

Applicable materials:

For complex 3D processing and carving of solid wood furniture, sofa, stair columns and statue crafts.

♦Related product

To perfect our one-step service and make high quality advertising word,we also specialized in below products which u will interested in:

1.super welder laser welding machine (click to the Home !)

2.Fiber laser cutting machine (click to the Home!)

3. Automatic Dual handheld fiber fixing welding machine(click to the Home!)

4. Automatic slotting&notching machine for abrasive disc(click to the Home!)

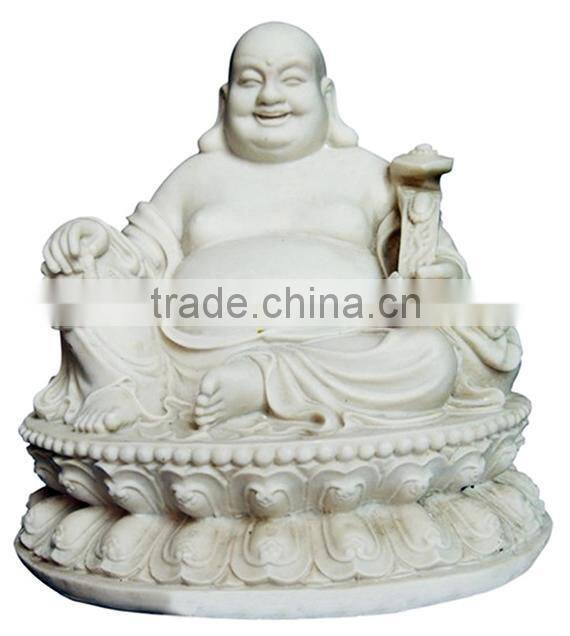

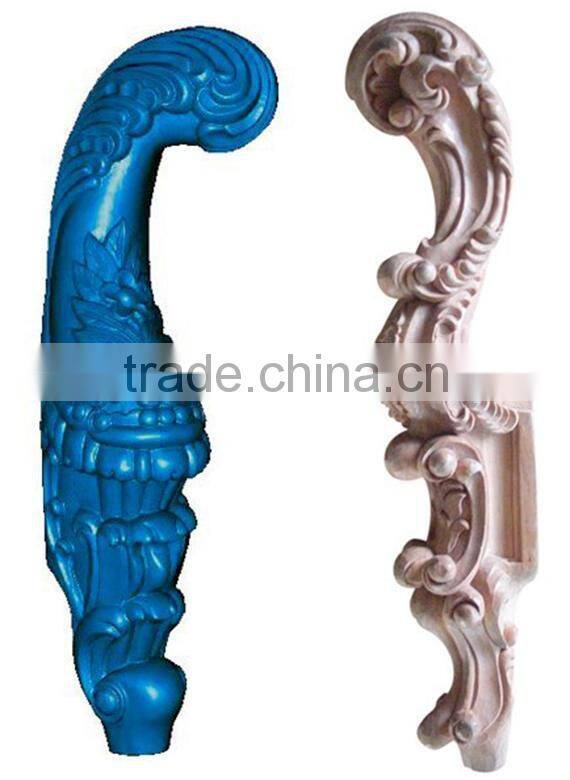

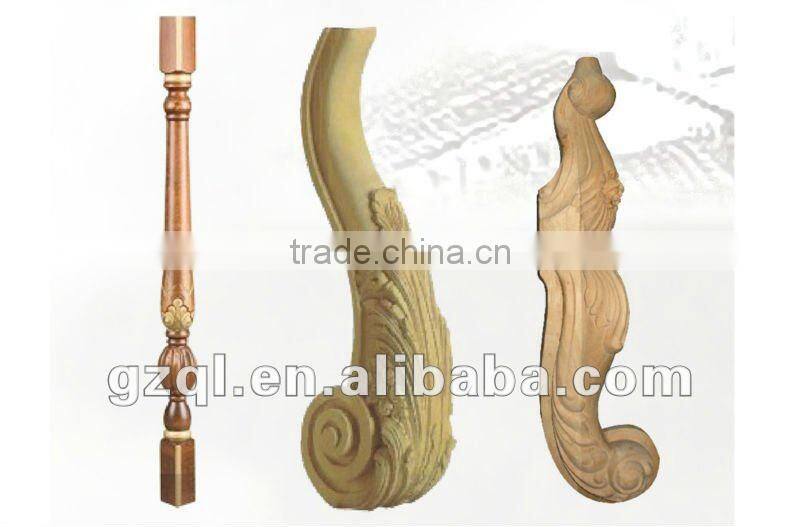

sample

Packaging & Shipping

Packaging details:Wooden case

Delivery details:Within 15 days after payment

Company Information

If you have any questions ,just contact us:

TEL1:400-030-8885

TEL2: 0757-23619000

Our Services

Warranty

1.One year quality guaranty, the machine with main parts(excluding the consumables)

2.With lifetime maintenance

3.Free training course at our company

After-sale Service

a)Engineer available to serve machinery overseas

b) All the machines will be tested and adjusted as per requirements before shipping.

c) On-site training service provided.

FAQ

♦Q: How about after-sales service?

A: 1. We can provide free training in our Foshan factory or Guangzhou office.

2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.

♦Q: How about the warranty?

A: One year warranty. Spare parts are not included. We suggest u buy some spare p arts in stock.

♦Q: What should I do when I have some problems or questions?

A: Pls don’t hesitate to contact us via Skype, WhatsApp, Viber or email, we will reply u ASAP. If u are not satisfied with someone’s service, u can complain to our Boss.

♦Q: How about the quality?

A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.

♦Q: Which is the most suitable model machine for me?

A: Pls tell us your materials, thickness, size and business industries.
