Guangzhou Manufacturer QL-1018 Hanging Plate Cnc Double-spindle Vacuum Adsorption Engraving Machine

US$ 7,000 - 8,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Guangzhou Quanli Digital Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Place of Origin Guangdong, China

Brand Name QL

Model Number QL-1018

Voltage AC380V/220V

Power(W) 3.0KW

Dimension(L*W*H) 1000*1800*190mm

Weight 1000kg

Certification CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

QL-1018 hanging plate double-spindle engraving machine

Technology parameter

X,Y,Z working area	10001800190mm
X,Y,Z traveling position accuracy	<=0.1mm
X,Y,Z reposition accuracy	<=0.1mm
Table surface	PVC
Lathe bed	Cast
X,Y transmission	High accuracy gear rack
Z transmission	Imported ball screw
Max power consumption(without spindle)	12kw
Max travel speed	30000m/min
Max working speed	20000m/min
Spindle power motor	1.5kw 2, 1.5kw3, 1.5kw4,1.5kw5
Spindle speed	24000r/min
Driver system	Step motor
Working voltage	380V/220V
Command language	G code
Operation system	DSP
Interface	USB
Flash memory	128M
Collect	3.175-12.5
X,Y resolution	<=0.1mm
Software	UCANCAM, Type3

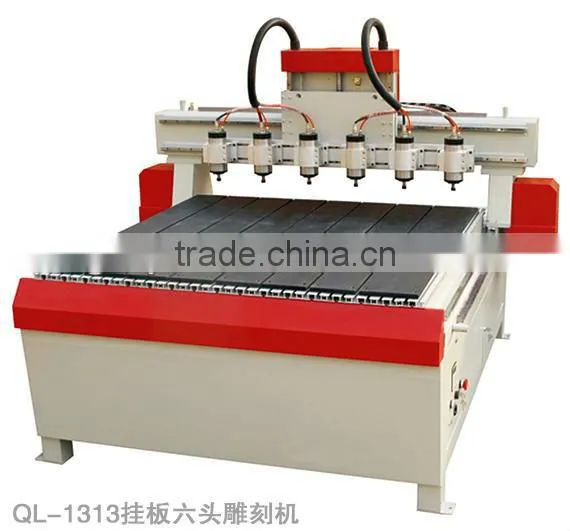

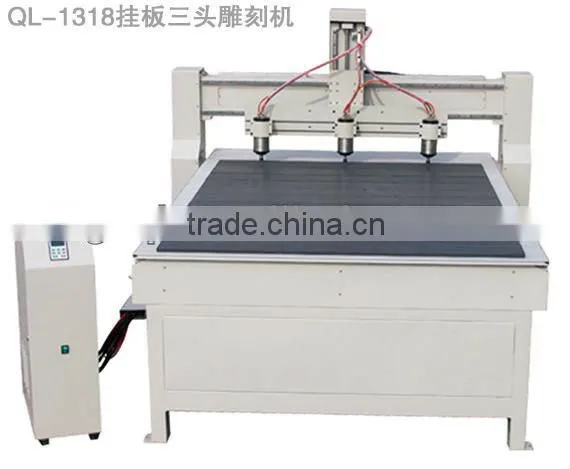

Other modles

performance characteristics

1.The number of the spindle of multi-spindle engraving machine can be customized. Its spindle power can be changed according to the product size. If you adopt the spindle of 3KW or more than 3KW, you have to cut down the number of the spindles. It mainly concerns about the stability and the drive power.

2.Multi-spindle engraving machine is an economical machine. The power of the spindle can be configured from 800W-1.5KW. Normal cutting speed is very stable, but the disavantage is that the tools' flexibility is worse than the independent multi-spindle model.

Applicable materials:

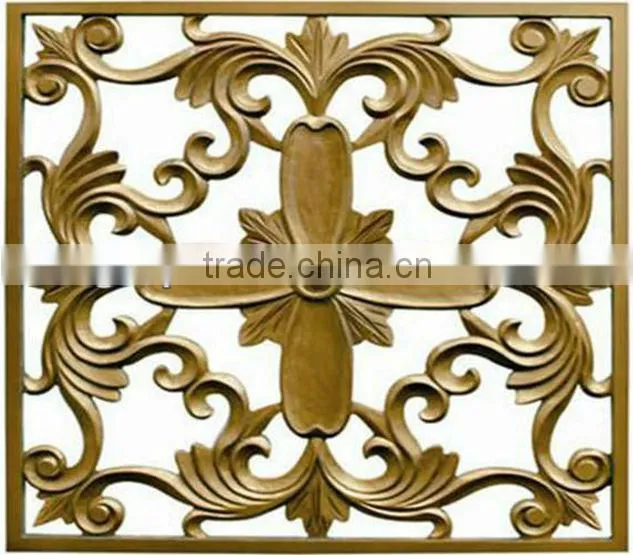

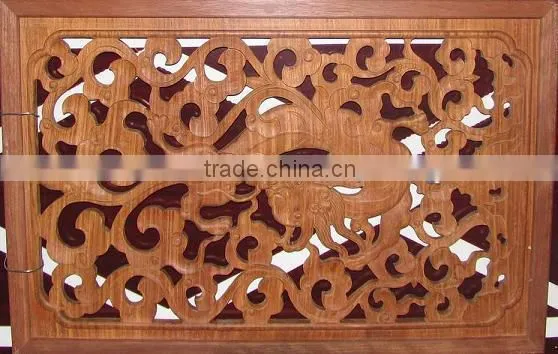

Is suitable for wooden furniture's carving on the carved plate,can carve complicated pattern,especially for the mass production of the small size carving.

♦Related product

To perfect our one-step service and make high quality advertising word,we also specialized in below products which u will interested in:

1.super welder laser welding machine (click to the Home !)

2.Fiber laser cutting machine (click to the Home!)

3. Automatic Dual handheld fiber fixing welding machine(click to the Home!)

4. Automatic slotting&notching machine for abrasive disc(click to the Home!)

sample

Company Information

If you have any questions ,just contact us:

TEL1:400-030-8885

TEL2: 0757-23619000

Our Services

Warranty

1.One year quality guaranty, the machine with main parts(excluding the consumables)

2.With lifetime maintenance

3.Free training course at our company

After-sale Service

a)Engineer available to serve machinery overseas

b) All the machines will be tested and adjusted as per requirements before shipping.

c) On-site training service provided.

FAQ

♦Q: How about after-sales service?

A: 1. We can provide free training in our Foshan factory or Guangzhou office.

2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.

♦Q: How about the warranty?

A: One year warranty. Spare parts are not included. We suggest u buy some spare p arts in stock.

♦Q: What should I do when I have some problems or questions?

A: Pls don’t hesitate to contact us via Skype, WhatsApp, Viber or email, we will reply u ASAP. If u are not satisfied with someone’s service, u can complain to our Boss.

♦Q: How about the quality?

A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.

♦Q: Which is the most suitable model machine for me?

A: Pls tell us your materials, thickness, size and business industries.
