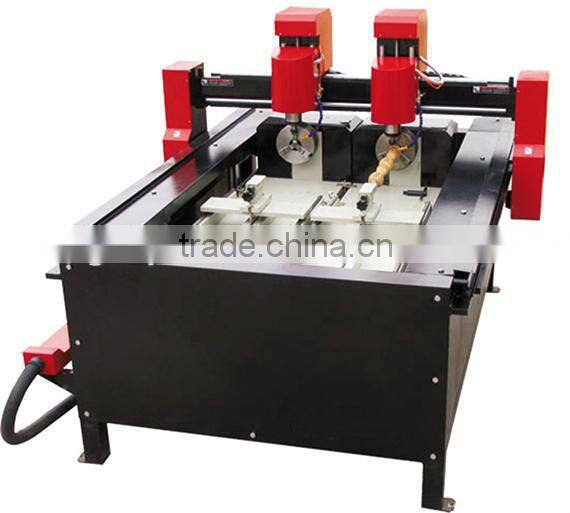

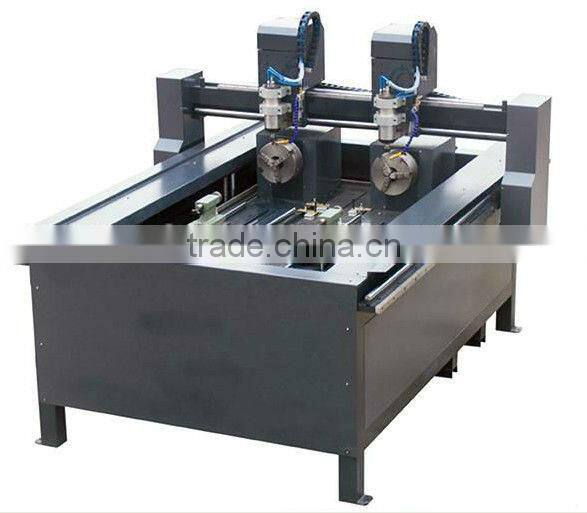

QL mini 3d cnc router machine

FOB Price

USD $6,000 - $9,500 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port GuangZhou

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	CNC or Not:	CNC	Place of Origin:	Guangdong, China
Brand Name:	QL	Model Number:	QL-1118	Voltage:	AC 220V/380V 50HZ
Power(W):	1.5kw-2kw	Dimension(LWH):	1100*1800mm	Certification:	CE
Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

1. Technical parameters

Name	QL-1118
Engraving area	1100mm*1800mm
Lifting Height	400mm
Lifting Weight	1000kg
Rotator max diameter	300mm
Rotator max length	1000mm
Max air speed	5000mm(DSP Handel) 9600mm(Ncstudio)
Spindle speed	6000-24000 rpm
spindle tools	Φ3.175, Φ6, Φ12.7
Power control	AC 220V/380V 50HZ
Driving system	Leadshine 882 step motor
Machine weight	500kg

2. Application

- Besides functions of other normal engraving machines, this euipment can be widely applied to the cube and cylinder engraving and processing, such as hardwood, marble, white marble cylinder, etc..

3. Features

- Two spindles double the work efficiency:

- With lifting table, two rotary attachments can be fixed on the machines when low the table, so the machine can work on column shape work pieces;the rotary attachments are very powerful,and has a big load;

- The biggest size for the column work piece:diameter 400mm,length 1200mm,weigth 56 kgs;

- The water tank is specially designed and glass engraving;

- Lifting table rises and falls on 4 guiding cylinders and smoothly ;

- The big lifting distance,big load make the machine to work on thick work pieces(700mm) like marble;the max,lifting weigth is up to 1500 KGS;

- After removing the rotary attachments,raise the table,the machine can do all the engraving or cutting work as other routers;

- Welded structure of think profiled steel and inner stress removed by vibration ageing tretment strong lathe bed the machine with rigidity,no distortion.

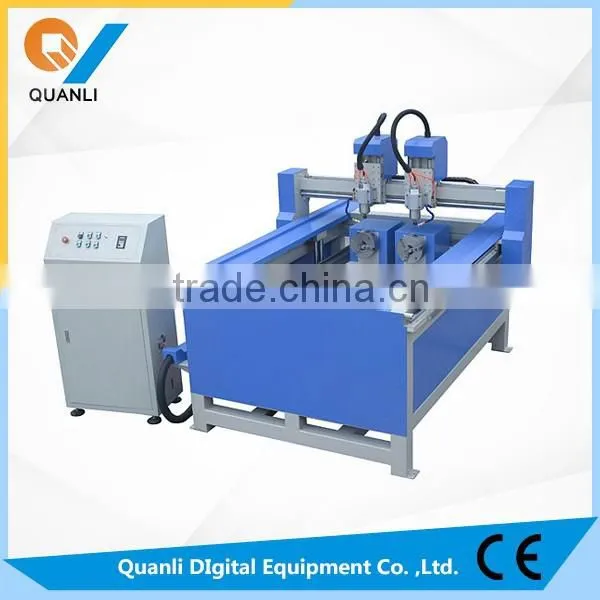

other model:

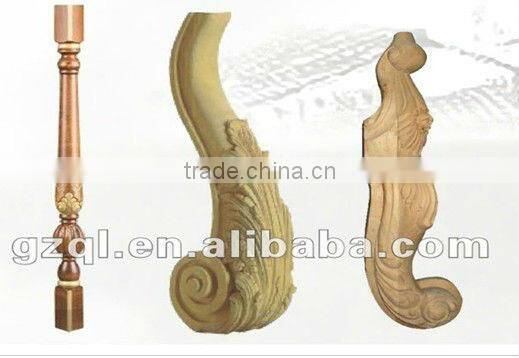

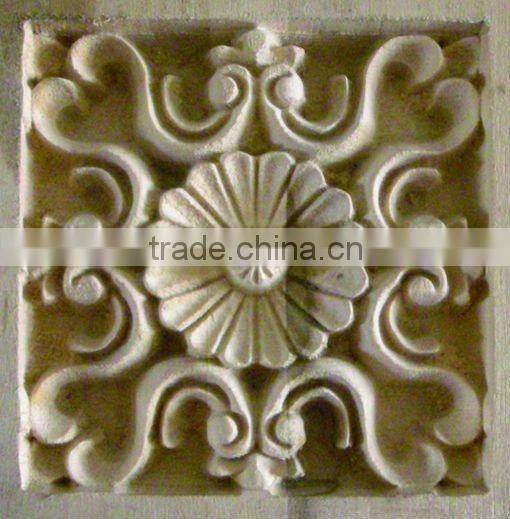

samples

FAQ

Q: How about after-sales service?

A: 1. We can provide free training in our Foshan factory or Guangzhou office.

2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.

Q: How about the warranty?

A: One year warranty. Spare parts are not included. We suggest u buy some spare parts in stock.

Q: What should I do when I have some problems or questions?

A: Pls don’t hesitate to contact us via Skype, WhatsApp, Viber or email, we will reply u ASAP. If u are not satisfied with someone’s service, u can complain to our Boss.

Q: How about the quality?

A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.

Q: Which is the most suitable model machine for me?

A: Pls tell us your materials, thickness, size and business industries.

Packaging

Our Services

1. Engineer available to serve machinery overseas
2. All the machines will be tested and adjusted as per requirements before shipping.
3. 12 months warranty.

Contact Us

Guangzhou Quanli Digital Equipment Co., Ltd.: Contact nameJany Jin; Phone86-020-87748114; AddressNo.512,Decoration Main Building of Tianpingjia,Guangzhou North Avenue,Guangzhou,China Guangzhou,Guangdong
