polyester with glass fiber mesh for SBS membrane
Technical Data sheet of Compound base
ITEMS |
Performance |
|||||
4*4 |
5*5 |
6*6 |
7*7 |
8*8 |
Two-layer 6*6 |
|
Mass per unit area(g/m2) |
70 |
85 |
105 |
105 |
120 |
130 |
Mass coefficient of variation per unit area |
10% |
10% |
10% |
10% |
10% |
10% |
Transvers tension(N/50mm) |
100 |
150 |
200 |
450 |
550 |
600 |
Longitudinal tension(N/50mm) |
250 |
350 |
400 |
500 |
600 |
700 |
Elongation at break |
2% |
2% |
2% |
2% |
2% |
2% |
Transvers tear strength(N) |
100 |
150 |
150 |
300 |
350 |
400 |
Longitudinal tear strength(N) |
200 |
250 |
300 |
350 |
450 |
500 |
Water resistance |
80% |
80% |
80% |
80% |
80% |
80% |
Moisture content |
2.5% |
2.5% |
2.5% |
2.5% |
2.5% |
2.5% |
Transvers mesh density(lines/100mm) |
10 |
15 |
25 |
36 |
50 |
72 |
Longaitudinal mesh density(lines/100mm) |
19 |
27 |
37 |
40 |
50 |
80 |
Producing:

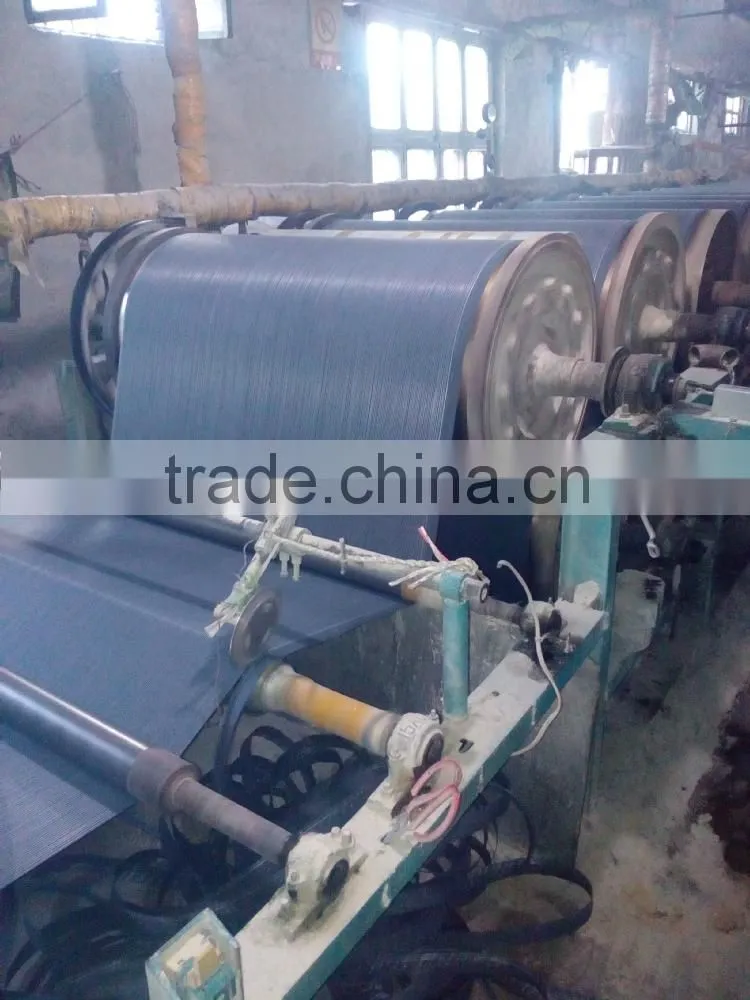

Glass fiber mesh and polyester-cotton non-woven are bind each other by adhesive,after high-temperature drying and styling,last output the compound base product.
Characteristic:
This product has high tensile strength,especially in machine direction,easy to soak,the producing
technology is mature and stable, product has competitive price. Easy to roll and loading container.
Using:
Widely used in waterproof material, such as waterproof membrane(SBS/APP modified bitumen).
End product:
1.sample: the sample is free ,you only should pay for the freight.
2.If you order to us ,we must promise the quality ,if some quality problem happened,
1)We will dispatch our Quality and Problems Appraisers to make a confirmation
2) Have a negotiation of the compensation and sign agreements
3) Our After-Sales Department will perform the duties as the agreements.
Weifang Xuxin Waterproof Materials Co.,Ltd. Is one specialized supplier on waterproof materials. The company is located in Taitou Town, Shouguang City, One very famous waterproof materials town in China.
The company mainly supply SBS/APP modified bitumen waterproof membrane,Self-adhesive bitumen membrane/Tape,Polythene and polypropylene polymer compound waterproof membrane,PVC waterproof membrane,EPDM coiled rubber waterproof membrane,Polyester/Compound felt for SBS/APP membrane,PP Non-woven fabric,Colorful polyurethane waterproof coating and some other relevant waterproofing products.
Poducts got the approval of ISO9001 certification, And ISO14001 certification. And some products can meet American ASTM and CE international standards.
Being environmentally friendly, our products are exported to Southest Asia, The Middle East , West Europe,Africa, and Australia. We have won a good reputation among customers around the world. Furthermore, We are continuously developing new products to meet different market demands.
Not for the best, but for the better, work and service for you esteemed customers requirmrnts.Hope to contribute to waterproofing industry for future brilliance with you together.
Year of Incorporation |
2003.9 |
Annual Turnover 2012 |
23000000USD |
Size of factory (SQM) |
18180 |
Estimated Turnover 2013 |
35000000USD |
Total number of staff |
200 |
Ownership |
private |
ISO Certification |
ISO9001 ISO14001 |
ISO Certificate number |
10410Q20910ROS 10410E10261ROS |
ISO Accreditation issued by |
Shandong WorldCom Quality Certification Co., Ltd. |
ISO issue Date |
2010.11.18 |
