Channel Letter Auto Bending Machine Price S9710

Channel Letter Auto Bending Machine Price S9710 thumbnail-1
Channel Letter Auto Bending Machine Price S9710 thumbnail-2
Channel Letter Auto Bending Machine Price S9710 thumbnail-3
Channel Letter Auto Bending Machine Price S9710 thumbnail-4
Channel Letter Auto Bending Machine Price S9710 thumbnail-5
Channel Letter Auto Bending Machine Price S9710 thumbnail-6
Channel Letter Auto Bending Machine Price S9710 photo-1
Channel Letter Auto Bending Machine Price S9710 photo-2
Channel Letter Auto Bending Machine Price S9710 photo-3
Channel Letter Auto Bending Machine Price S9710 photo-4
Channel Letter Auto Bending Machine Price S9710 photo-5
Channel Letter Auto Bending Machine Price S9710 photo-6
US$ 31,000 - 32,000 MOQ: 300 Sets
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Model Number:
S9710
Contact Supplier Request Quote Chat Now
Guangzhou Quanli Digital Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Model Number S9710
Machine Type Beading Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Aluminum
Power Cnc
Automation Automatic
Extra Services Other, Slotting & Notching
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



Machine Introduction

1. Technical Parameters

Name
led channel letter signs bending machine
Power supply
AC200V
Total Power
3.0KW
Compressed air
0.4-0.6MPa
Control axis number
7
Min. Bending radius
stainless steel: R7mm; alu profile: R20mm
Min. distance between interior angle and exterior angle
stainless steel: 4mm; alu profile: 15mm
Bending distance from start
stainless steel: 4mm; alu profile: 10mm
Material
stainless steel coil & strip, aluminium profile, galvanized plate, chanalium, etc.
Material thickness
stainless steel: 0.6-1.0mm; aluminium profil: 1-2mm
Material height
25-175mm
Material feeding method
Clamping alternate feeding
Servo motor number
4pc
Step motor number
3pc
N.W.
900 Kg
Size
2400×1035×1738mm



Support  files: DXF/PLT files input; CAD, Type3, CorelDRAW, Illustrator.



2.  Features:

- 8-axis-high-performance motion card with self-developed control system -- higher moulding precision;

- Unique retractable alternating bending mode;

- Bend mould quick-changing system.

- Multi-toolbar bending mechanism

- Pre-feeding leveling;

- Clamping alternate feeding,  double lead screw nuts driver for slotting.

- Especially capable for making letters with small radien, small angle and complex graphics.

3. Advantages

1.) Suitable for high-end Led sign, crochet letter around alu profil, stainless steel punching letter, resin letter, etc..

2.) Bending angle and speed automatically adjusted before;

3.) Dual-Function: V-Slotting+Bending

4.) Low slotting cost: One tool can be used for half a year (about $25 each tool)

5.) Free upgrade for the Control Software

6.) Support Windows 2000, XP



4. Equipment Details

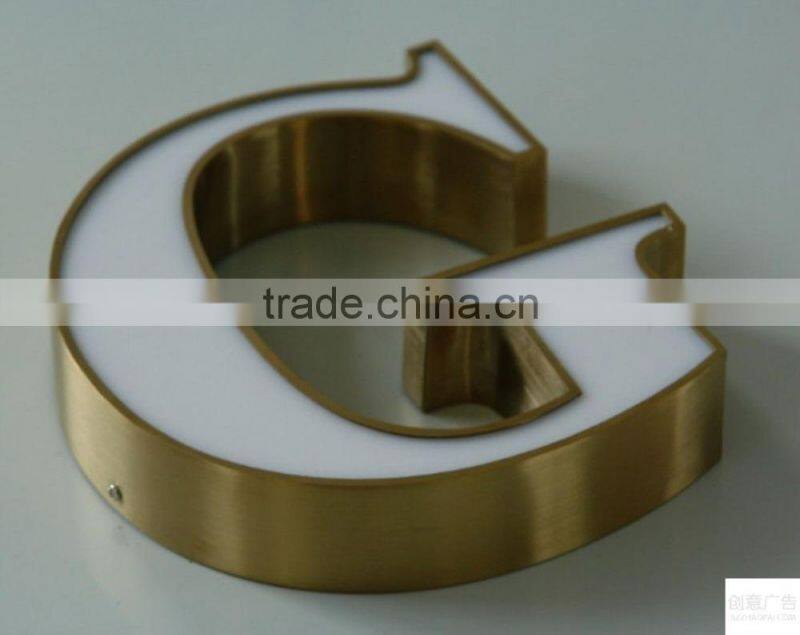

Samples





 Channel letter auto bending machine price S9710

Our Services

Warranty

   1.One year quality guaranty, the machine with main parts(excluding the consumables)

   2.With lifetime maintenance

   3.Free training course at our company

After-sale Service

  a)Engineer available to serve machinery overseas

  b) All the machines will be tested and adjusted as per requirements before shipping.

  c) On-site training service provided.

Related Products

We can offer one stop advertising equipment.

Channel letter auto bending machine price S9710        Channel letter auto bending machine price S9710        Channel letter auto bending machine price S9710

More products, pls click products categories.

FAQ

♦Q: How about after-sales service?

A: 1. We can provide free training in our Foshan factory or Guangzhou office.



     2. If u need, our engineers are available to service machinery overseas. But u           need pay the tickets and hotel fees for our engineers.



♦Q: How about the warranty?

A: One year warranty. Spare parts are not included. We suggest u buy some spare p     arts in stock.



♦Q: What should I do when I have some problems or questions?

A: Pls don’t hesitate to contact us via Skype, WhatsApp, Viber or email, we will          reply u ASAP. If u are not satisfied with someone’s service, u can complain to our  Boss.



♦Q: How about the quality?

A: Before we pack each machine, we will test it first. If machine has problem in  your place, our worker will take responsible for his mistake. And we will solve your  problem.



♦Q: Which is the most suitable model machine for me?

A: Pls tell us your materials, thickness, size and business industries.
