glass marking machine -Min. glass: 25*25mm

Specifications

1. glass marking machines
2. ball bearing
3. Min. glass: 25*25mm
4. 12 Spindles
5. For Heavy Thick Big Glass

Foshan Juesi - The Chinese Premier Glass Machinery Manufacturer





Straight Line Glass Beveling  Machine   Item NO.:JB371





1.  Main transmission of the glass machine adopts chainless ball bearing construction.



2.  Grinding section can be adjusted up or down.



3.  PLC controlled, can be operated manually or by automatic mode.



4.  Glass thickness, beveling width, angle, remaining thickness and speed are shown and can be adjusted by HMI.



5.  Speed of main transmission adopts frequency motor.

6.  Both washing and grinding system of rear plates ensure the level of rear transmission.



7.  Technical parameter of this manual glass beveling machines:



1).Range of Speed:	0.6 ~ 6m/min
2).Min processing size:	25*25mm
3).Max. width of bevel:	50 mm
4).Processing thickness:	3~30mm
5).Bevel degree:	3 ~ 45
6).Weight:	6500KG
7).Power:	26.69KW
8).Dimension:	8300*1600*2200mm

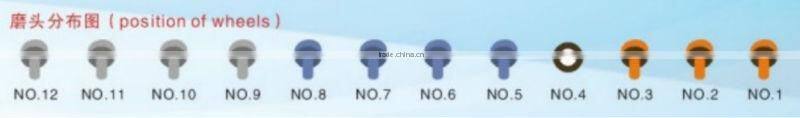

Wheels Distribution:

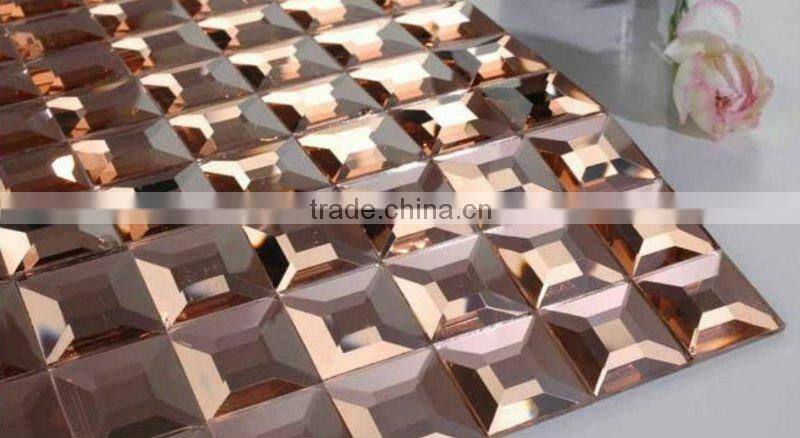

Glass Samples







Comparison between Chain construction and ball bearing construction:



Chainless Ball Bearing Transmission Construction
