5.8Ghz 32CH 2000mw transmitter SKY-N2000 fpv googles
- 10000 Piece / Pieces per Month
- Shenzhen/ Hongkong
- T/T Credit Card
- Minitudou racing drone MTL6055 with Light and 0.3/2MP camera walking&flying car drone
- 3D EVA Puzzles,Animal Puzzle,DIY Toys,Educational Toys,Jigsaw Puzzle
- Thomas novelty electric toys train sets for kids Supplier's Choice
- Nawu Toys 1:16 RC Racing Stimulated Cars Remote 2.4G 4 Channel Radio Control Vehicle Model
- Mini UAV
- Mini UAV
Product Details
Type: | Airplane | Power: | Battery | Material: | Other, Plastic, ABS |
Plastic Type: | ABS | Scale: | Other, FPV Transmitter | Radio Control Style: | RC Hobby |
Place of Origin: | Guangdong, China | Brand Name: | SKYSIGHTHOBBY | Model Number: | SKY-N2000 |
Product Description
5.8Ghz 32CH 2000mw transmitter SKY-N2000 fpv googles
Welcome to enjoy the Skysighthobby wireless AV FPV Transmitter. Skysight products have forged a reputation for qualityand reliability and are tested and developed by FPV pilots for FPV pilots.
The SKY-N2000 FPV Transmitter packs a whopping 2000mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The N2000 can transmit a full range of 32 channels and comes with a clean pre-wired harness, it’s perfect for any long range aircraft!
The N2000 boasts an impressive new feature, the transmitting band and channel can be changed remotely by the user with a 3 position switch on their radio. This means you can quickly change to a clear band and frequency should you encounter interference on your existing channel.
Features of FPV Transmitter :
- Dual-color 128x 64 OLED display showing channel number.
- 2 ways signal inputs, you can switch video signal source using transmitter during flight.
- Low power alert function. support 2-6S, low voltage alert supporting voltage selection.
- Power source voltage indicating.
- TX working current indicating
- TX working temperature indicating
- TX PA detection power indicating
Specifications of FPV Transmitter :
- FPV 5.8G 32CH 2000mW A/V Transmitter Module (TX) W/ OLED Display | (SMA, jack)
- video format supported: NTSC/PAL
- Antenna connector: SMA jack (module side)
- Power input: 6.5-28V (3S Lipo suggested)
- Transmitting current: 600mA @12V
*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty
Detail Specification:
| Test Condition | Min | Typ | Max |
Operating Voltage |
| 6.5V | 12V | 28V |
Output Power | @25℃ | 27dbm | 30dbm | 33dbm |
Antenna Connector |
|
| SMA Jack |
|
Supply current | @12V | 0.5A | 0.6A | 1A |
Operating Temperature |
| -10℃ |
| 80℃ |
Voltage detection accuracy |
| ±0.05V | ±0.1V | ±0.5V |
Current detection accuracy |
| ±0.05A | ±0.06AV | ±0.2V |
Temperature detection accuracy |
| ±5 ℃ | ±5 ℃ | ±10 ℃ |
PA detection accuracy |
|
| N A *1 |
|
Video Band Width |
| 5MHz | 6MHz | 6MHz |
Video Input Impedance |
|
| 75Ω/1Vp-p |
|
Audio input impedance |
|
| 6.5M H z |
|
Audio sub-carrier |
|
| 4.7KΩ |
|
|
|
|
|
|

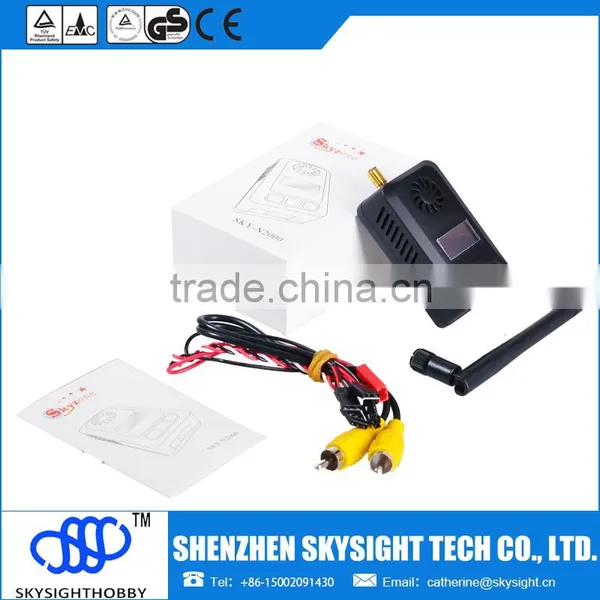

Packing Accessories List
- 1 x 5.8G 2000mW FPV transmitter
- 1 x Stock dipole whip antenna
- 1 x Power in harness
- 1 x Power out Video out Audio out harness
Product Detail:
Product Show:
A | B | C | D | |
1 | 5705 | 5733 | 5865 | 5740 |
2 | 5685 | 5752 | 5845 | 5760 |
3 | 5665 | 5771 | 5825 | 5780 |
4 | 5645 | 5790 | 5805 | 5800 |
5 | 5885 | 5809 | 5785 | 5820 |
6 | 5905 | 5828 | 5765 | 5840 |
7 | 5925 | 5847 | 5745 | 5860 |
8 | 5945 | 5866 | 5725 | 5880 |
