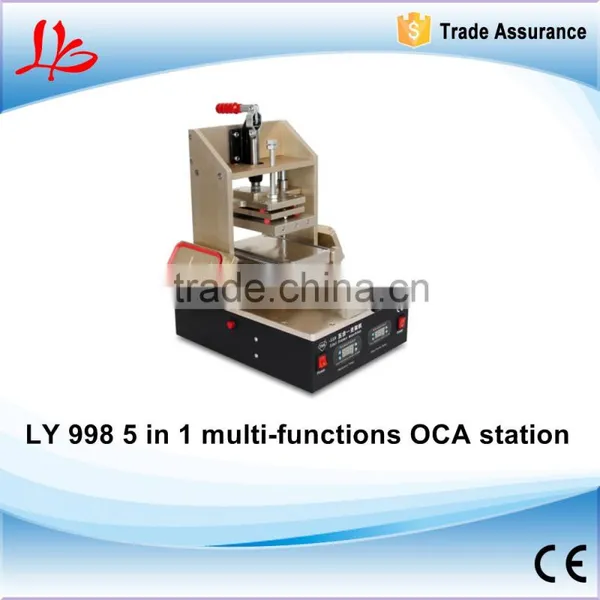

LY 998 5 in 1 Multifunction Frame Separate Machine, get the whole problem for moblie phone
Thank you for using our products.For the safe of use of this new product,Before operating this unit, please read these instructions completely and save this manual for future use.Please do not attempt to disassemble or modified the machine !
PARAMETER
SUPPLY: AC100-240V
POWER: 500 W
SIZE: 250*320*415MM
WEIGHT: 15K
INSTRUCTIONS

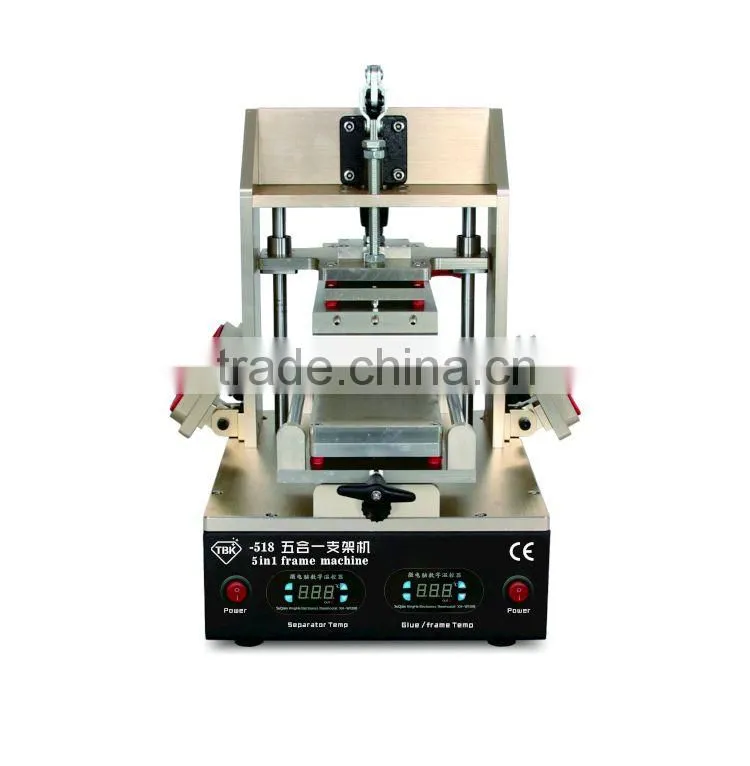

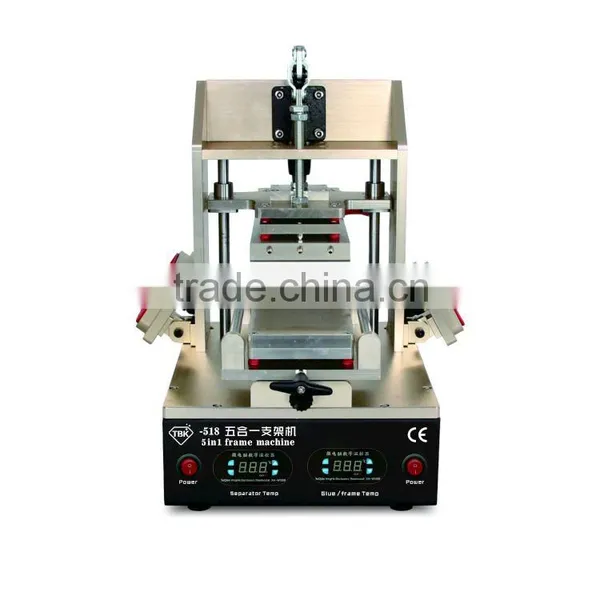

This a 5 in 1 frame machine,which consist of heated plate,A-frame separator,vacuum manual separator,glue remover and frame press.

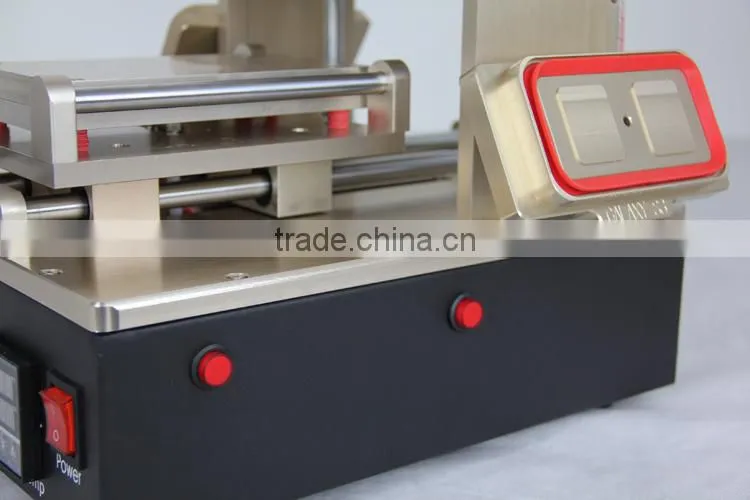

Left is the manual separator ,switch and thermostat
Right is the frame press switch, glue remover switch and thermostat
Operating steps of Middle frame separation
1. Turn on the switch of heated plate thermostat on the left,then setting the temperature to 80℃.
2. Use a sealed bag, Put 530 cleaner spray into the assembly Let the 530 cleaner spray soak assembly every placeSealing for 5 minutes,in order to dissolve the glue between frame and screen.
3. Heating on the heated plate about 20 seconds,turn on the corresponding mould switch,press the assembly on the suction mould.After being sucked, separating the middle frame slowly by hand.
Operating steps of screen separation
1.Turn on the switch of heated plate thermostat on the left,setting the temperature to 80℃.
2.Haul back the lower plate,lock the screw tightly(skid resistance).Put the sillica gel on the heated plate holes to holes,then put the screen.
3.Turn on the suction switch,the screen would be sucked tightly,When the screen reaches a appropriate temperature,begin to separate by the steel wire,screen separation is done.
Operating steps of glue remove
1.Loose the three screws of the blade groove,Put in the blade and screw it.
2.Turn on the thermostat switch on the right side,Setting the temperature to 180℃.
3.Put the sillca gel on the heated plate,after the temperature reached,put into the screen with the flex cable inby.
4.Push the screen,the height of the blade and screen should be the same,then push the screen to remove the glue.
Operating steps of frame press
1.Turn on the thermostat switch on the right mould,setting the temperature to 180℃.

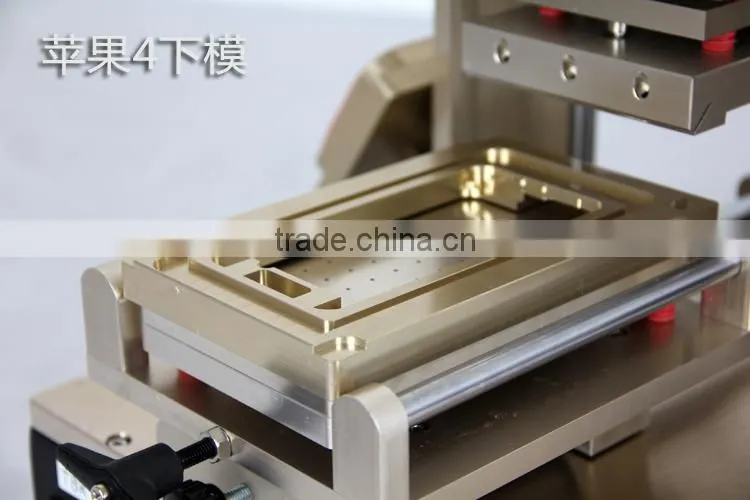

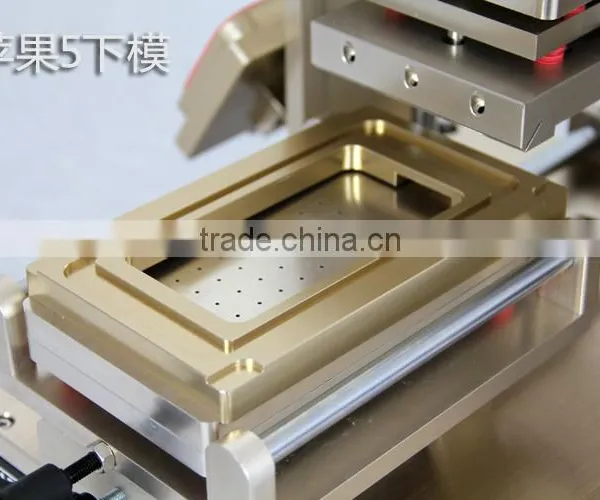

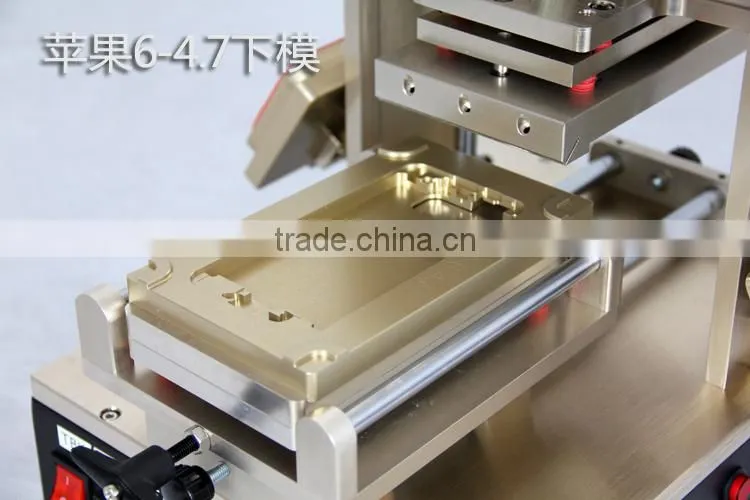

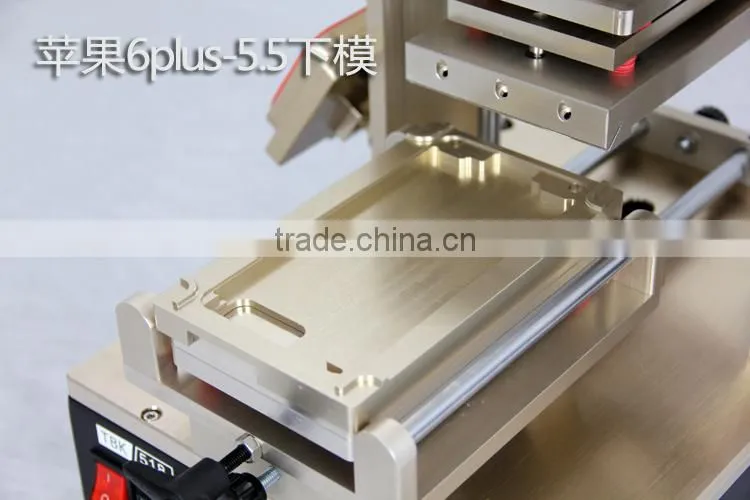

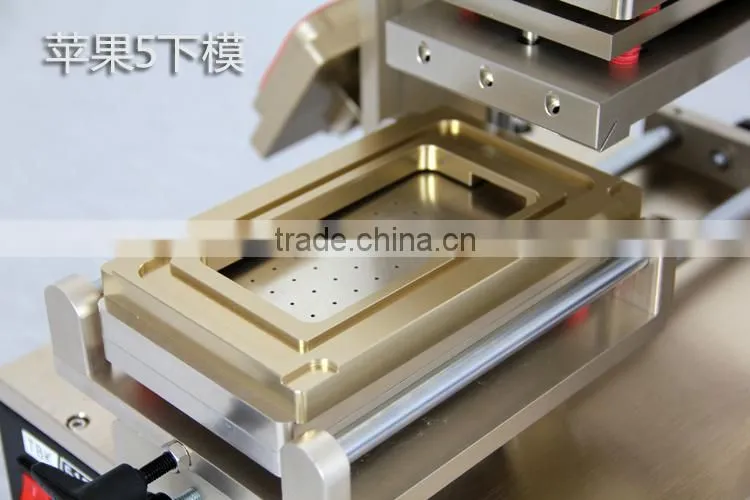

2.Choose a lower mould need to press,put the lower mould into the plate(The groove of mould should be downwards),push the lower mould ,align at the upper mould.Then fix the screws behind the lower mould
3.After installing the frame of screen,put it into the lower mould with the right direction,then put the lower mould into the plate with the right position,Push the lower mould ,press the upper mould for 6-10 seconds.Take out of the frame,frame press is finished.

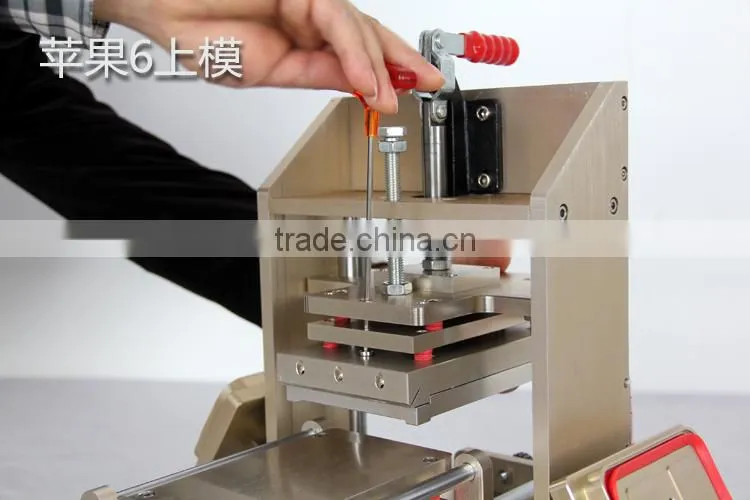

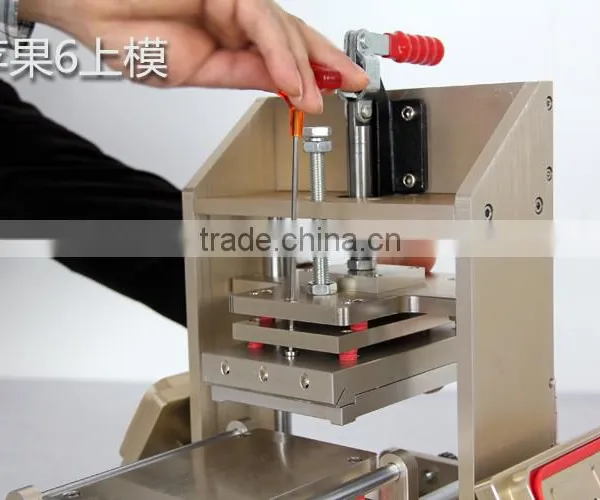

4.When you press the iphone6/6s(4.7),it needs to install the iphone6(4.7) upper mould,While installing the upper mould,the home key should be downwards to buckle the upper mould,It can be used after fixing the two screws of front and back.
*Be careful of your hand.The temperature of the heated plate and upper mould are high
*Take off the blade while you needn't remove the glue,to prevent from hurting in other operations.
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
