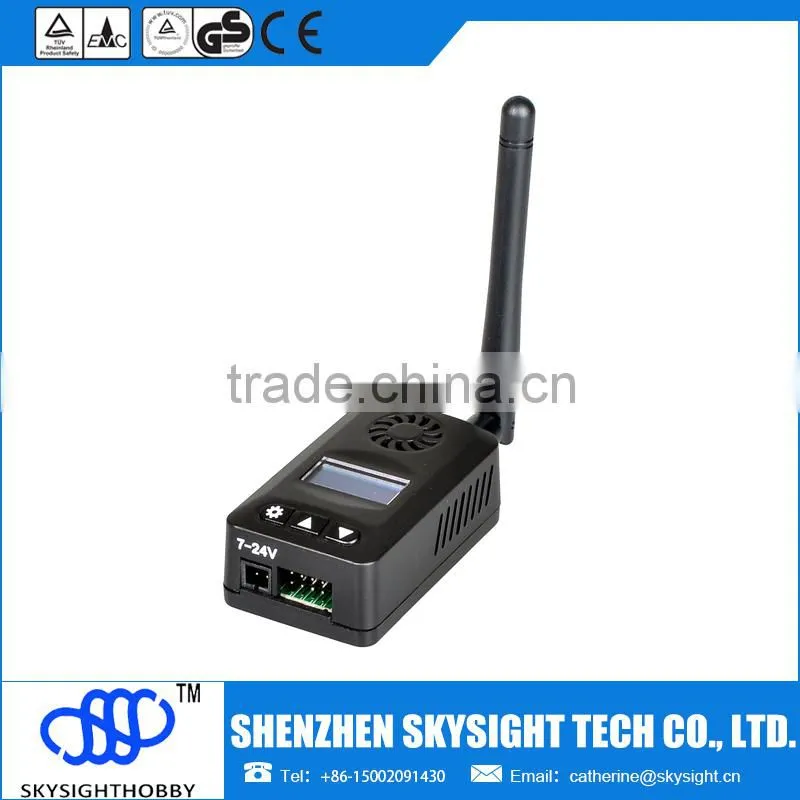

SKY-N2000 FPV Transmitter 5.8GHz 2000mW 32Ch A/V TX WITH DISPLAY Compatible with drone fpv
Welcome to enjoy the Skysighthobby wireless AV FPV Transmitter. Skysight products have forged a reputation for qualityand reliability and are tested and developed by FPV pilots for FPV pilots.
The SKY-N2000 FPV Transmitter packs a whopping 2000mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The N2000 can transmit a full range of 32 channels and comes with a clean pre-wired harness, it’s perfect for any long range aircraft!
The N2000 boasts an impressive new feature, the transmitting band and channel can be changed remotely by the user with a 3 position switch on their radio. This means you can quickly change to a clear band and frequency should you encounter interference on your existing channel.
Features of FPV Transmitter :
- Dual-color 128x 64 OLED display showing channel number.
- 2 ways signal inputs, you can switch video signal source using transmitter during flight.
- Low power alert function. support 2-6S, low voltage alert supporting voltage selection.
- Power source voltage indicating.
- TX working current indicating
- TX working temperature indicating
- TX PA detection power indicating
Specifications of FPV Transmitter :
- FPV 5.8G 32CH 2000mW A/V Transmitter Module (TX) W/ OLED Display | (SMA, jack)
- video format supported: NTSC/PAL
- Antenna connector: SMA jack (module side)
- Power input: 6.5-28V (3S Lipo suggested)
- Transmitting current: 600mA @12V
*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty
Detail Specification:
|
Test Condition |
Min |
Typ |
Max |
Operating Voltage |
|
6.5V |
12V |
28V |
Output Power |
@25℃ |
27dbm |
30dbm |
33dbm |
Antenna Connector |
|
|
SMA Jack |
|
Supply current |
@12V |
0.5A |
0.6A |
1A |
Operating Temperature |
|
-10℃ |
|
80℃ |
Voltage detection accuracy |
|
±0.05V |
±0.1V |
±0.5V |
Current detection accuracy |
|
±0.05A |
±0.06AV |
±0.2V |
Temperature detection accuracy |
|
±5 ℃ |
±5 ℃ |
±10 ℃ |
PA detection accuracy |
|
|
N A *1 |
|
Video Band Width |
|
5MHz |
6MHz |
6MHz |
Video Input Impedance |
|
|
75Ω/1Vp-p |
|
Audio input impedance |
|
|
6.5M H z |
|
Audio sub-carrier |
|
|
4.7KΩ |
|
|
|
|
|
|

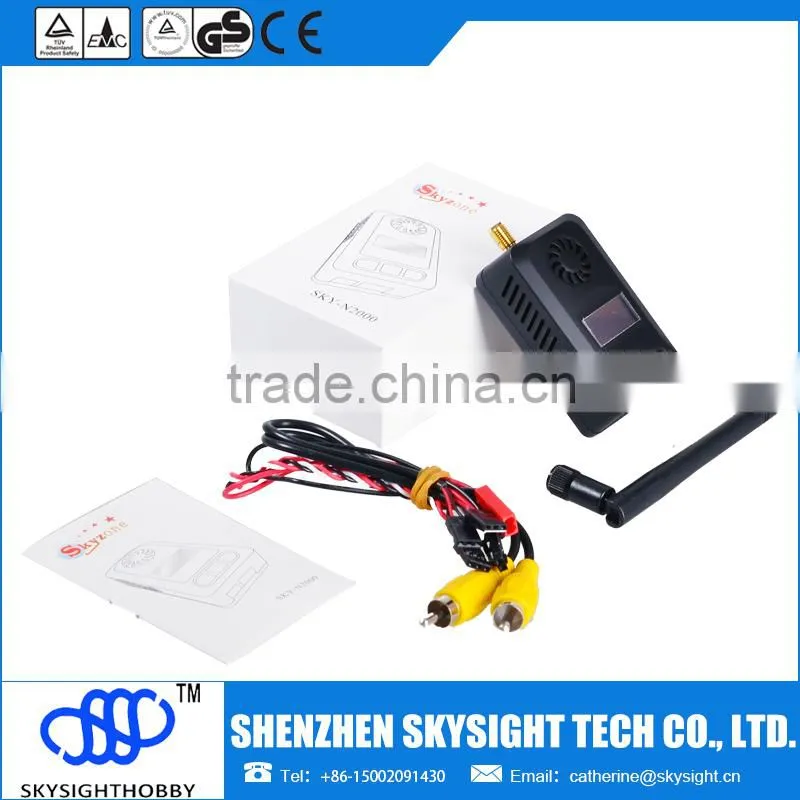

Packing Accessories List
- 1 x 5.8G 2000mW FPV transmitter
- 1 x Stock dipole whip antenna
- 1 x Power in harness
- 1 x Power out Video out Audio out harness
Product Show:
