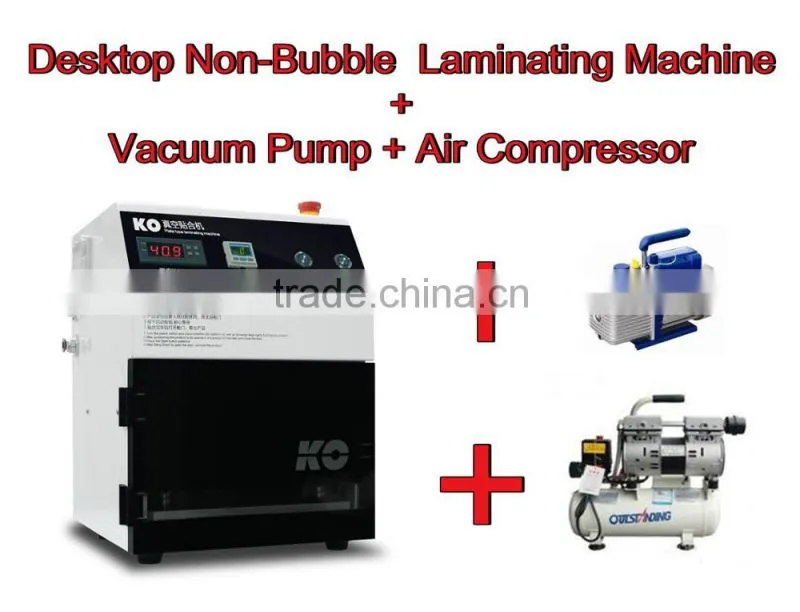

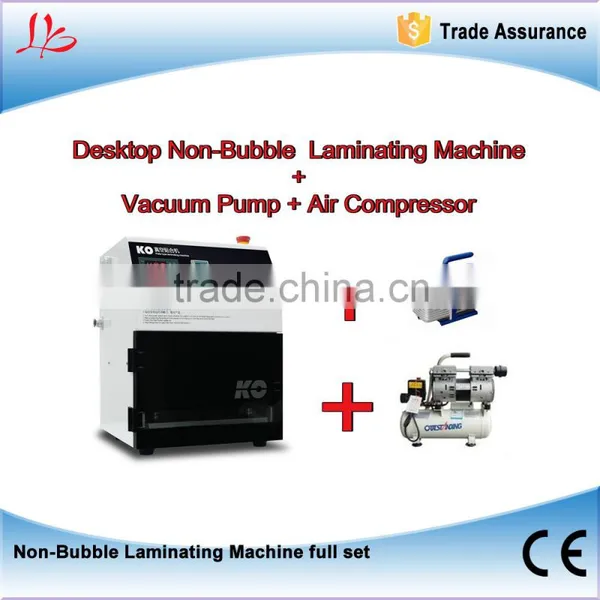

Desktop Non Bubble Laminating Machine full set with Vacuum Pump and Air Compressor

Suitable for capacitive touch screen Cover plate (Cover Lens) and functional Glass Sensor (Glass) of OCA laminating process; Apply to the Touch screen (Touch Panel) and liquid crystal module (LCD Panel) of the OCA laminating process, at the same time can also be applied to other areas of membrane, glass to glass (glass) of hard in hard OCA laminating process.

Characteristics of the equipment:

No mold, no bubble;

Equipment imported from Japan SMC pneumatic components

A key to start, easy to operate;

Japan thermostat, the temperature can be accurate to ± 1 ° C

Japanese precision pressure regulator, pressure ± 0.001Mpa

Flat lamination way, the overall lamination, smooth uniform pressure, no stress concentration, no color pattern after lamination, no indentation, LCD chaos color, smaller convenient transportation.

Equipment technical parameters:

Device Power: AC220V 1500W power supply optional AC110V, AC220V, AC380V

Working pressure :0.4-0 .6 Mpa

Work environment :20-23 ° C, clean, dust-free

Fitting way: flat lamination

Productivity: 50s/1pcs

Heating mode: heating thermostat

Adapt Size: 7 "(according to customer requirements)

Equipment size: 320 * 292 * 370mm

Machine Weight: about 25kg (Packed by Wooden box for a safety shipping)

------------------------------------------

Pump Weight: about 30kg

14.4m3/hour.

4L/S

Max.P. 2 Pa

Max oil:800ml

Size:395*145*257mm

------------------------------------------

Compressor Weight about 30kg

Voltage:220V

Power(W)                            550
Cylinder(mm)                     63.7x11.8X2
Speed(r.p.m.)                     1380
Pressure(Bar)                    7.0
Capacity(L/min)             40
Tank(L)                            8
N.W.(kg)                             20kg

Size(LxWxHcm)   35x35x30cm

------------------------------------------

Equipment application:

This Vacuum laminating machine Suitable for capacitive touch screen Cover plate (Cover Lens) and functional Glass Sensor (Glass) of OCA laminating process; Apply to the Touch screen (Touch Panel) and liquid crystal module (LCD Panel) of the OCA laminating process, at the same time can also be applied to other areas of membrane, glass to glass (glass) of hard in hard OCA laminating process.

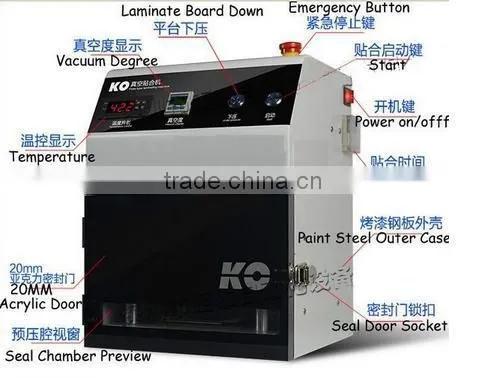

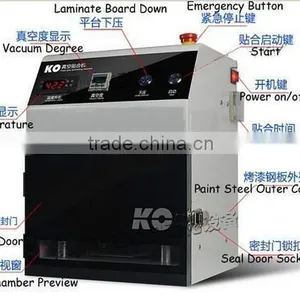

Characteristics of the equipment:

* Vacuum Laminating Machine, No need mold, almost no bubble;

* Equipment imported from Japan SMC pneumatic components

* A key to start, easy to operate;
* Japan thermostat, the temperature can be accurate to ± 1 ° C
* Japanese precision pressure regulator, pressure ± 0.001Mpa
* Flat lamination way, the overall lamination, smooth uniform pressure, no stress concentration,

Equipment technical parameters:

Device Power: AC220V 1500W power supply optional AC110V, AC220V, AC380V
Working pressure :0.4-0 .6 Mpa
Work environment :20-23° C, clean, dust-free
Fitting way: flat lamination
Productivity: 50s/1pcs
Heating mode: heating thermostat
Adapt Size: 6 "(according to customer requirements)
Equipment size: 320 * 292 * 370mm
Weight: Machine about 39kg

Tips:

1. This Vacuum Laminating Machine need to used with Vacuum Pump and Air Compressor together.

2.  For Vacuum Laminating Machine, both 220V and 110V are available. Please leave message which voltage machine you need.

3.  Demo Video will be provided. Vacuum Laminating Machinewill be packed by Wooden box for a safety shipping.

4. We sell whole set other OCA machine too(Such as separate machine, glue remove machine, oca film laminator, bubble autoclave machine etc and all acceossories), Please contact us if any concerns.

Vacuum Laminating Machine will be tested and pre-setting before ship out, no need to setup~

This Vacuum Laminating Machine NO NEED REMOVE BUBBLE~

Video:

/watch?v=tcD5ghLK0dI&feature=youtu.be

1.We provide you the friendly English User manual or operating videos for free.

 2.24 hours technical support by email or calling.

 3.Warranty: 1 year free, 2-3 years cost price and free technical support always.

 4.Free training to make sure you master the operating of our products.

 5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.

USBearth business group is located in Shenzhen, China.

Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .

We has 10 years experiences in manufacturing and foreigh trade

Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …

CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.

1) This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.
