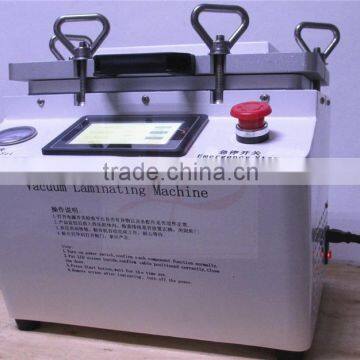

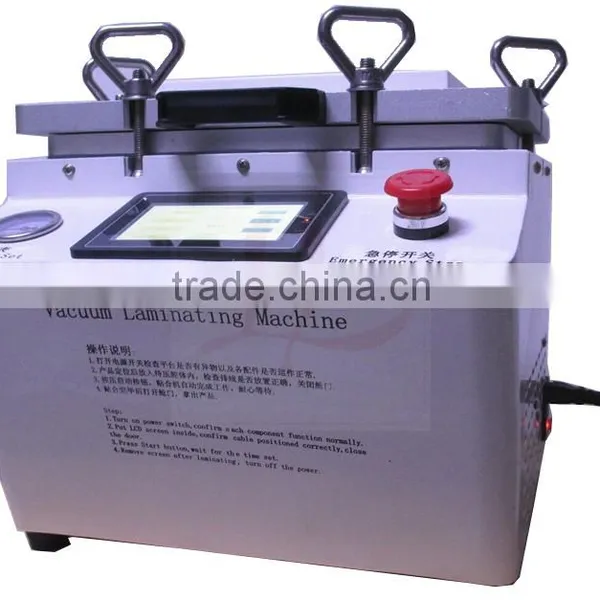

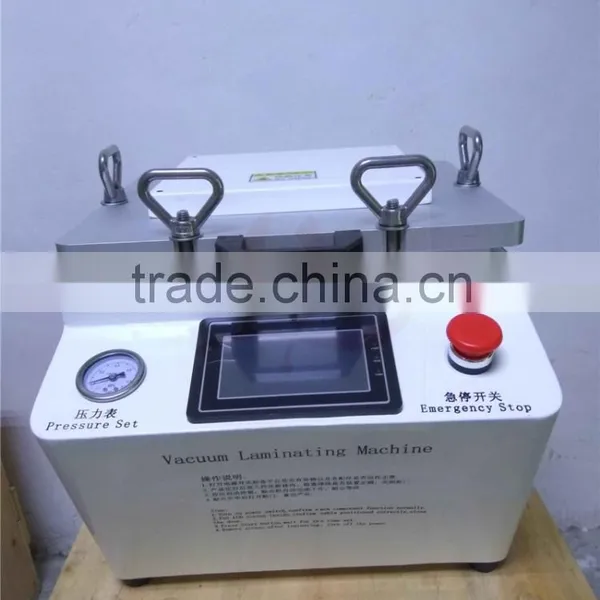

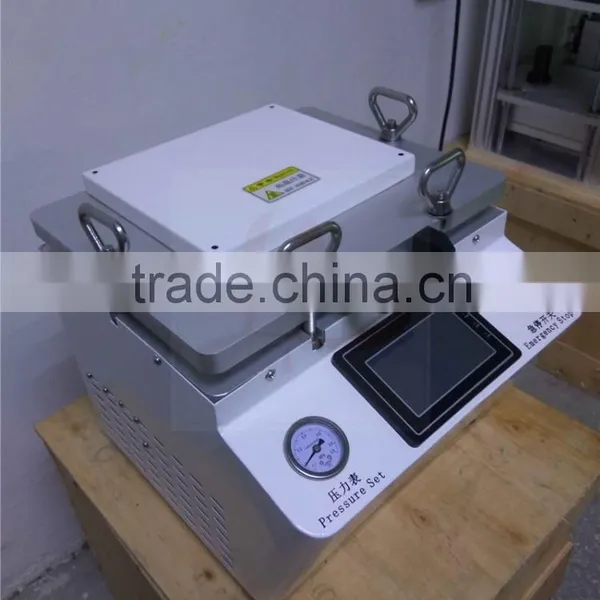

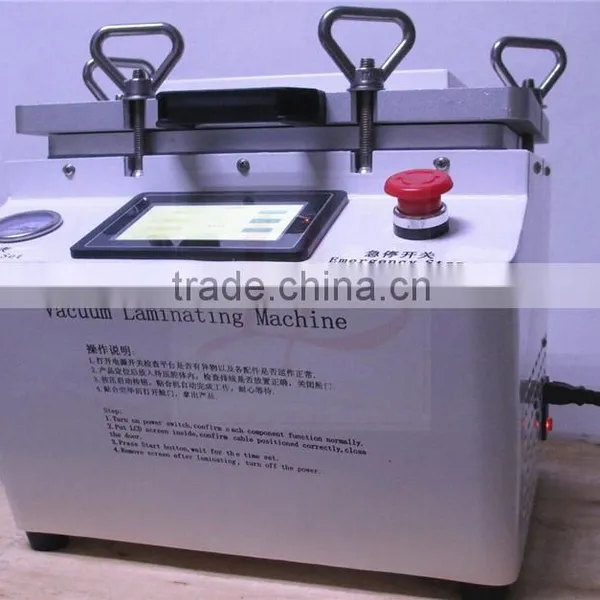

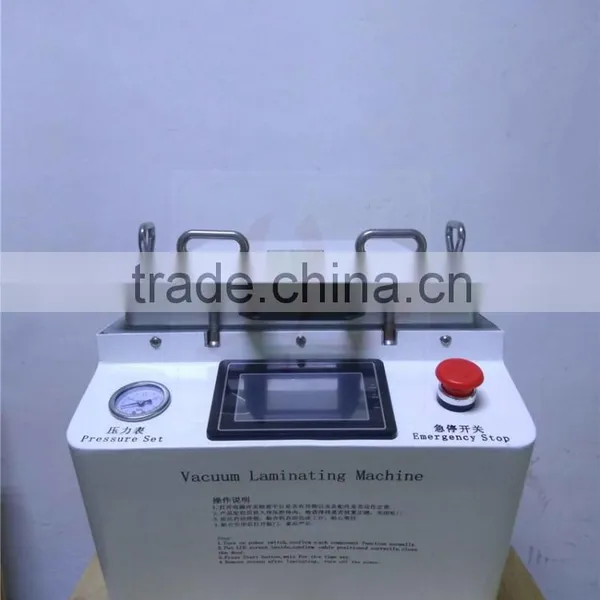

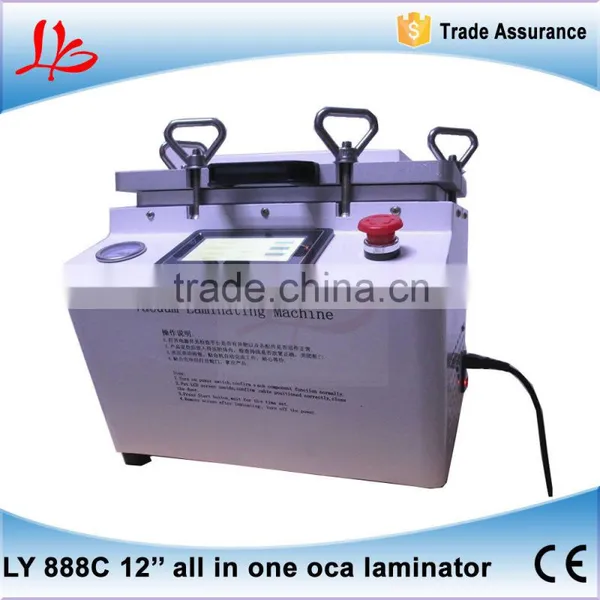

All in one LY 888C 12 inch OCA laminator,Simple to use
Structure & specs

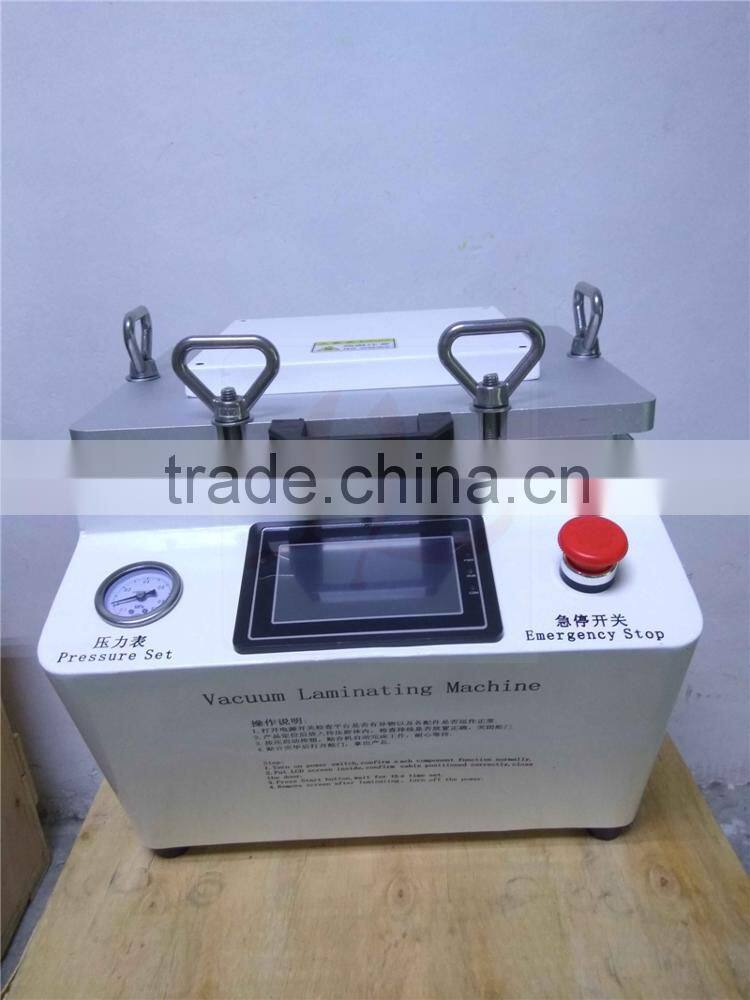

1.Main structure
The main structure consists of body frame, body cavity portion, locking device, control system, heating devices and other components. With continuous operation, easy to operate and so on
2.Main specification
WORKING SIZE(MAX) |
WEIGHT |
MACHINE SIZE |
VOLTAGE |
POWER |
12 INCH |
26 KG |
42*40*38 cm |
110-220V |
1500 w |
INSTALLATION
1. Connect the power outlet, turn on the power switch

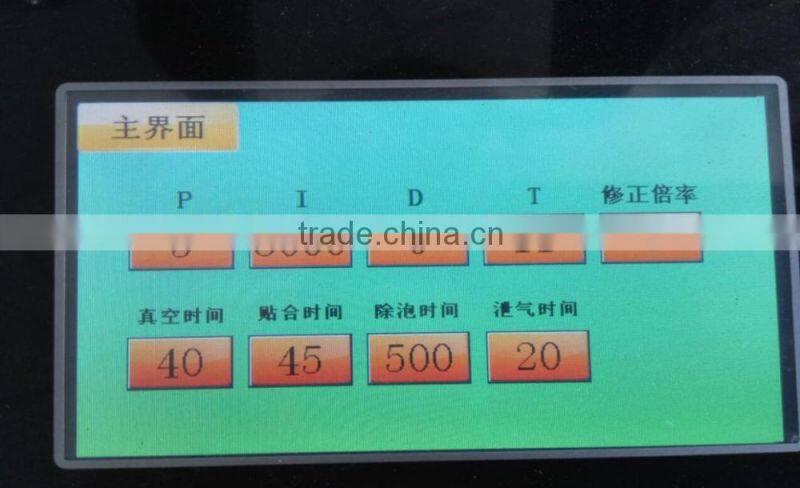

1.Set OCA & Defoam specification
RE:Time set (40-45s)
OCA time(40-50s)
Defoam time(500-600S)
Other specs don’t need to modify or change!!

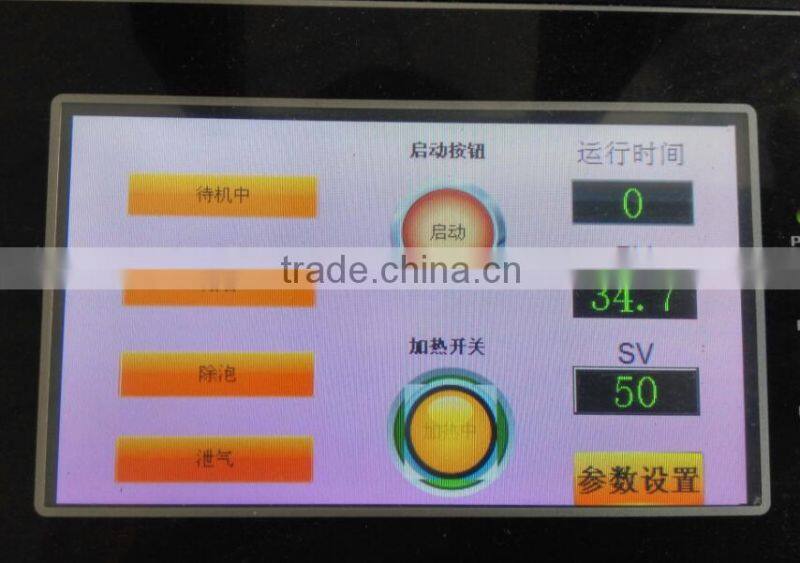

Back to the home page, press “heat” and “Start”, so that the machine will heat, and will reach setting temperature(Usually set range SV=45-50)

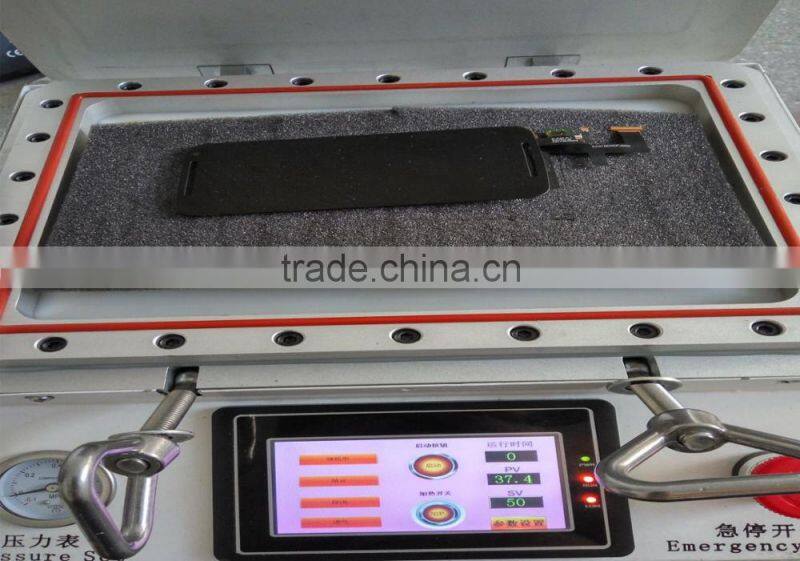

1.Open six bolts, check the cabin whether have extra items,put repair the LCD screen on black sponge mat, glass cover turn up, averagely tighten the six bolts.

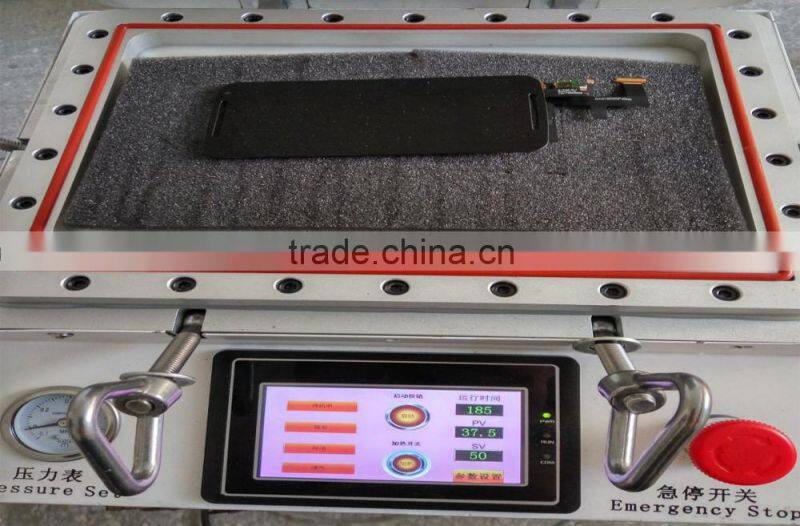

Press “Start” to Run,the tighten again 6 bolts,make sure no gass leak out..

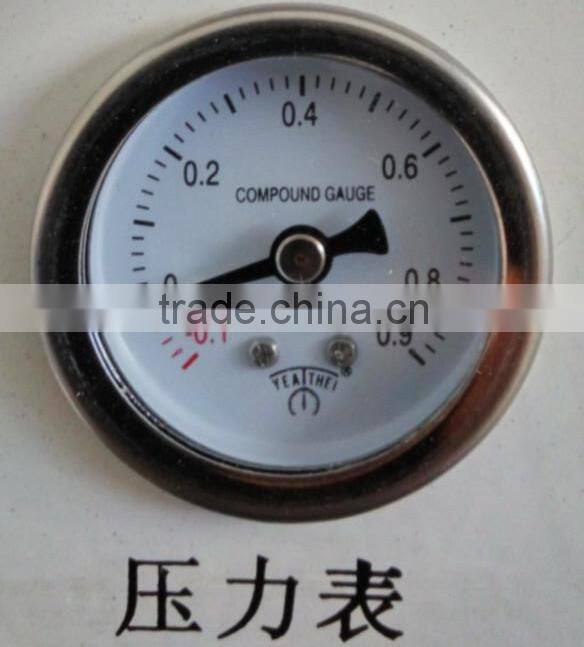

Wait machine run,machine pressure panel will turn to “0” as below
When all time run out,and all procedures completed,then averagely screw up 6 bolts,pull LCD screen out
RE:When pressure needle point to 0,then can open the up case.
1.Safety, operation, and maintenance considerations
2.For safe use of this device to avoid personal injury accident,
3.Be sure to carefully understand the paste around the machine identification
4.(A) safety guide
5.When the safety signs are missing or not clear, should I buy the appropriate safety signs.
6.(B) Equipment Precautions
7.1. This device may only be familiar with equipment performance and operational knowledge relevant safety personnel to operate, maintain and repair
8.2. Before using this equipment shall be grounded, placed by professionals leakage protection
9.3. When starting lights, open the top cover is strictly prohibited
10.4. The safety device is not stopped before the operation is prohibited equipment cleaning, maintenance, maintenance
11.5. The temperature regulation is prohibited above 60ºC
Before OCA, cannot leave gass between cover & LCD screen.

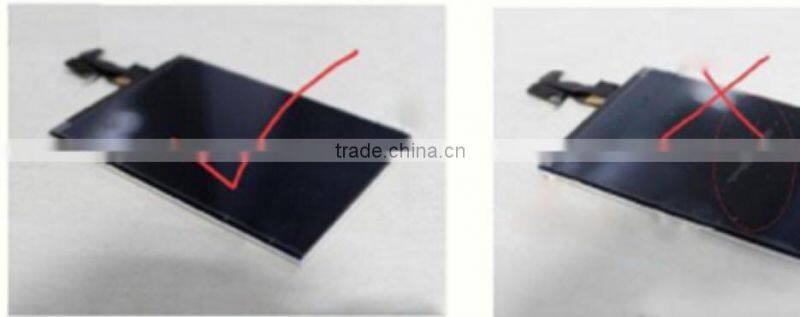

If back of LCD screen have flex cable,must flat it,then can do OCA process.maintenance, maintenance considerations
Be sure to check the power switch 1. Before startup
Before work check cabin,make sure clear and no extra items inside.
The timing of the fastening bolt lubricate
Packing lsit:
1. The machine x 1
2. Power Cord x 1
3.Manual x 1
4.Silicon mat x 1
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
