Type Airplane
Power Other, Battery, 2000mw
Material Other, Aluminium
Scale Other, fpv receiver transmitter
Radio Control Style RC Hobby
Place of Origin Guangdong, China
Brand Name SKYSIGHTHOBBY
Model Number D58-2+SKY-52W

  D58-2 5.8Ghz 32CH Wireless AV FPV Diversity Receiver + SKY-52W FPV 5.8G 2000mW A/V Long Range Transmitter for fpv goggleD58-2 5.8Ghz 32CH Wireless AV FPV Diversity Receiver + SKY-52W FPV 5.8G 2W A/V Long Range Transmitter for fpv goggle

D58-2 DUO5800 5.8Ghz 32CH Wireless AV FPV Diversity Receiver

Product Description



Specification of D58-2 FPV receiver:

  1. Video Output: 75Ω/1Vp-p
  2. Audio Output: 10KΩ/500mVp-p
  3. TV System: PAL/NTSC/SECAM
  4. Input Voltage: 12V/500mA
  5. Antenna connection:SMA
  6. Input voltage range: 12V (3S lipo)
  7. Dimensions: 76x64x18mm
  8. Weight: 90g
Features of D58-2 FPV receiver:
  1. Twin fpv Receiver for best reception
  2. Automatic Antenna Switching
  3. Triple, buffered AV outputs
  4. Can receive 2 different channels at the same time
  5. Not affect by 2.4GHz R/C Radios
  6. AV Receiver with Diversity inputs
  7. Small, light weight,durable,anodized aluminum case

Package Included:

  1. D58-2 Dual Diversity Receiver*1
  2. Power Cable*1
  3. AV Cable*2
  4. Antenna*2

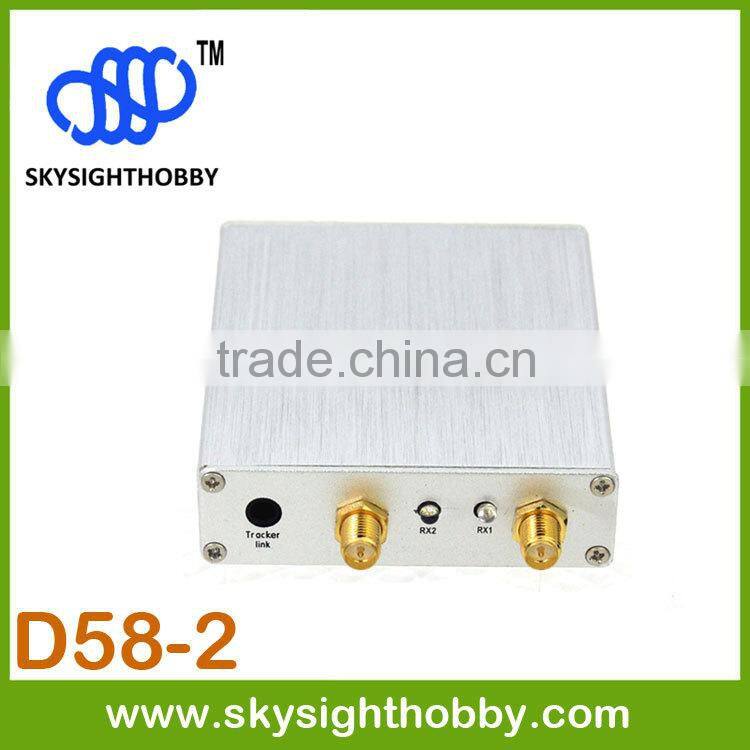

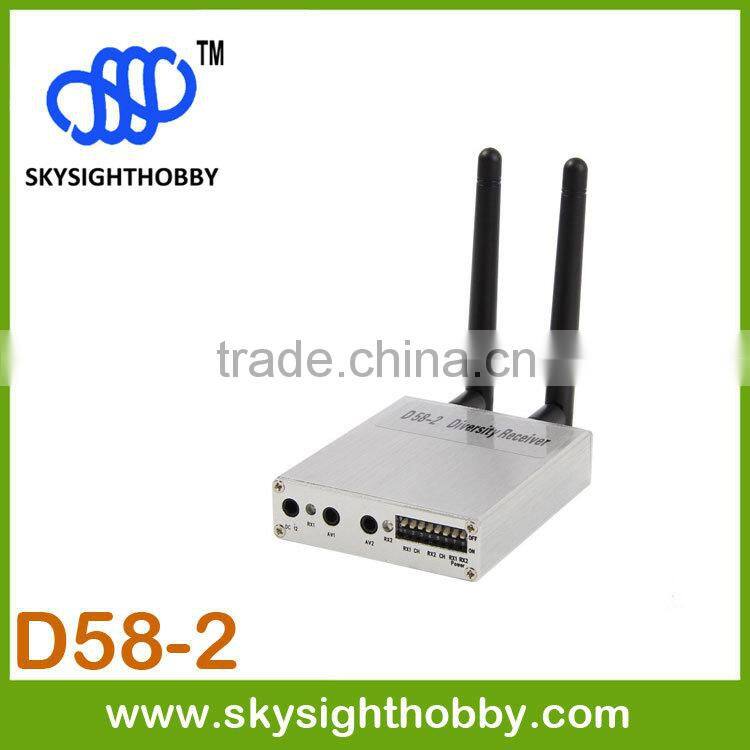

Picture of D58-2

D58-2 5.8Ghz 32CH Wireless AV FPV Diversity Receiver + SKY-52W FPV 5.8G 2W A/V Long Range Transmitter for fpv goggleD58-2 5.8Ghz 32CH Wireless AV FPV Diversity Receiver + SKY-52W FPV 5.8G 2W A/V Long Range Transmitter for fpv goggleSKY-52W FPV 5.8G 2000mW A/V Long Range Transmitter  for RC Airplane Helicopter Quadcopter/Multicopter

Features of fpv transmitter

  1. 5.8G 2000mw fpv transmitter is powerful transmitter with fan,it is compatible with all our 5.8G RX like RC305, RC805 , RC832, D58-2,D58-4, RC701,AIO goggles and 5.8G DVR DV01S.
  2. 2Ch Video Input, Switch between 2 cameras with the Remote Control
  3. Switch between Frequency Channels with the Remote Control
  4. S-CH and S-V are connected to the Remote Control.
  5. S-CH is Frequency Channel (CH is useless when S-CH connected) and S-V is Video Channel.
  6. VID1,VID2 is the 2Ch Video input which switch by the Remote Control
  7. V is video input (Please connect it when operate without Remote Control). R,L is audio input



Specificaitons of fpv transmitter

  1. fpv Transmitter frequency:5645-5945MHz;8CH
  2. Transmitting Power:2000mW
  3. Transmitting distance:>10km(open area)
  4. Frequency control:built-in frequency and phase lock loop
  5. AV input:2ch Videoinput
  6. ANT connector:SMA
  7. power supply:7-24 volts
  8. Size:78*42*20mm
  9. Weight:54g(no cable and antenna)

Package Detail:

  1. FPV Transmitter 2W*1
  2. Antenna*1
  3. Videoin cable*2
  4. Control cable*2
  5. AV cable*1
  6. frequency table:
  7.  ABCD
    15705573358655740
    25685575258455760
    35665577158255780
    45645579058055800
    55885580957855820
    65905582857655840
    75925584757455860
    85945586657255880

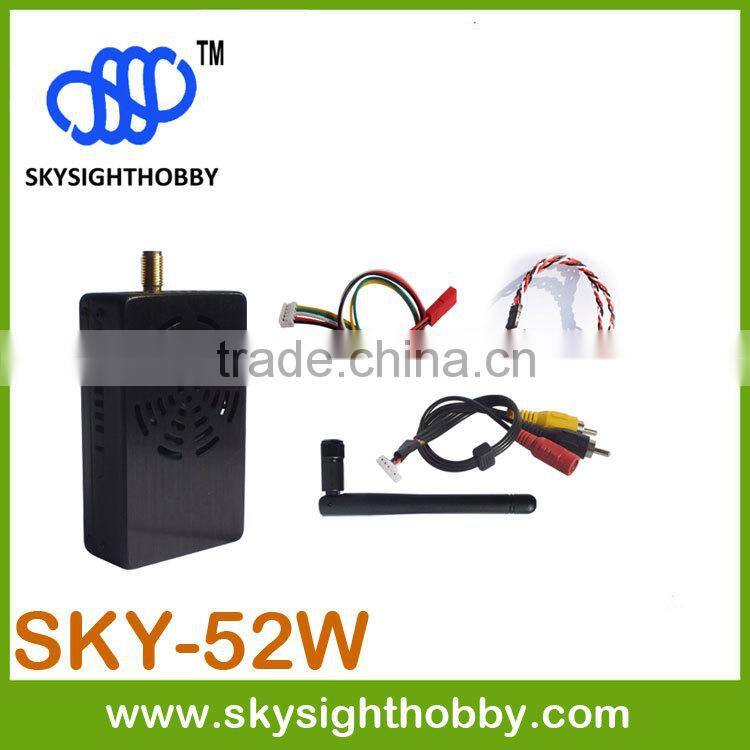

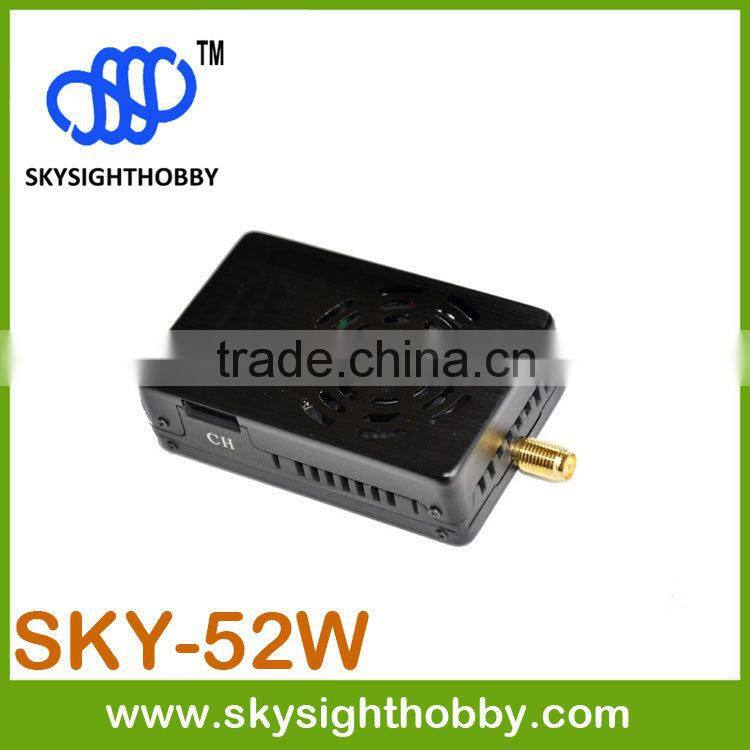

  1.  Picture of sky-52w
