Advanced Travel Luggage PC Sheet Line

FOB Price

US$ 100,000 - 180,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Sheet
Plastic Processed	Other, PC	Screw Design	Other, Three-screw
Automatic Grade	Auto	Place of Origin	Zhejiang, China
Brand Name	Xingxu	Model Number	YX-23P
Voltage	380V	Power(W)	290KW
Dimension(LWH)	18300X7000X3300MM	Weight	16.5T
Certification	ISO,CE	After-sales Service Provided	Engineers available to service machinery overseas

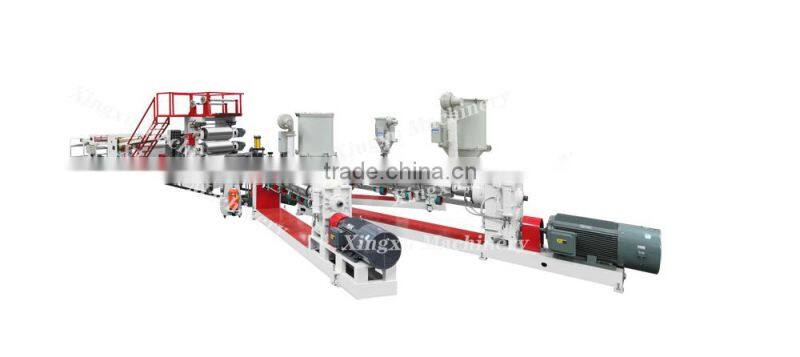

Advanced travel luggage PC sheet line

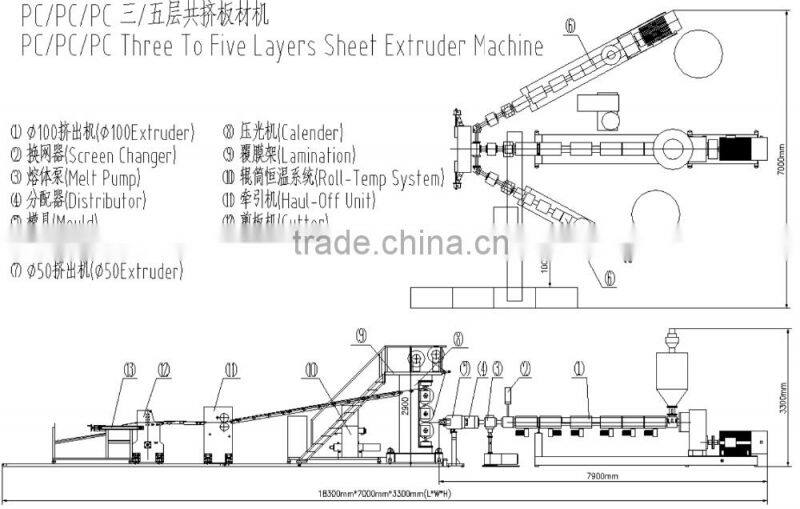

This machine is composed of Φ90 extruder,screen changer, mould, calender, lamination, roll-temp system,

haul-off unit, cutter, collection table.

Product raw material: ABS granules
Product maximum width: 900 mm
The thickness of product: 1-4 mm
The maximum extrusion yield: 200-380 kg/hr. ( around 230kg/hr)
The machine power: total machine 140 kw (heating power 63 kw), normal operation of the actual power about 100 kw
