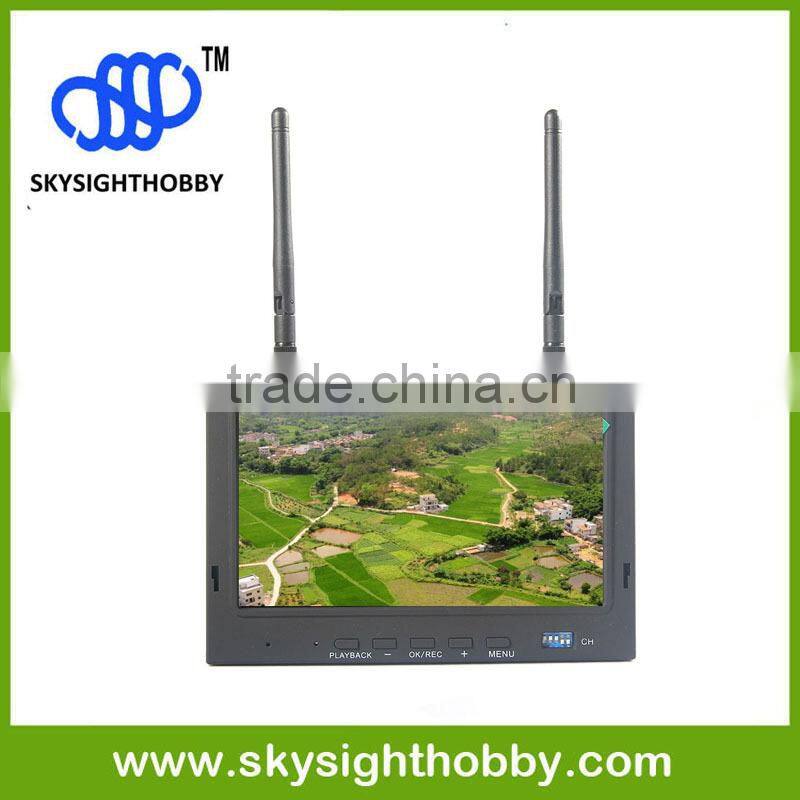

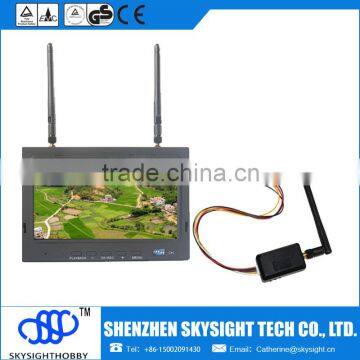

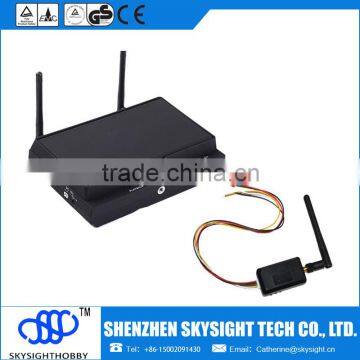

SKY-700D FPV 7 Inch TFT FPV MONITOR WITH DVR + SKY-N500 5.8ghz 32CH 500mw Transmitter

 Description of FPV MONITOR:

- This is an all-in-one 5.8GHz ground station, ready to go, just power it with a 12v power

source like a 3s LiPo battery. With the added benifit of 2 built in 32ch 5.8GHz receivers,

you can mix and match different 5.8GHz antennas to increase your video range and

coverage. The monitor will show static and won't go to blue-screen when the signal is

weak or lost, perfect for FPV.

Features of FPV MONITOR:
- Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
- Not affected by 2.4GHz R/C Radios
- AV Receiver with Diversity inputs
- Small, light weight, durable
- No Blue Screen

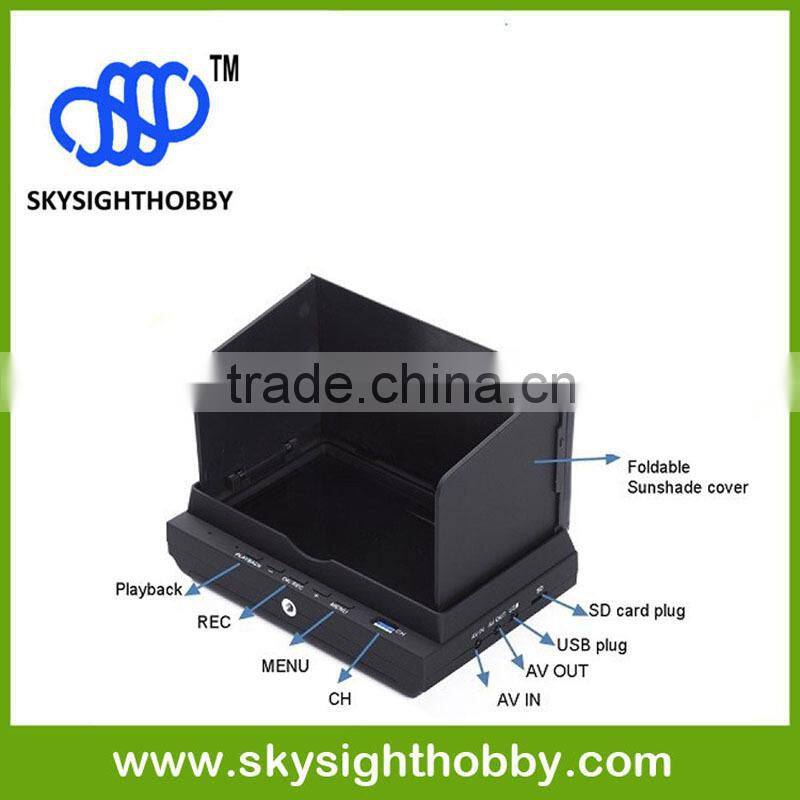

- Folding sunshade
- 2 DC port
- 4 Bands and total 32 Channels

- Dynamic image:MP4, mono audio channel

- Storage: RAM(around 128MB)/Mini SD(TF) Card(support 32GB in max)

Specification of FPV MONITOR:
- Screen size: 7"
- Screen type: TFT LCD Screen/long life, LED backlight
- Resolution: 800*480

- Storage: support TF card 32G max
- Brightness: 450cd/m2
- Contrast: 500:1
- View Angle: 140/120degree (Horizontal/Vertical)
- Working Voltage: DV 7-12V (center positive) or 11.1V Li-battery (3s) (not include the battery)
- Power Consumption: < 8w
- Size: 180mm * 120mm * 23mm
- Antenna Connection: RP-SMA (Includes 2 RP-SMA Male to SMA Female Adapters)
- Built-in 5.8Ghz Dual diversity receiver automatically for best reception
- Built-in 2CH 5.8Ghz AV output and 1CH AV input
- Support 9 languages menu selection
- Working temperature: -10degrees Celsius~+ 65degrees Celsius

Kindly remind: this is the 702 with DVR function, we called it 700D.

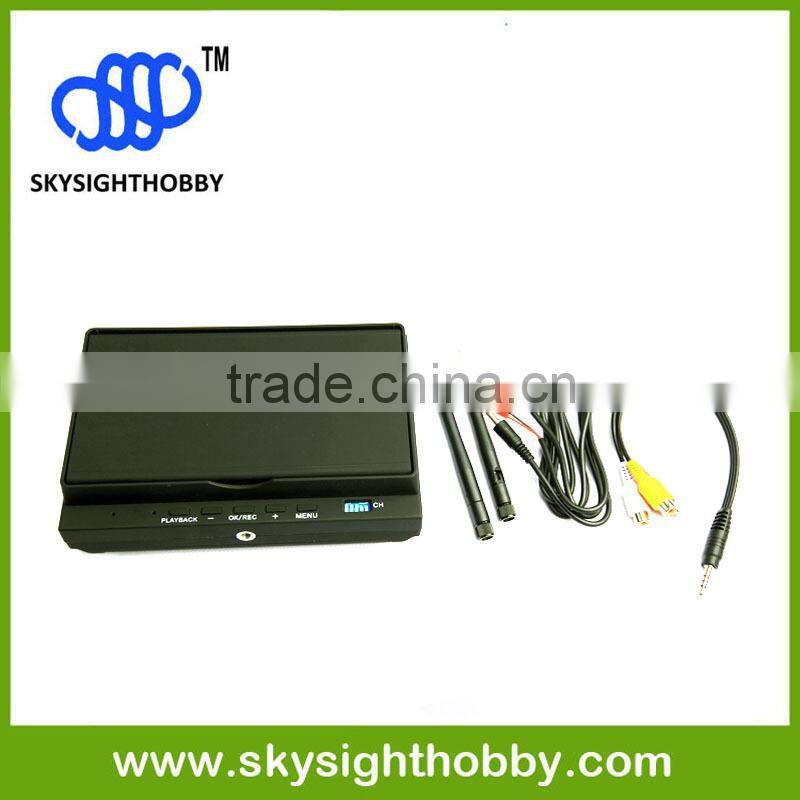

Package Detail:

• 1 x fpv transmitter (TX)
• 1 x TX antenna (2db)
• 1 x signal wire with servo type connector
• 2 x video input wires
