Skyzone SKY02 Diversity Receiver V2 AIO Head Tracking and Camera FPV 40CH 5.8G Built-in 3D/ 2D Mode Goggles RC Toy Low Shipping

Skyzone SKY02 Diversity Receiver V2 AIO Head Tracking and Camera FPV 40CH 5.8G Built-in 3D/ 2D Mode Goggles RC Toy Low Shipping thumbnail-1
Skyzone SKY02 Diversity Receiver V2 AIO Head Tracking and Camera FPV 40CH 5.8G Built-in 3D/ 2D Mode Goggles RC Toy Low Shipping photo-1
US$ 520 - 529 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Airplane
Power:
Battery
Material:
Other, ABS
Contact Supplier Request Quote Chat Now
Shenzhen Skysight Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HK/SZ
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Airplane
Power Battery
Material Other, ABS
Scale Other, 3D GOGGLES
Radio Control Style RC Hobby
Place of Origin Guangdong, China
Brand Name SKYZONE
Model Number SKY02

Skyzone New 5.8Ghz 40ch 3D AIO  FPV GOGGLES SKY02



Product Description

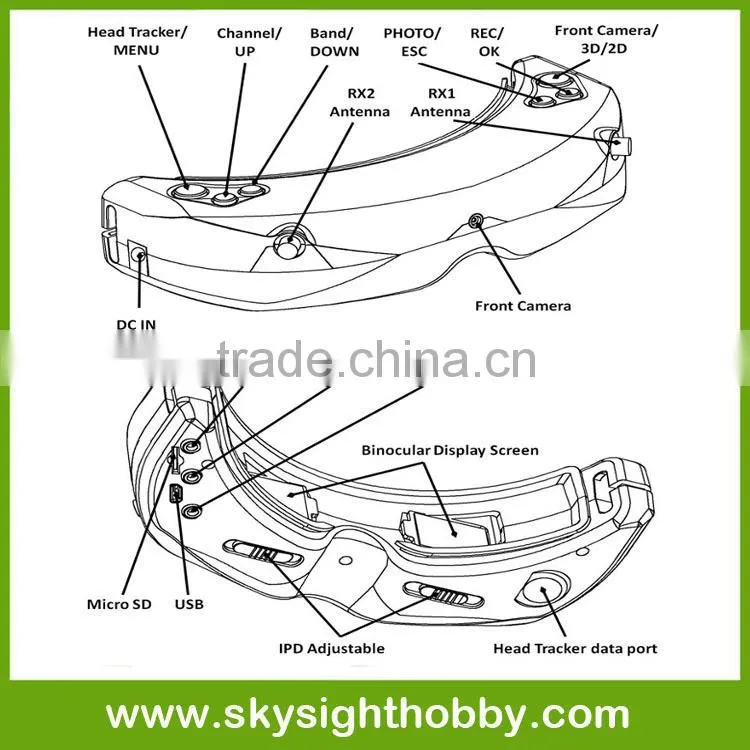

Skyzone 3D Goggles has matched their beautiful FPV view with reliability and adjustability, from the built-in 40channel dual diversity 5.8GHz receiver to the IPD and Diopter adjustments. The Skyzone 3D Goggles have full A/V ins and outs and now a built in DVR with playback.

Skyzone 3D Goggles have a front mounted camera, with a quick push of a button your view switches allowing you to perform all kinds of tasks without the need to lift the goggles. The High resolution widescreen matched with a 30 degree field of view puts you in the cockpit, the new included 3D camera and match special 600mW VTX works with the dual receivers built in giving you a true seamless 3D FPV experience.

Skyzone 3D Goggles require both 3D camera SKY301 and dual transmitter SKY201 to realize the 3D effect. The two lens 3D camera that uses the parallel shooting method will strengthen 3D vision for close-range shooting and weaken long-distance shooting.

Skyzone 3D Goggles can also work in normal diversity mode which is in 2D vision, and they are well compatible with SKY201 and most of other transmitters in the markets. (Bands Selection and Resulting Frequencies see details in Parameters)



 Specifications (SKY02)



Binocular Display

FOV

30 degrees (Diagonal)

Resolution

854X480(WVGA),  1,229,760 color sub-pixels

Brightness

350cd/

Interpupillary distance(IPD)

59-69mm Adjustable













Wireless Receiver

ISM 5.8GHz 32 Channel, Diversity receiver.

Preset Frequency

CH 1

CH2

CH3

CH4

5733M / 5771M

5752M / 5790M

5809M / 5847M

5828M / 5866M



Custom

Frequency

Band

CH 1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

A

5865M

5845M

5825M

5805M

5785M

5765M

5745M

5725M

B

5733M

5752M

5771M

5790M

5809M

5828M

5847M

5866M

E

5705M

5685M

5665M

5645M

5885M

5905M

5925M

5945M

F

5740M

5760M

5780M

5800M

5820M

5840M

5860M

5880M

Sensitivity

 -90dBm±1dBm

Antenna port

 2 X SMA,50ohm



Front Camera

FOV

60 degrees (Diagonal)

Resolution

640X480(VGA)

FOCAL LENGTH

 f=4.0mm

F/NO

 F/NO=2.8

Head Tracker

Sensor

Magnetic, Inertial and gyro

Output

 PPM 8 channel,  Optional  5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH





Record

Micro SD

 Support to 32GB

Compression

 MJPEG, 30fps, AVI


JPEG

Record rate

 6Mbps



AV Signal

Video Standard

 NTSC/PAL

Video output level

 1.0Vp-p Typ. / 75ohm

Audio output level

 1.0Vp-p Typ. / 10Kohm

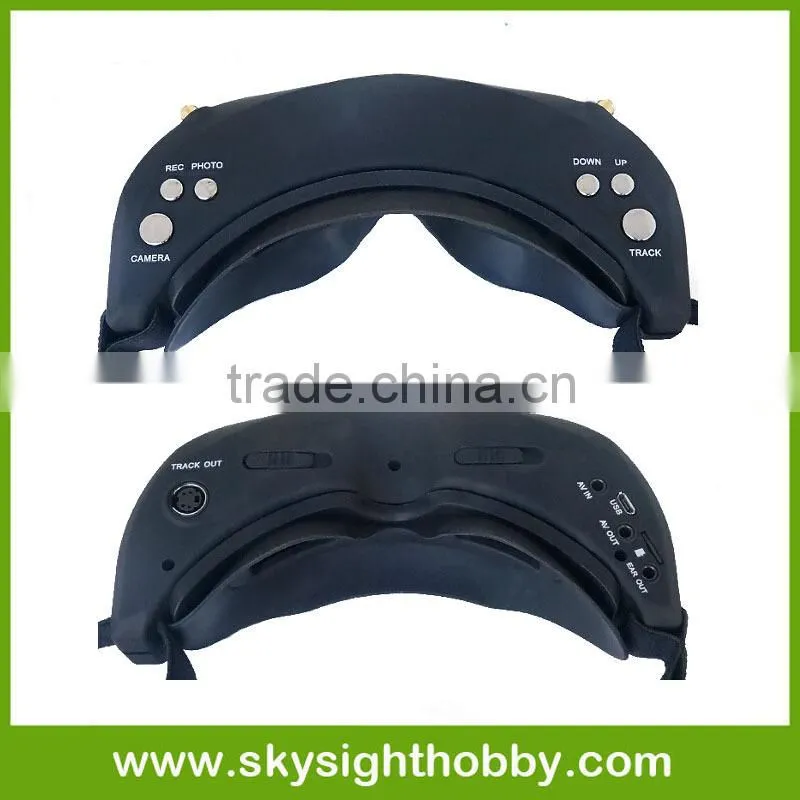

AV Port

Div. AV OUT(3.5mm4P)

 Diversity Video, Audio output

EAR OUT(3.5mm3P)

 Stereo 16Ω/150mW

AV IN(3.5mm4P)

 Video,Audio input



Power Supply

DC IN

 DC 7~26V/ 1A

Power Consumption

12V input: 5.4W

Dimensions

 168(L)X92.5(W)X41(H)mm (Not include prominent part)

Weight

   362 g

Operating Temperature

 0℃~+60℃




3D Camera SKY301 Specifications:

  • FOV: 85 Degrees (Diagonal)
  • F/NO: 3.0
  • Resolution: 720X576
  • Video Standard: PAL
  • Video output level: 1.0Vp-p Typ. / 75ohm
  • Audio output level: 2.0Vp-p Typ. / 10Kohm
  • Power supply: DC 5.0V/ 0.5A
  • Power Consumption:        1.6W
  • Dimensions:      65mm (L) X 30mm (W) X 28mm (H)
  • Operating Temperature: 0℃~+60℃

  • Parameters of 5.8ghz fpv video goggles for Rc helicopter/ 3D Goggles SKY02:
    • -600mw x2 VTX
    • -3D/2D  mode (Diversity in 2D mode)
    • -Built-in DVR with playback
    • -Built-in 32CH 5.8G receivers
    • -Built-in non-drift & self-calibrating head tracking (New 6 axis gyro, inertial and compass)
    • -Built in Dual 854X480(WVGA) Monitors
    • -Built-in external camera (640X480)
    • -AV in/AV out/Earphone socket (with volume control)
    • -Adjustable Interpupillary and Diopter for eyes
    • -Adjustable brightness and contrast
    • -Max four 3D FPV users at the same field
    • -FOV 35°

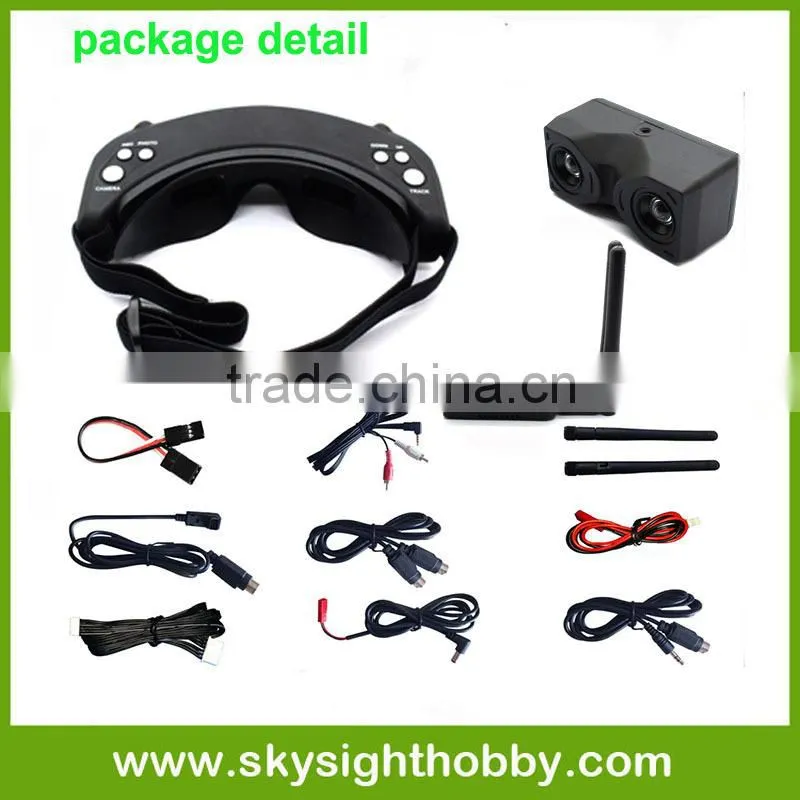

Package Indluded of ( 3D Goggles SKY02 Video Glasses):

  • 1 x 3D fpv GOGGLES
  • 1 x  SKY301 Camera
  • 1 x  SKY201 Receiver
  • 4 x 5.8G Receiver Antenna
  • 1 x FUTABA Data cable
  • 1 x JR data cable
  • 1 x WFLY data cable
  • 1 x Power cable
  • 1 x Av cable
  • 1 x 6P camera cable
  • 1 x 3P TX Remote Control Cable
  • 1 x  2P TX Power cable q
  • 1 x Carry bag



Packaging & Shipping

 Skyzone SKY02 Diversity receiver V2 AIO head tracking and camera FPV 40CH 5.8G Built-in 3D/ 2D mode Goggles RC Toy Low shipping



Product Show:

Skyzone SKY02 Diversity receiver V2 AIO head tracking and camera FPV 40CH 5.8G Built-in 3D/ 2D mode Goggles RC Toy Low shippingSkyzone SKY02 Diversity receiver V2 AIO head tracking and camera FPV 40CH 5.8G Built-in 3D/ 2D mode Goggles RC Toy Low shippingSkyzone SKY02 Diversity receiver V2 AIO head tracking and camera FPV 40CH 5.8G Built-in 3D/ 2D mode Goggles RC Toy Low shippingSkyzone SKY02 Diversity receiver V2 AIO head tracking and camera FPV 40CH 5.8G Built-in 3D/ 2D mode Goggles RC Toy Low shippingSkyzone SKY02 Diversity receiver V2 AIO head tracking and camera FPV 40CH 5.8G Built-in 3D/ 2D mode Goggles RC Toy Low shippingSkyzone SKY02 Diversity receiver V2 AIO head tracking and camera FPV 40CH 5.8G Built-in 3D/ 2D mode Goggles RC Toy Low shipping







FAQ

Shipment policy

1. All items will be shipped within 1~5 business day after payment, we will confirm the delivery time with our customer if quantity is big.

2. Usually we send the products to customers by DHL, UPS, and FedEx. If you have special request about this, please confirm with our sales in advance.

3. We will provide the tracking No.within1-2 days after delivery



Payment Policy

Now,We accept the mode of payment: PayPal, West Union and T/T.



Warranty:

All products have been checked and packaged in good condition  before dispatch

Items which have physical abuse are not covered by the warranty.
If the item is defective within 30 days, we will supply you a replacement free of charge or a full refund. Buyers require to send back the item and are responsible for return shipping cost with proper packaging.
We will replace items which are malfunctioning items for 1 year from the date you receive them . Buyer required to return the original item at his own cost. Buyer need to pay the two way shipping freight.



Why choosing Skysighthobby

Skysight is a manufactory and can provide the competitive price.

OEM and ODM are supported

Fast delivery because of big stock

Experienced sales team provides professional service for you!

High quality are required
