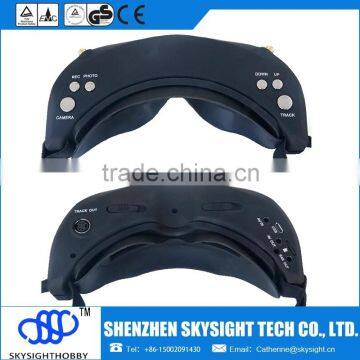

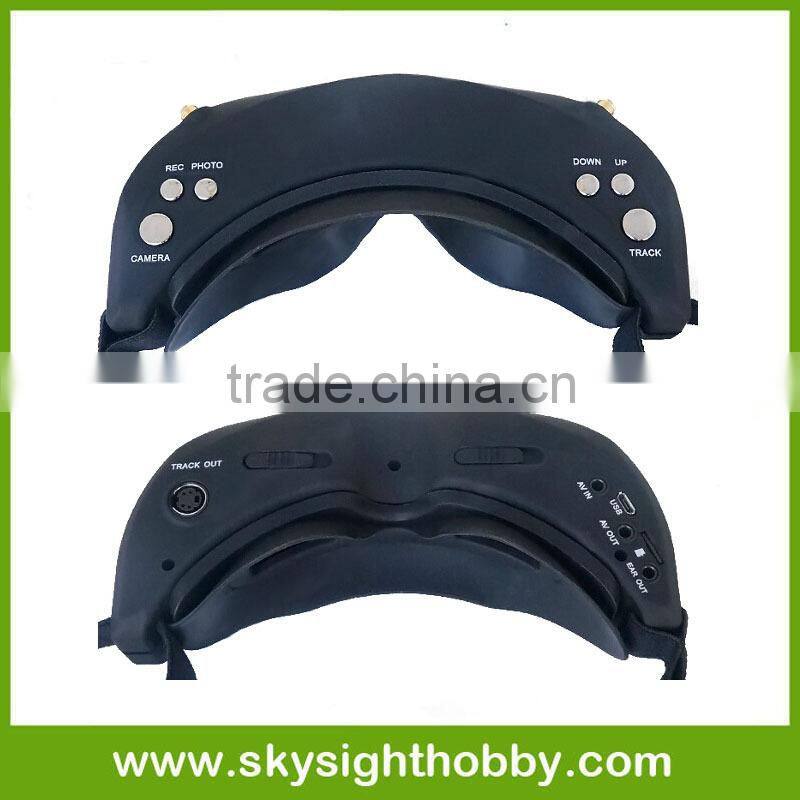

Skyzone 5.8Ghz 32CH 3D fpv goggles
Skyzone 3D Goggles has matched their beautiful FPV view with reliability and adjustability, from the built-in 32 channel dual diversity 5.8GHz receiver to the IPD and Diopter adjustments. The Skyzone 3D Goggles have full A/V ins and outs and now a built in DVR with playback.

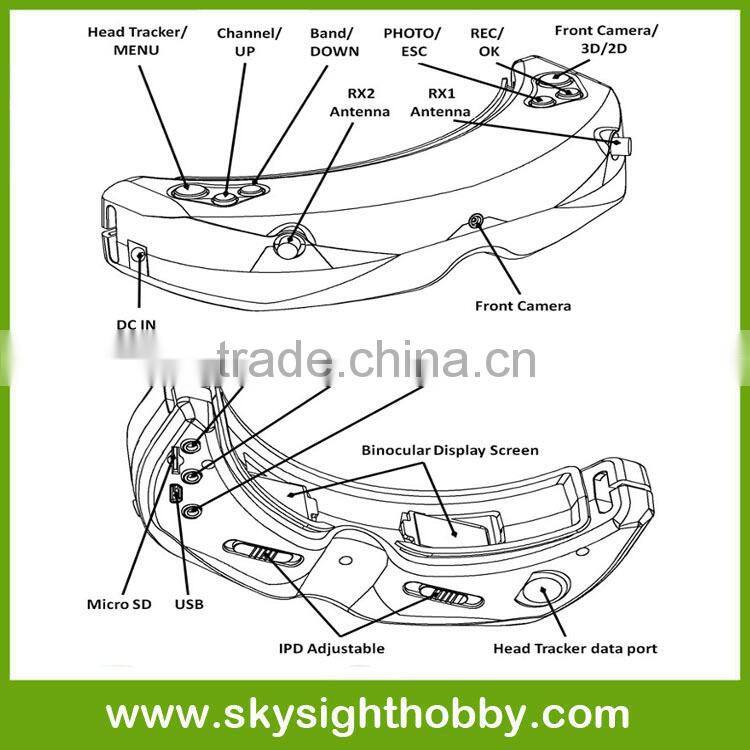

Skyzone 3D Goggles have a front mounted camera, with a quick push of a button your view switches allowing you to perform all kinds of tasks without the need to lift the goggles. The High resolution widescreen matched with a 30 degree field of view puts you in the cockpit, the new included 3D camera and match special 600mW VTX works with the dual receivers built in giving you a true seamless 3D FPV experience.

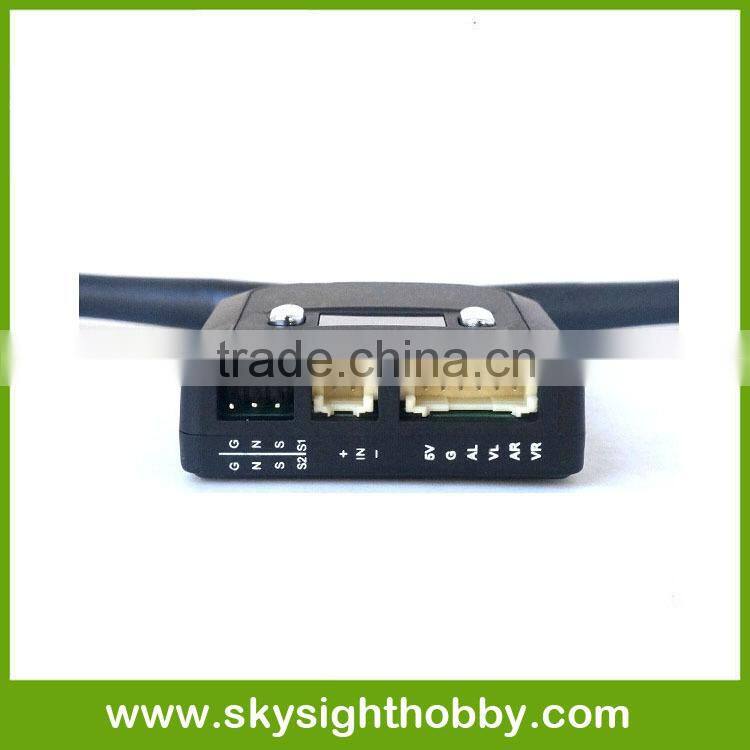

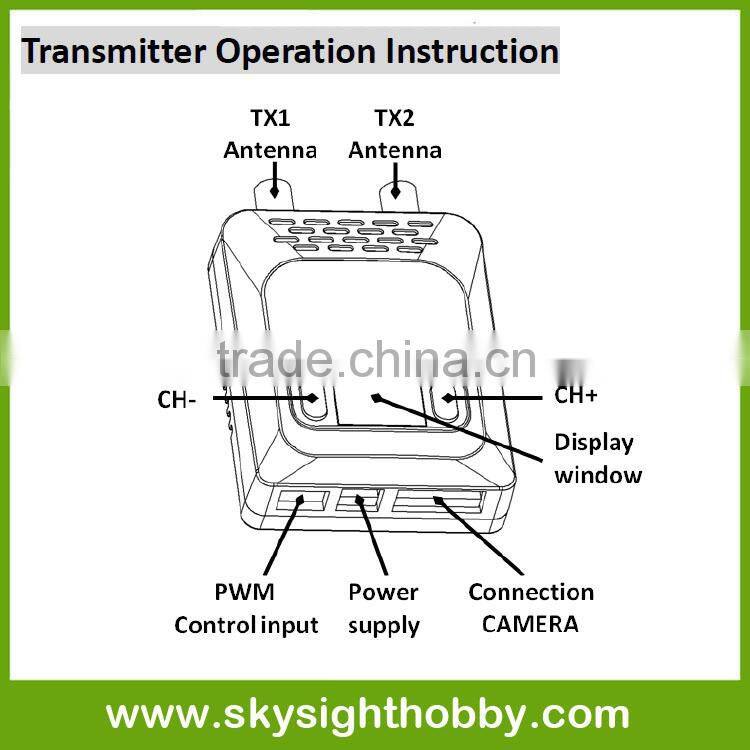

Skyzone 3D Goggles require both 3D camera SKY301 and dual transmitter SKY201 to realize the 3D effect. The two lens 3D camera that uses the parallel shooting method will strengthen 3D vision for close-range shooting and weaken long-distance shooting.
Skyzone 3D Goggles can also work in normal diversity mode which is in 2D vision, and they are well compatible with SKY201 and most of other transmitters in the markets. (Bands Selection and Resulting Frequencies see details in Parameters)
Specifications (SKY02)
Binocular Display | FOV | 30 degrees (Diagonal) | ||||||||||||
Resolution | 854X480(WVGA), 1,229,760 color sub-pixels | |||||||||||||
Brightness | 350cd/ | |||||||||||||
Interpupillary distance(IPD) | 59-69mm Adjustable | |||||||||||||
Wireless Receiver | ISM 5.8GHz 32 Channel, Diversity receiver. | |||||||||||||
Preset Frequency | CH 1 | CH2 | CH3 | CH4 | ||||||||||
5733M / 5771M | 5752M / 5790M | 5809M / 5847M | 5828M / 5866M | |||||||||||
Custom Frequency | Band | CH 1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | |||||
A | 5865M | 5845M | 5825M | 5805M | 5785M | 5765M | 5745M | 5725M | ||||||
B | 5733M | 5752M | 5771M | 5790M | 5809M | 5828M | 5847M | 5866M | ||||||
E | 5705M | 5685M | 5665M | 5645M | 5885M | 5905M | 5925M | 5945M | ||||||
F | 5740M | 5760M | 5780M | 5800M | 5820M | 5840M | 5860M | 5880M | ||||||
Sensitivity | -90dBm±1dBm | |||||||||||||
Antenna port | 2 X SMA,50ohm | |||||||||||||
Front Camera | FOV | 60 degrees (Diagonal) | ||||||||||||
Resolution | 640X480(VGA) | |||||||||||||
FOCAL LENGTH | f=4.0mm | |||||||||||||
F/NO | F/NO=2.8 | |||||||||||||
Head Tracker | Sensor | Magnetic, Inertial and gyro | ||||||||||||
Output | PPM 8 channel, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH | |||||||||||||
Record | Micro SD | Support to 32GB | ||||||||||||
Compression | MJPEG, 30fps, AVI | |||||||||||||
Picture | JPEG | |||||||||||||
Record rate | 6Mbps | |||||||||||||
AV Signal | Video Standard | NTSC/PAL | ||||||||||||
Video output level | 1.0Vp-p Typ. / 75ohm | |||||||||||||
Audio output level | 1.0Vp-p Typ. / 10Kohm | |||||||||||||
AV Port | Div. AV OUT(3.5mm4P) | Diversity Video, Audio output | ||||||||||||
EAR OUT(3.5mm3P) | Stereo 16Ω/150mW | |||||||||||||
AV IN(3.5mm4P) | Video,Audio input | |||||||||||||
Power Supply | DC IN | DC 7~26V/ 1A | ||||||||||||
Power Consumption | 12V input: 5.4W | |||||||||||||
Dimensions | 168(L)X92.5(W)X41(H)mm (Not include prominent part) | |||||||||||||
Weight | 362 g | |||||||||||||
Operating Temperature | 0℃~+60℃ | |||||||||||||
3D Camera SKY301 Specifications:
- FOV: 85 Degrees (Diagonal)
- F/NO: 3.0
- Resolution: 720X576
- Video Standard: PAL
- Video output level: 1.0Vp-p Typ. / 75ohm
- Audio output level: 2.0Vp-p Typ. / 10Kohm
- Power supply: DC 5.0V/ 0.5A
- Power Consumption: 1.6W
- Dimensions: 65mm (L) X 30mm (W) X 28mm (H)
- Operating Temperature: 0℃~+60℃
- Parameters of 5.8ghz fpv video goggles for Rc helicopter/ 3D Goggles SKY02:
- -600mw x2 VTX
- -3D/2D mode (Diversity in 2D mode)
- -Built-in DVR with playback
- -Built-in 32CH 5.8G receivers
- -Built-in non-drift & self-calibrating head tracking (New 6 axis gyro, inertial and compass)
- -Built in Dual 854X480(WVGA) Monitors
- -Built-in external camera (640X480)
- -AV in/AV out/Earphone socket (with volume control)
- -Adjustable Interpupillary and Diopter for eyes
- -Adjustable brightness and contrast
- -Max four 3D FPV users at the same field
- -FOV 35°
Package Indluded of ( 3D Goggles SKY02 Video Glasses):
- 1 x 3D fpv GOGGLES
- 1 x SKY301 Camera
- 1 x SKY201 Receiver
- 4 x 5.8G Receiver Antenna
- 1 x FUTABA Data cable
- 1 x JR data cable
- 1 x WFLY data cable
- 1 x Power cable
- 1 x Av cable
- 1 x 6P camera cable
- 1 x 3P TX Remote Control Cable
- 1 x 2P TX Power cable q
- 1 x Carry bag
Product Show:
