8 in 3 mini metal multifunctional lathe modular machine tool for wood and soft metal
Detailed Product Description

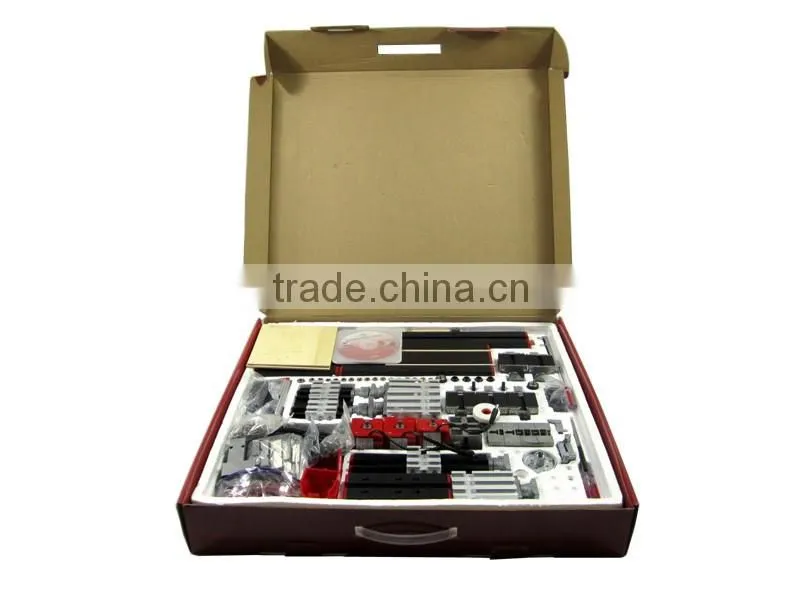

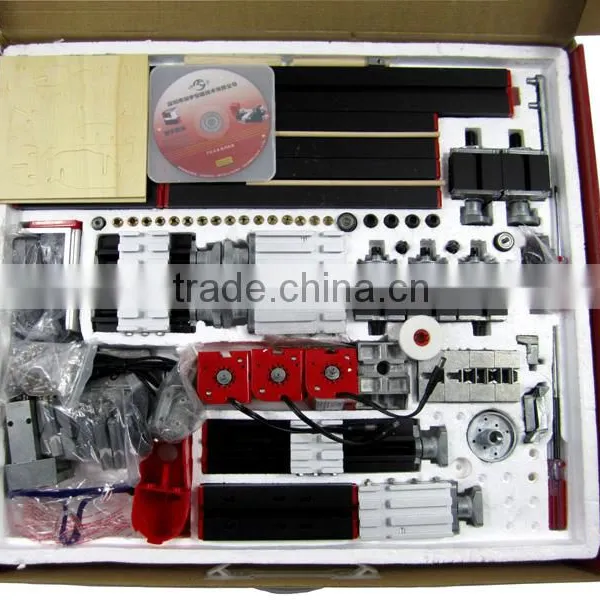

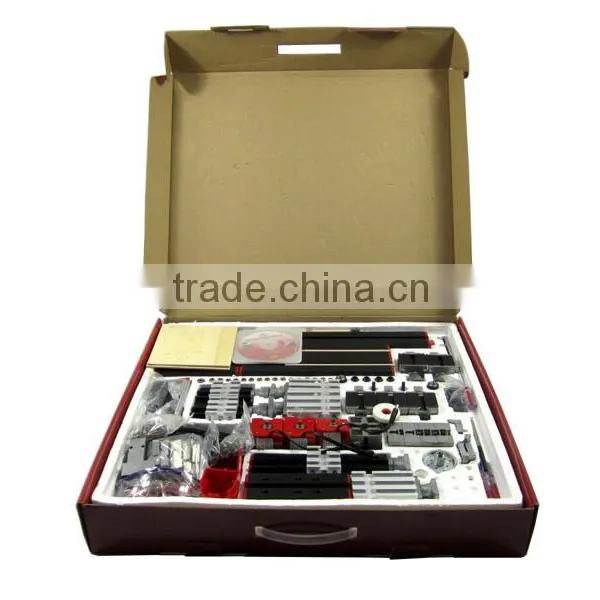

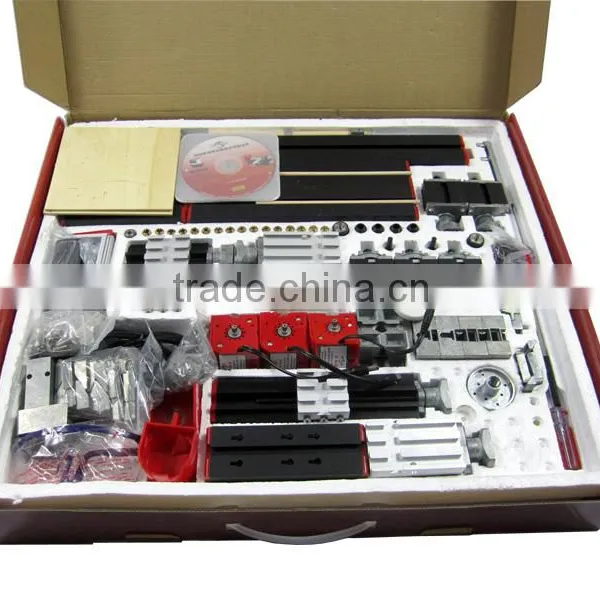

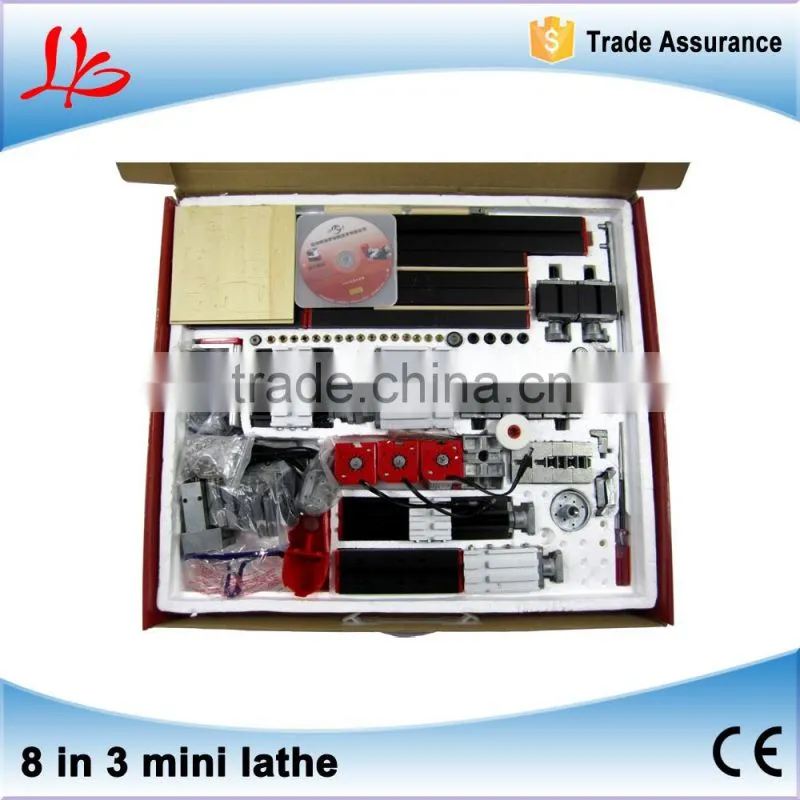

Kit machines,and can be assembled into 8 kinds of machines.
Tools for modelmaking,hobby,DIY,crafts,students.
be assembled into jigsaw, lathe, woodturning lathe, drilling machine, milling machine, sanding machine, hand-held machine,drilling machine with dividing attachment etc, and realize at least 8 functions of those machines. But it is only assembled in three of 8 kinds machines at the same time, for there are only three motors and three headstocks offered. In addition to some accessories, the kit can be assembled into specialist machines.
Drilling machine:
1. Machine main parts: spindle, tailstock, base, connection block etc.. All made of metal
2. Application: Wood, soft metal (copper, aluminum etc.) organic glass, plastic and so on
Technical parameter:
1. motor speed: 20000rpm
2. Input voltage/current/power: 12VDC/2A/24W
3. Slider working area: 30~50mm
4. Chuck: 1-6mm
5. Vise clampling size: 25~35mm
Hand-held machine tool
Machine main parts: spindle box, tailstock, base, grinding plate, connection block etc.. All made of metal
1. It is equipped with 7 standard grinding tools, wide application, easy to use, and overtemperature protection of transformer
Technial parameter:
1. motor speed: 20000rpm
2. Input voltage/current/power: 12VDC/2A/24W
3. Processing material: Wood, engineering plastics, soft metal (copper, aluminum etc.)
Lathe machine
Machine main parts: spindle, tailstock, base, connection block etc.. All made of metal
1. Center height 25mm, center distance135mm
2. Turning tool is high speed steel, can process soft metal, colored metal and precious metal. And used center block to highten, the diameter extend to 50mm
Technial parameter:
1. motor speed: 20000rpm
2. Input voltage/current/power: 12VDC/2A/24W
3. Maximum processing materials’ diameter: 20mm
4. Processing material length: 135mm
5. Processing material: Wood, soft metal (copper, aluminum etc.) organic glass, plastic and so on
Grinder:
Machine main parts: spindle box, tailstock, base, grinding machine, connection block etc.. All made of metal
1. Can be used to polish, also can be used to grind every angle
2. Center height 25mm, sandpaper granularity is 100#, select sandpaper according to different workpiece and processed surface
Technial parameter:
1. motor speed: 20000rpm
2. Input voltage/current/power: 12VDC/2A/24W
3. Working table size:123 x 100mm
4. Processing material: Wood, Engineering plastics, soft metal (copper, aluminum etc.)
Milling machine
Machine main parts: spindle, tailstock, base, slider, connection block etc.. All made of metal
1. Applicable for processing soft and hard wood
2. Can use three-jaw chuck or chuck (1-6mm) to clamp workpiece. Center height is 25mm, use center block can highten to 50mm. Center distance is 135mm
Technial parameter:
1. motor speed: 20000rpm
2. Input voltage/current/power: 12VDC/2A/24W
3. Maximum processing materials’ diameter: 45mm
4. Processing material length: 135mm
5. Processing material: Wood, Engineering plastics, soft metal (copper, aluminum etc.)
Milling machine:
1. Machine main parts: spindle, tailstock, base, slider, connection block etc.. All made of metal
2. Application: wood, soft metal (copper, aluminum etc.), organic glass, plastic and so on
Technial parameter:
1. motor speed: 20000rpm
2. Input voltage/current/power: 12VDC/2A/24W
3. slider working area: 30-50mm
4. Chuck:1-6mm
5. Vise clampling size: 25-35mm
Sawing machine:
Machine main parts: spindle box, center block, jigsaw case base, jigsaw case, jigsaw table, connection block etc.. All made of metal
1. Safe and user-friendly, even if sawtooth touch skin, it won't get hurt
2. Can cut into straight line or curve line
Technial parameter:
1. motor speed: 20000rpm
2. Input voltage/current/power: 12VDC/2A/24W
3. working table size: 90mm x 90mm
4. Maximum cutting depth is 4mm for hardwood, 7mm for tri-ply wood, 18mm for cork, 0.5mm for thin aluminum flakes, 2mm for organic glass
Dividing machine
1. Machine main parts: spindle box, tailstock, base, slider, connection block etc.. All made of metal
2. There are 36/40/48 holes in diving plate, you can select different group according to the actual deman
Technial parameter:
1. motor speed: 20000rpm
2. Input voltage/current/power: 12VDC/2A/24W
3. Processing material: Wood, Engineering plastics, soft metal (copper, aluminum etc.)
4. three-jaw chuck maximum clampling diameter is 50mm
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
