Home > Toys > Remote Control Toys > RC Car > D58-2 5.8Ghz 32CH Wireless AV Receiver With SKY-52W FPV 5.8G 2W A/V Fpv Transmitter for Dji Inspire 1

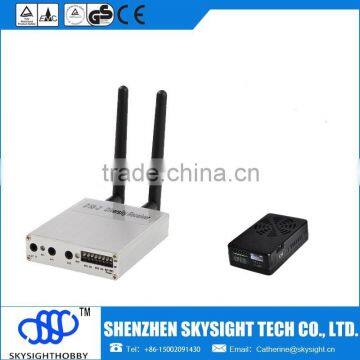

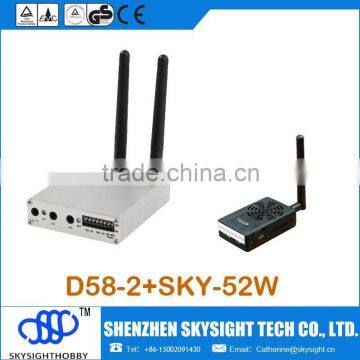

D58-2 5.8Ghz 32CH Wireless AV Receiver With SKY-52W FPV 5.8G 2W A/V Fpv Transmitter for Dji Inspire 1

D58-2 5.8Ghz 32CH Wireless AV Receiver With SKY-52W FPV 5.8G 2W A/V Fpv Transmitter for Dji Inspire 1 thumbnail-1
D58-2 5.8Ghz 32CH Wireless AV Receiver With SKY-52W FPV 5.8G 2W A/V Fpv Transmitter for Dji Inspire 1 thumbnail-2
D58-2 5.8Ghz 32CH Wireless AV Receiver With SKY-52W FPV 5.8G 2W A/V Fpv Transmitter for Dji Inspire 1 thumbnail-3
D58-2 5.8Ghz 32CH Wireless AV Receiver With SKY-52W FPV 5.8G 2W A/V Fpv Transmitter for Dji Inspire 1 photo-1
D58-2 5.8Ghz 32CH Wireless AV Receiver With SKY-52W FPV 5.8G 2W A/V Fpv Transmitter for Dji Inspire 1 photo-2
D58-2 5.8Ghz 32CH Wireless AV Receiver With SKY-52W FPV 5.8G 2W A/V Fpv Transmitter for Dji Inspire 1 photo-3
US$ 77 - 81 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Airplane
Power:
Other, Battery, 2000mw
Material:
Other, Aluminium
Contact Supplier Request Quote Chat Now
Shenzhen Skysight Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HK/SZ
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Airplane
Power Other, Battery, 2000mw
Material Other, Aluminium
Scale Other, fpv receiver transmitter
Radio Control Style RC Hobby
Place of Origin Guangdong, China
Brand Name SKYSIGHTHOBBY
Model Number D58-2+SKY-52W

D58-2 5.8Ghz 32CH Wireless AV  Receiver with  SKY-52W FPV 5.8G  2W A/V fpv Transmitter for Dji inspire 1 D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1

D58-2 DUO5800 5.8Ghz 32CH Wireless AV FPV Diversity Receiver

Product Description



Specification of D58-2 FPV receiver:

  1. Video Output: 75Ω/1Vp-p
  2. Audio Output: 10KΩ/500mVp-p
  3. TV System: PAL/NTSC/SECAM
  4. Input Voltage: 12V/500mA
  5. Antenna connection:SMA
  6. Input voltage range: 12V (3S lipo)
  7. Dimensions: 76x64x18mm
  8. Weight: 90g
Features of D58-2 FPV receiver:
  1. Twin fpv Receiver for best reception
  2. Automatic Antenna Switching
  3. Triple, buffered AV outputs
  4. Can receive 2 different channels at the same time
  5. Not affect by 2.4GHz R/C Radios
  6. AV Receiver with Diversity inputs
  7. Small, light weight,durable,anodized aluminum case

Package Included:

  1. D58-2 Dual Diversity Receiver*1
  2. Power Cable*1
  3. AV Cable*2
  4. Antenna*2

Picture of D58-2

D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1SKY-52W FPV 5.8G 2000mW A/V Long Range Transmitter  for RC Airplane Helicopter Quadcopter/Multicopter

Features of fpv transmitter

  1. 5.8G 2000mw fpv transmitter is powerful transmitter with fan,it is compatible with all our 5.8G RX like RC305, RC805 , RC832, D58-2,D58-4, RC701,AIO goggles and 5.8G DVR DV01S.
  2. 2Ch Video Input, Switch between 2 cameras with the Remote Control
  3. Switch between Frequency Channels with the Remote Control
  4. S-CH and S-V are connected to the Remote Control.
  5. S-CH is Frequency Channel (CH is useless when S-CH connected) and S-V is Video Channel.
  6. VID1,VID2 is the 2Ch Video input which switch by the Remote Control
  7. V is video input (Please connect it when operate without Remote Control). R,L is audio input



Specificaitons of fpv transmitter

  1. fpv Transmitter frequency:5645-5945MHz;8CH
  2. Transmitting Power:2000mW
  3. Transmitting distance:>10km(open area)
  4. Frequency control:built-in frequency and phase lock loop
  5. AV input:2ch Videoinput
  6. ANT connector:SMA
  7. power supply:7-24 volts
  8. Size:78*42*20mm
  9. Weight:54g(no cable and antenna)

Package Detail:

  1. FPV Transmitter 2W*1
  2. Antenna*1
  3. Videoin cable*2
  4. Control cable*2
  5. AV cable*1
  6. frequency table:
  7.   A B C D
    1 5705 5733 5865 5740
    2 5685 5752 5845 5760
    3 5665 5771 5825 5780
    4 5645 5790 5805 5800
    5 5885 5809 5785 5820
    6 5905 5828 5765 5840
    7 5925 5847 5745 5860
    8 5945 5866 5725 5880




  1.  Picture of sky-52w



D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1

Packaging & Shipping

D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1

Our Services

D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1



D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1

Company Information

D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1

FAQ

D58-2 5.8Ghz 32CH Wireless AV Receiver with SKY-52W FPV 5.8G 2W A/V fpv Transmitter for Dji inspire 1
