QS 273 8000W 72V 96V Electric Car In-Wheel Hub Motor Conversion Kits

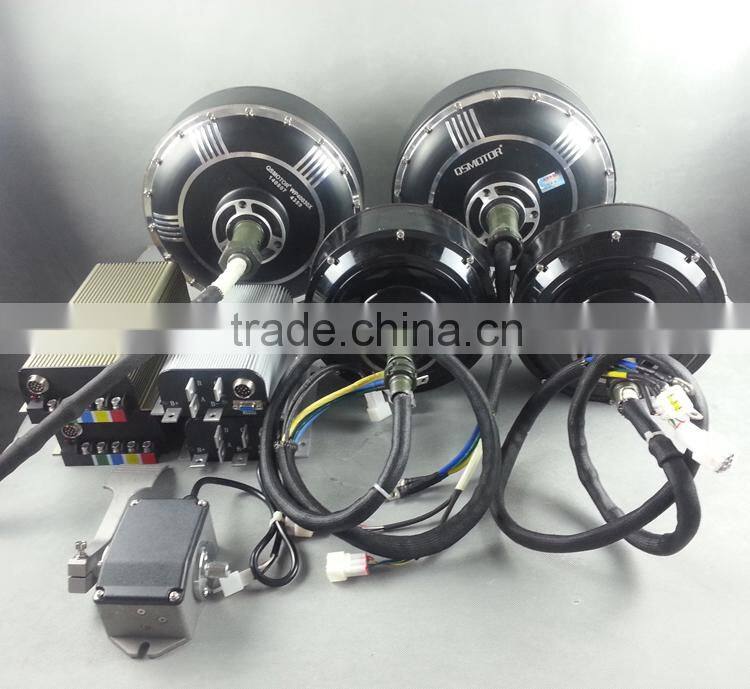

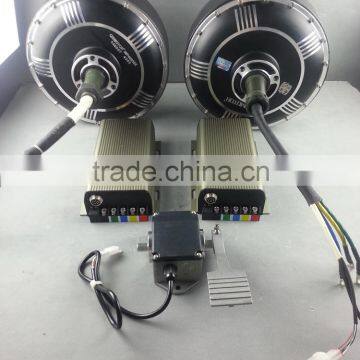

ELectric Kits:

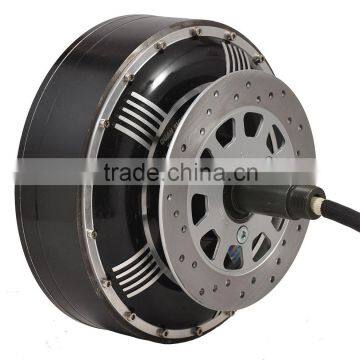

QS 273 8000W E-car In-Wheel Hub Motor
APT Controller AE96600(Sine Wave) or Kelly Controller (Square & Sine Wave)
Throttle Pedal
X8-E Electric Car Speedometer
All the kits could be changed due to requirement.
For more information, please contact with us freely.
Performance and application
The QS E-car Hub Motors are designed as in-wheel motors intended for direct drive applications.
The in-wheel motor is designed to be installed on the rear axle in vehicles, which extremely suit for mini car
& light car which total weight is less than 1400kg (include driver), it also suit for normal car maximum 80KPH.
For this application two or four motors are needed, one for each wheel. This makes it a wide range applicable electric motor from electric scooter to hybrid & concept electric cars.
The QS 273 50H V3 type in-wheel motors are synchronous motors with outer rotor and a high number of poles.
They are excited by permanent magnets.
Comparing Wheel Hub Motor with Gear Differential Motor
1. Compact design, Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2. It could be installed in wheels, and easy to be hybrid car.
3. Easily to make 4-wheel drive, which could spot turn.
4. Low Noise
5. High efficiency: 85~92%
For QS 273 E-car in-wheel hub motor in same dimension,
3000W, 4000W, 5000W, 6000W, 7000W & 8000W rated are available (from 48V to 96V). We name it base on the height of magnet steel mainly, and differ a little base on the magnet grade and motor type.
E.g. 45H V2 & 45H V3, we call it 6000W.
50H V2 & 50H V3, we call it 8000W.
QS 273 8000W 50H V3 Motor is best-selling, please refer to below link.
http://qsmotor.en.china.cn/product/60272780151-801685249/QS_8000W_273_50H_E_car_Extra_V3_Type_Hub_Motor.html

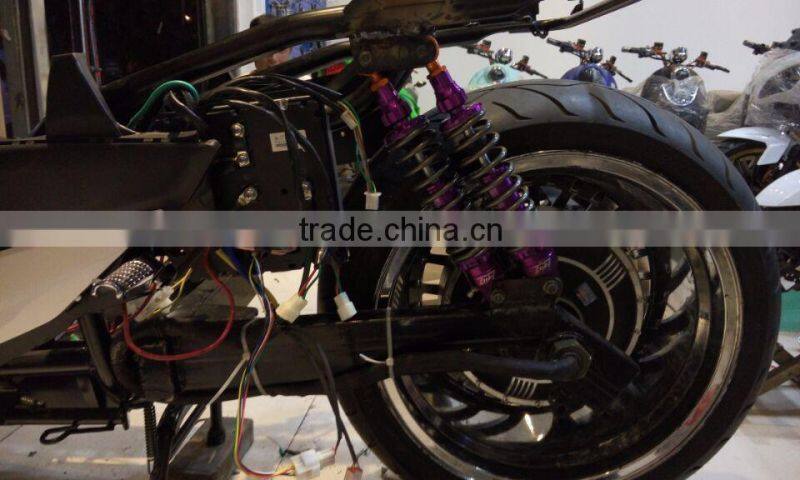

QS 273 E-car Hub Motor installed in E-scooter (protype)

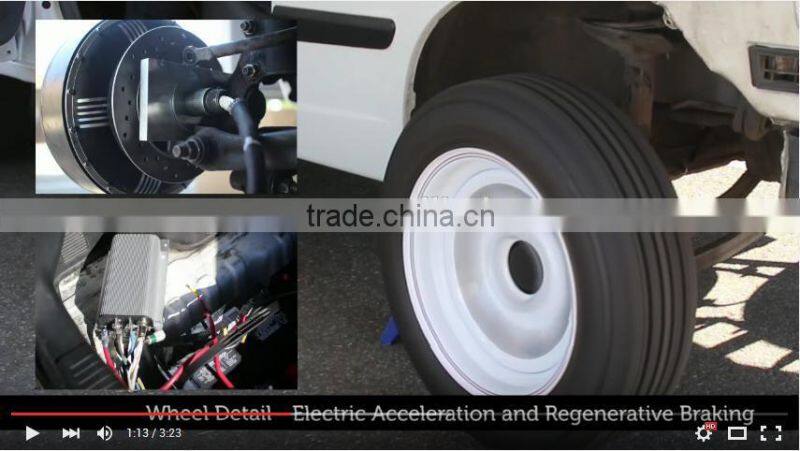

QS 273 E-car Hub Motor installed in Hybrid Car(converted)
Video: EMC Diffusion Video
/watch?v=lulGfWG6LF8
Configuration:
Engine power: 2xQS 273 8kW 50H V3 Hub Motor
Controller: 2x Kelly Controller
MAx Electric Speed: 40MPH
PS. For Normal Car, the total weight might be 1250kg.
Our Motor could work, consinder the torque, the top speed should better be less than 100KPH.

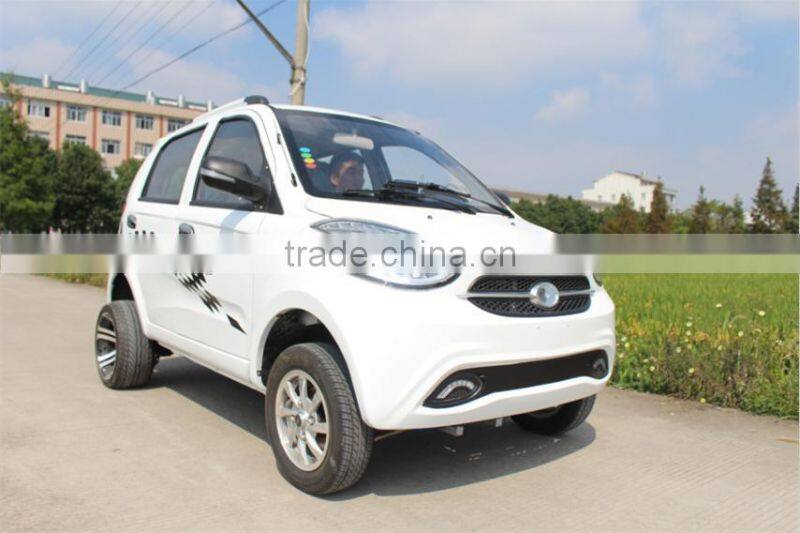

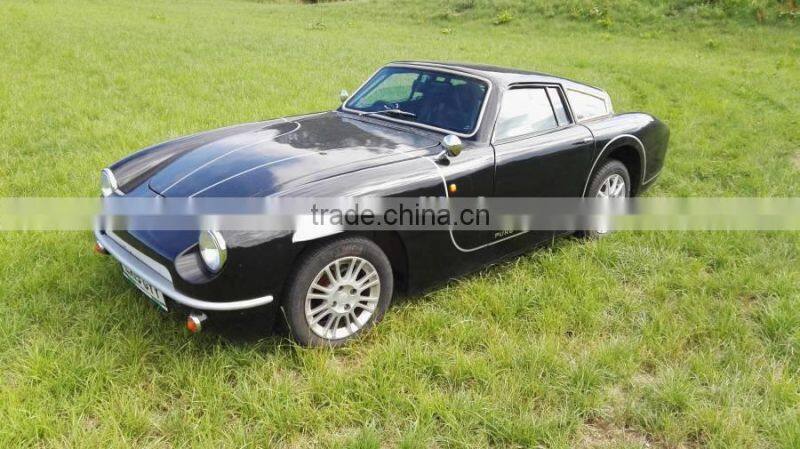

QS 273 E-car Hub Motor installed in Mini Car
Configuration:
Engine power:2x QS 273 6kW 45H V3 Hub Motor 1000RPM 72V
Controller: 2x Lingbo Controller LB72502 (Sine Wave)
MAX Electric Speed: 70KPH
Video: TBD (To be determined)

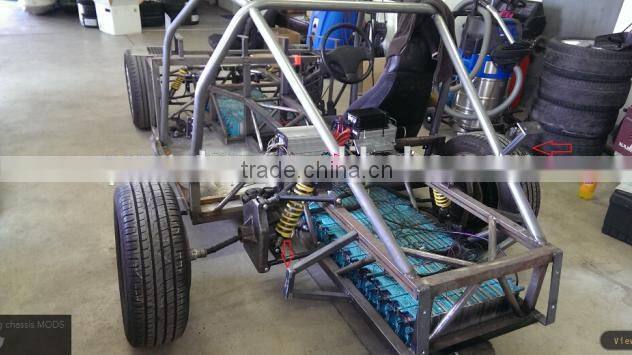

QS 273 E-car Hub Motor installed in EV (protype)
Configuration:
Curb weight (with a driver): 800kg Speed:100-110km/h (2 Wheel Motor)
Engine power:2xQS 273 8kW 50H V3 1250RPM 96V PCD 5*112mm, CB 60mm
Controller: 2x APT Controller AE96600W (Sine Wave) Battery: 96V200Ah LiFePO4
Rear wheel disk: R14/15

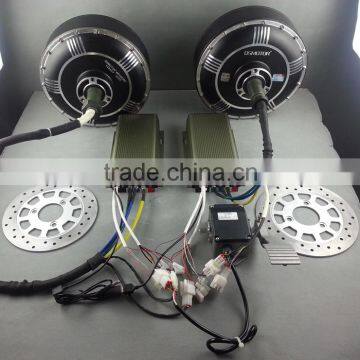

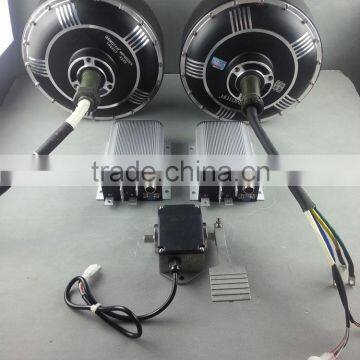

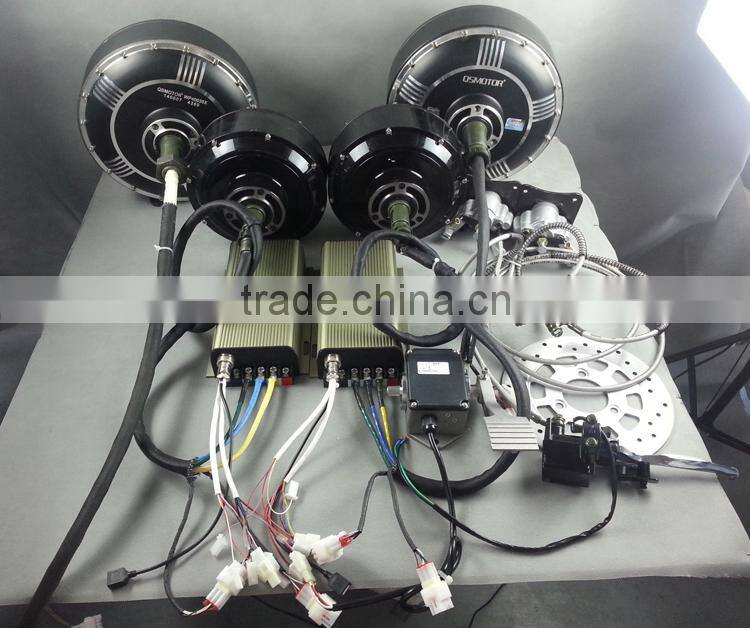

Electric Kits
The electric kits include electric motor, controllers, throttle pedal, speedometer, battery, charger,
brake system etc., we could offer electric motor, controller, throttle pedal & speedometer.
For 2 wheel driven EV, there should be 2x Motors, 2x controllers, 1x throttle pedal, 1x Speedometer.
For 4 wheel driven EV, there should be 4x Motors, 2x controllers, 1x throttle pedal, 1x speedometer.
When placing order, pls. advise below points:
1. E-scooter, E-tricycle or E-car, tire model?
2. Volt and wattage of motor, Speed(kV), and torque/climb angle ?
3. Your vehicle weight and loading weight?
4. Lithium or lead-acid Battery?
We will advise most suitable motor accordingly, thank you for your cooperation.
Payment term: Wire Transfer/TT, Money Gram,Western Union, Paypal 100% in advance Generally, we prefer T/T, Money Gram,Western Union 100% in advance (for sample). Meanwhile, we could also accept paypal.
There will be extra cost for transaction fee: Total cost*4.4%+0.3 Withdraw fee: USD 35.0 (We could bear USD 31.5, and charge USD 3.5 for you).
Valid time: 30 days
Producing Time: For motor, 18-20 working days after receiving payment.
P.S.: We could calculate the international delivery cost accordingly within your detailed address
(include ZIP code & Phone Number).
For more information about drawing, Performance Curve & Price, please contact with us freely.
Quanshun Motor focus on motor for more than 10 years, which is specialized in research,development and production of electric motor. We are located in Taizhou, with convenient transportation access.All of our products comply with international quality standards and are greatly appreciated in a variety of different markets through the world.If you are interested in any of our products or would like to discuss a custom order,please feel free to contact us. We are looking forward to build successful business relationships with new clients around the world.
Choose QS, Choose Quality & Service!
