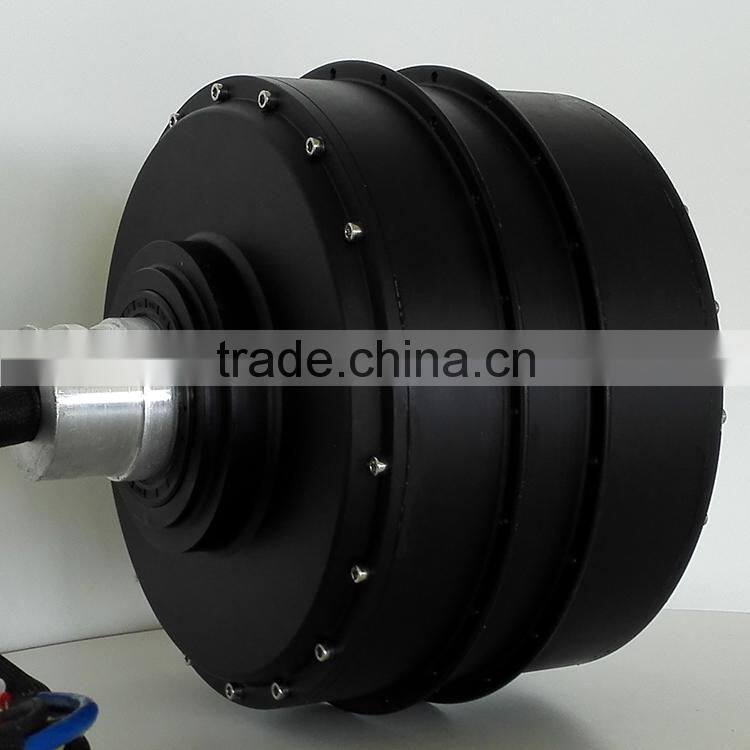

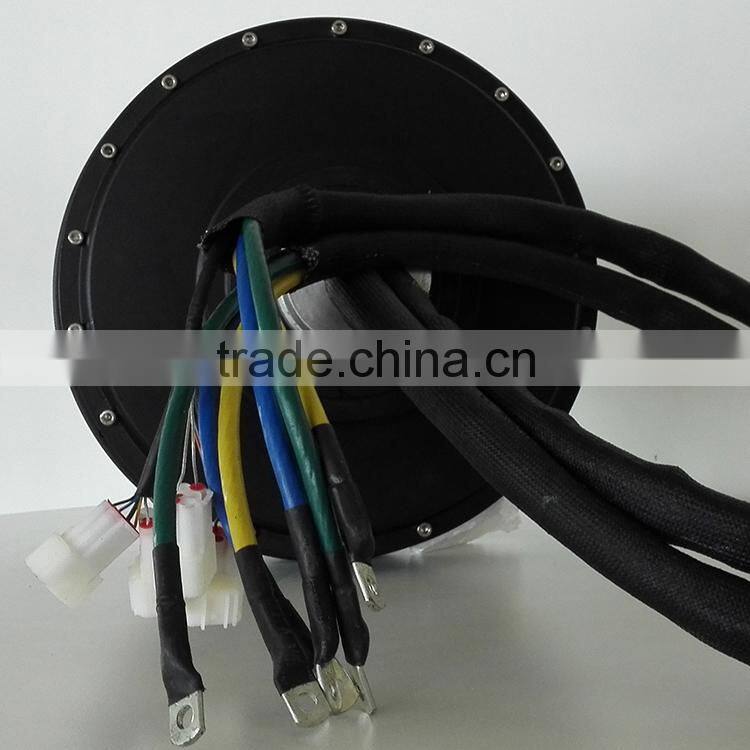

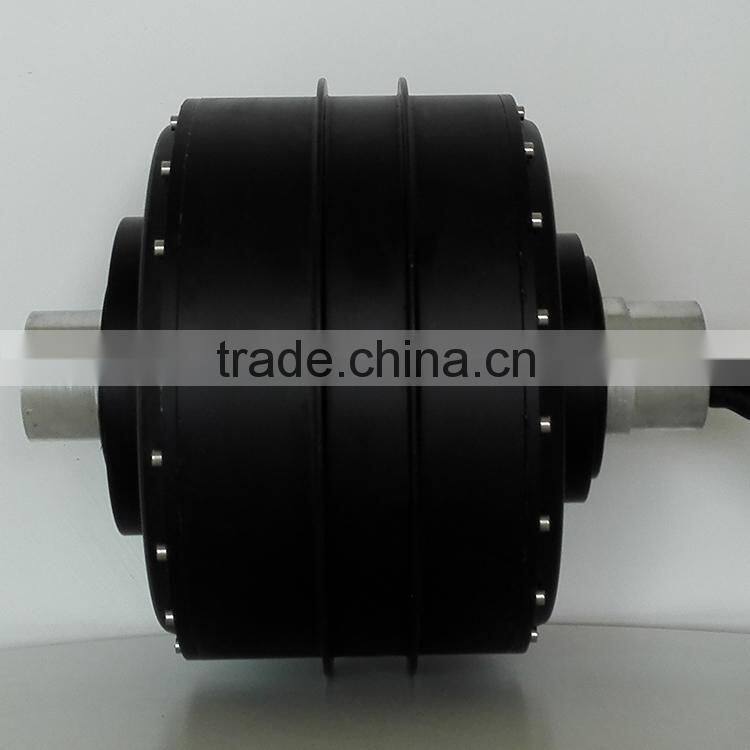

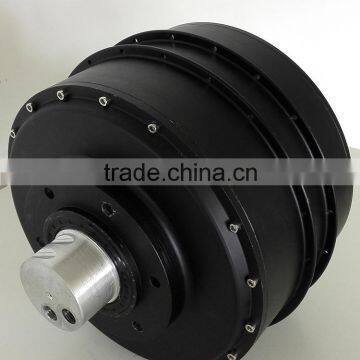

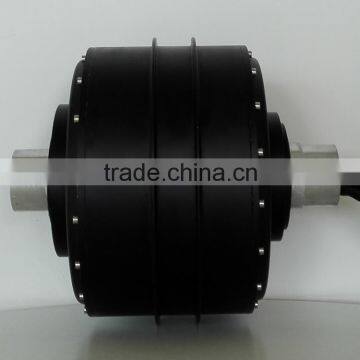

Water Cooled QS 273 Dual Stator 2X50H Extra/V3 Type Spoke Hub Motor
When placing order, pls. advise below points as detailed as possible.
1. E-bike or E-scooter, tire model?
2. Voltage and wattage of motor, Speed/RPM (kV), and torque/climb angle ?
3. Your vehicle weight and loading weight?
4. Lithium or lead-acid Battery?
Thank you for your cooperation.
²Motor Design of inner configuration
There are three types, Normal/V1 type (low cost), Export/V2 type (Cost-effective) and Extra/V3 type (Best Performance).
1. Comparison between V1 and V2.
Holder: Iron(V1), Aluminum (V2) Hall: One hall with Normal connector(V1), Two halls with Waterproof connector(V2) Stator: V2 have a stronger configuration, more cooper, thicker section surface, energy saving in usage. Magnetic Steel Grade: V2 ≥ V1 Efficiency: 84~87%(V1) 86~88%(V2) In short, normal type is standard configuration, while export type is high configuration. The price differs because of the cost of raw materials.
2. Comparison between V2 and V3.
The raw materials are alike, main difference in inner construction. For V3 (16 Pole Pairs): stronger configuration than V2, wider lamination, more cooper wire/phase wire and thicker Cross-sectional area section, bear more current in usage. Magentic Steel: V3 is wider and thicker. Efficiency: 86~88%(V2) 88~92%(V3) Thus, V3 have best performance.

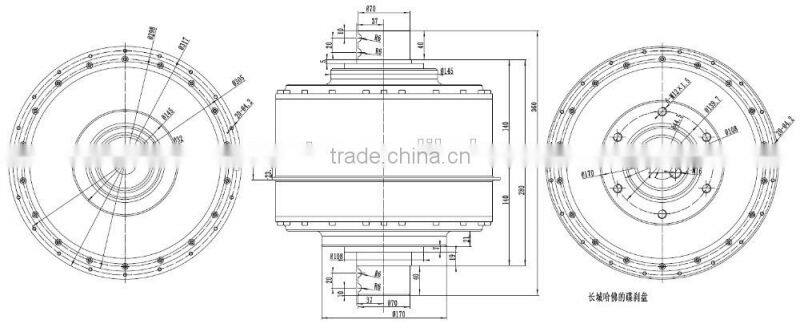

²CAD Drawing
More drawing:
Quanshun Motor focus on motor for more than 10 years, which is specialized in research,development and production of electric motor. We are located in Taizhou, with convenient transportation access.All of our products comply with international quality standards and are greatly appreciated in a variety of different markets through the world.
If you are interested in any of our products or would like to discuss a custom order,please feel free to contact us. We are looking forward to build successful business relationships with new clients around the world.
Choose QS, Choose Quality & Service!

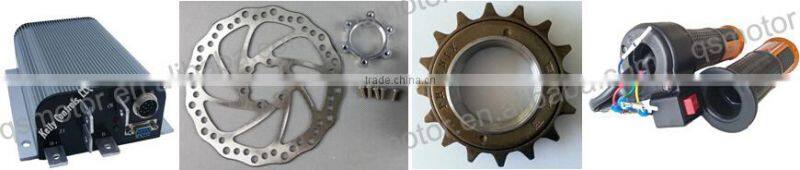

²Motor Kit
We could provide suitable controllers, freewheel, brake disc, throttle etc.
For the moment, we could not provide wheel set & Spokes.
