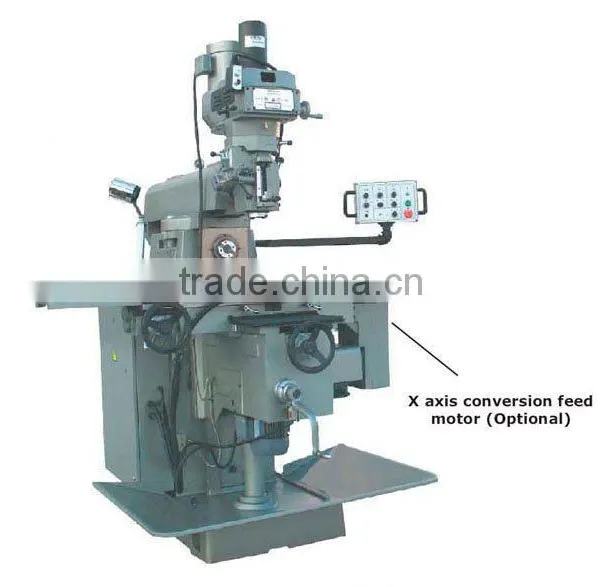

Servo Motor Universal Vertical and Horizontal Turrent Milling Machine 1300*300mm

Servo Motor Universal Vertical and Horizontal Turrent Milling Machine 1300*300mm thumbnail-1
Servo Motor Universal Vertical and Horizontal Turrent Milling Machine 1300*300mm photo-1
US$ 12,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
CTS
Contact Supplier Request Quote Chat Now
Cater Tools Supply Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name CTS
Model Number 905-0025
Type Universal
CNC or Not Normal
Voltage 380V
Power(W) 5HP
Dimension(L*W*H) 1800*1500*2200mm
Weight 1900kg
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Universal Vertical and Horizontal Milling Machine



Features:
* Large strong saddle.
* Standard ISO40 vertical spindle taper.
* Standard ISO40 horizontal spindle taper.
* 900mm/min Knee movement.
* 5HP Vertical motor
* 5HP Horizontal motor
* 1.5HP lifting motor.
* 90° vertical head rotation both sides.
* Hang up control panel
* Table feed servo motor
* Optional variable speed spindle: 65-3750rpm



Specifications:

Table size: 300x1300mm
Longitudinal travel: 845mm
Cross travel: 385mm
Knee vertical travel: 435mm
Longitudinal Table Feed Speed: 0-3500mm/min variable (Servo motor)
Cross Table Feed Speed: 0-3500mm/min variable (Servo motor)
Vertical Quill travel: 127mm
Rapid knee speed: 900mm/min
Motor power: 5HP
Vertical spindle taper: ISO40
Vertical Spindle speed: 16 steps speed (standard): 65-4500rpm 50HZ 80-5440rpm 60HZ.
Vertical quill feed speed: 0.04/0.08/0.15mm/revolution
Mill head swivel range: 90° both left and right
Distance between spindle nose to table surface: 115-545mm
Horizontal spindle motor power: 5HP
Horizontal spindle speed: 50HZ: 45,80,165,260,500,980rpm
                                         60HZ: 55,100,200,315,600,1180rpm
Horizontal spindle taper: ISO40
Distance from horizontal spindle center to table surface: -20-410mm
Distance from spindle center to ram: 183mm
Ram travel: 480mm
Ram rotating: 360°
Machine Weight: 1900kg
Packing Size: 180x150x220cm



Standard equipment:
* Electro cabinet and hung up control panel
* Knee rapid elevating motor
* Coolant system.
* Electro lubricate pump
* Draw bar
* Oil collecting plate
* Working lamp
* Plastic splashing guard
* Working lamp.
