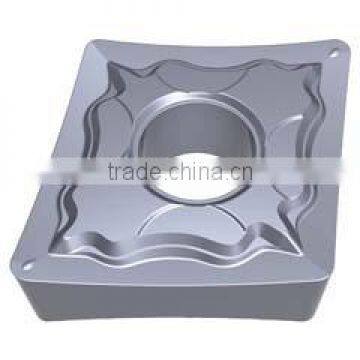

CNMG - LH Insert for Stainless Steel Finishing, Negative Angle

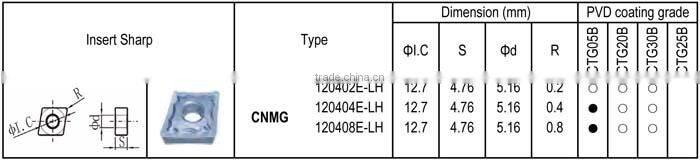

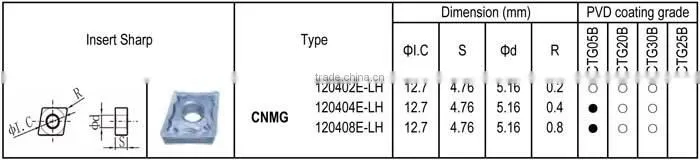

Carbide Insert: CNMG

Turning Insert for Stailness Steel, Finishing, Negative, PVD coating

Chip breaker: LH
Useage: For finishing turning, suitable for Stainless Steel and Aluminum alloy.
Recommended cutting parameters: ap=0.8-3.5mm; fn=0.1-0.4mm/r
Process: turning and facing
Charactoristic: light cutting groove with lower cutting force, good reliability and universality for fault-free cutting.
Typical parts: Stainless and Aluminum alloy parts.

Recommended grade: CTG05B
ISO classification: M10 (M05-M15)
Color: Cyan-blue gray dark
Application recommendation: PVD coating grade, used for typical hardened steel and plastic mold steel machining. Machining hardness HRC36 and above.

Optional grade: CTG20B
ISO classification: M25 (M10-M30)
Color: Cyan-blue gray dark
Application recommendation: PVD coated micro-grain carbide, used for various Stainless Steel finishing machining at medium to low cutting speed. When need excellent edge strength and good surface quality, it can provide a perfect smooth cutting. Good ability in thermal shock resistance. Suitabel for light interrupted cutting.

Optional grade: CTG30B
ISO classification: M30 (M25-M35)
Color: Cyan-blue gray dark
Application recommendation: PVD coating grade, used for austenitic stainless steel and duplex stainless steel semi-finishing to rough machining at low to medium cutting speed. Good ability in thermal shock resistance. Ideal for quickly interrupted cutting.
