Product Details
Place of Origin: | China | Brand Name: | CTS | Model Number: | VBMT-MD |
Material: | Tungsten Carbide | Usage: | External Turning Tool | Hardness: | HRA 91~93 |
Coating: | PVD |
Product Description

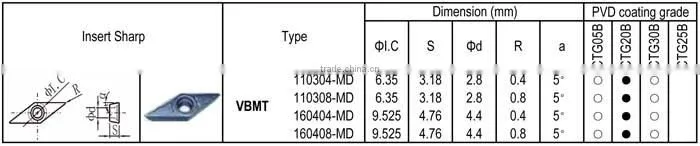

Carbide Insert: VBMT
Turning Insert for Stainless Steel, Semi-finishing machining, Positive angle, PVD coating
Chip breaker: MD
Useage: For Semi-finishinh turning, With wide application in Steel and Stainless Steel machining.
Recommended cutting parameters: ap=0.2-4.5mm; fn=0.1-0.35mm/r
Process: turning, facing and copying
Charactoristic: High reliablity and universality with fault-free cutting.
Typical parts: Axles, Shafts, Hubs, Gears, etc.
Recommended grade: CTG20B
ISO classification: M25 (M10-M30)
Color: Cyan-blue gray dark
Application recommendation: PVD coated micro-grain carbide, used for various Stainless Steel finishing machining at medium to low cutting speed. When need excellent edge strength and good surface quality, it can provide a perfect smooth cutting. Good ability in thermal shock resistance. Suitabel for light interrupted cutting.
Optional grade: CTG05B
ISO classification: M10 (M05-M15)
Color: Cyan-blue gray dark
Application recommendation: PVD coating grade, used for typical hardened steel and plastic mold steel machining. Machining hardness HRC36 and above.
Optional grade: CTG30B
ISO classification: M30 (M25-M35)
Color: Cyan-blue gray dark
Application recommendation: PVD coating grade, used for austenitic stainless steel and duplex stainless steel semi-finishing to rough machining at low to medium cutting speed. Good ability in thermal shock resistance. Ideal for quickly interrupted cutting.
