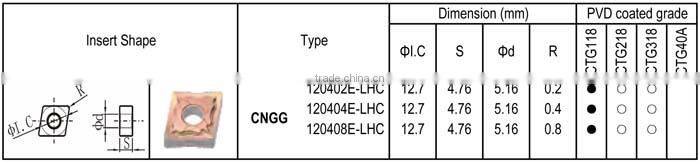

CNGG-LHC Insert for Heat-resisting Alloy, Finishing and Semi-finishing

Carbide Insert: CNGG

Turning Insert for Heat-resisting Alloy, Finishing and Semi-finishing machining, Negative angle, PVD coating

Chip breaker: LHC
Useage: for finishing turning of Aluminum alloy and other non-ferrous metals. High accuracy type.
Recommended cutting parameters: ap=0.08-3.5mm; fn=0.1-0.4mm/r
Process: turning and facing
Charactoristic: low cutting force for light cuitting, with good reliablity and universality for fault-free cutting.

Recommended grade: CTG118
ISO classification: S05-S15
Color: Purple Yellow
Application recommendation: PVD coated grade, suitable for medium speeding cutting of heat-resisting alloy, with good ability to avoid built-up edge and plastic deformation.

Optional grade: CTG218
ISO classification: S15(S15-S30)
Color: Purple Yellow
Application recommendation: PVD coated grade, with good ability to avoid built-up edge and plastic deformation. Used for unstable conditions, such as long cutting edge, clogging, deep shoulder milling, long overhang, milling and turning processes.

Optional grade: CTG318
ISO classification: S25(S20-S30)
Color: Purple Yellow
Application recommendation: PVD coated micro-grain carbide, with sharp cutting edge, excellent edge toughness, good wear resistance and thermal shock resistance. Used for low speed cutting of heat-resisting alloy or light interrupted cutting.
