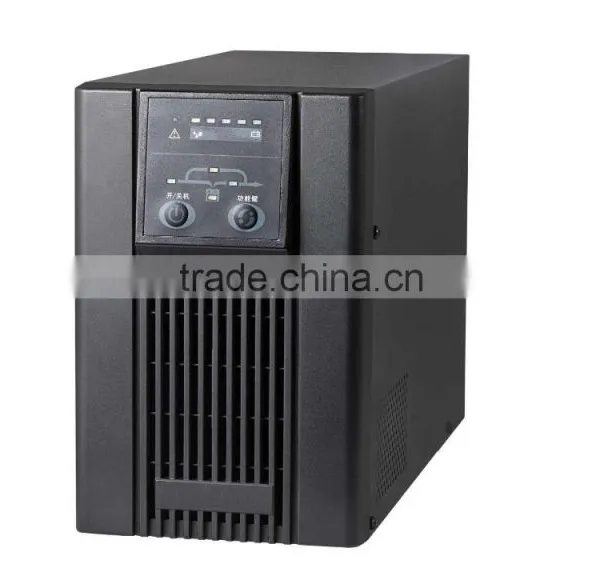

On-line Type and Telecommunications Application Online UPS

On-line Type and Telecommunications Application Online UPS thumbnail-1
On-line Type and Telecommunications Application Online UPS photo-1
US$ 104.00 - 104.00 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
C1K-C3K
Contact Supplier Request Quote Chat Now
Shenzhen Apcups Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN GUANGZHOU HONGKONG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number C1K-C3K
Phase Single Phase
Protection Other, short circuit and overload protection
Weight 9.2-22.6kg
Output Voltage 220v
Type On-line
Application Other, home appliance ,telecommunication

High frequency online UPS 1kva 2kva 3kva



Double conversion and IGBT technology

Advanced battery management

Crest factor1:3

Wide input range

High frequency online UPS



Key Features

True on-line double conversion technology with advanced microprocessor control

Wide input voltage range

Zero transfer time

Protection against all type of power problems

Self test while start of the UPS

Site wiring fault warning

On-battery power-on function

Smart RS232 communication interface

Intelligent slot available

Sealed lead-acid, maintenance free battery





MODEL 1K (S)  2K (S)  3K (S)
PHASE Single phase with ground
CAPACITY 1000 VA / 800 W 2000 VA / 1600 W 3000 VA / 2400 W
INPUT
Nominal Voltage 100/110/115/120/127VAC or 200/208/220/230/240VAC
Input Voltage Range  55-145 VAC or 110-300 VAC
Frequency Range   40Hz  ~ 70 Hz
Power Factor 0.99 @ Nominal Voltage (100% load)
OUTPUT
Output Voltage 100/110/115/120/127VAC or 200/208/220/230/240VAC
Voltage Regulation  ± 1%
Frequency Range (Synchronized Range) 47~ 53 Hz or 57 ~ 63 Hz
Frequency Range (Batt. Mode) 50 Hz or 60Hz ± 0.1 Hz
Current Crest Ratio 3:1
Harmonic Distortion  3 % THD (Linear Load)
 6 % THD (Non-linear Load)
Transfer Time AC to DC Zero
Inverter to Bypass 4 ms (Typical)
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
To AC Mode 88% 89% 90%
To Battery Mode 83% 87% 88%
BATTERY
Standard Model Battery Type 12 V / 7 AH 12 V / 7AH 12 V / 7 AH
Numbers 2 6 6
Typical Recharge Time 4 hours recover to 90% capacity
Charging Current (max.) 1.0 A
Charging Voltage 27.4VDC ± 1% 82.1 VDC ±1% 82.1 VDC ±1%
Long-run Model* Battery Type Depending on the capacity of external batteries
Numbers 3 6 8
Charging Current (max.) 1.0A/2.0A/4.0A/6.0 A
Charging Voltage 41.0VDC ± 1% 82.1 VDC ±1% 109.4VDC ±1%
INDICATORS
LCD Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continously sounding
PHYSICAL
Standard Model Dimension, D x W x H (mm) 397 X 145 X 220 419X190X318
Net Weight (kgs) 13 26 28
Long-run Model* Dimension, D x W x H (mm) 282 x 145 x 220 397 X 145 X 220
Net Weight (kgs) 4.6 6.8 7.4
ENVIRONMENT
Humidity 20-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 50dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
Optional SNMP Power management from SNMP manager and web browser
