woodworking series cnc router for furniture making machinery

Specifications

1,handle controller
2,easy operation
3,big power servo engine drive system
4,no oil vacuum pump
5,fewer maintenance

Applicable industries:Woodworking  industry,3D wave board processing,cupboard doors,crafts wooden doors,unpainting door,screen ,crafts windows,milling and engraving on the furniture and company logos,laser engraving and cnc cutting of home appliances,deocaration,wooden doors,hollow  engraving,musical instruments,as well as the advertising materials of acrylic,double-color  board,PVC,plastic board,luminous panel,light box etc



Technical Parameters



X working travel	1300mm
Y working travel	2500mm
Z working travel	450mm
Table size	1300mm*3000mm
Working precision	±0.004mm
Location precision	0.05mm
Table structure	Vacuum adsorption T
X,Y,Z structure	X,Y rack,Z screw
Power consumption	8KW
Max travel speed	50000mm/min
Max work speed	25000mm/min
Spindle power	4.5KW
Laser power	80W-100W
The speed of spindle	0-24000r/min
The type of running	Stepper(option servo)
Working voltage	AC380V/50HZ,AC380V/60HZ
Working order	G code



 Application sample

parts

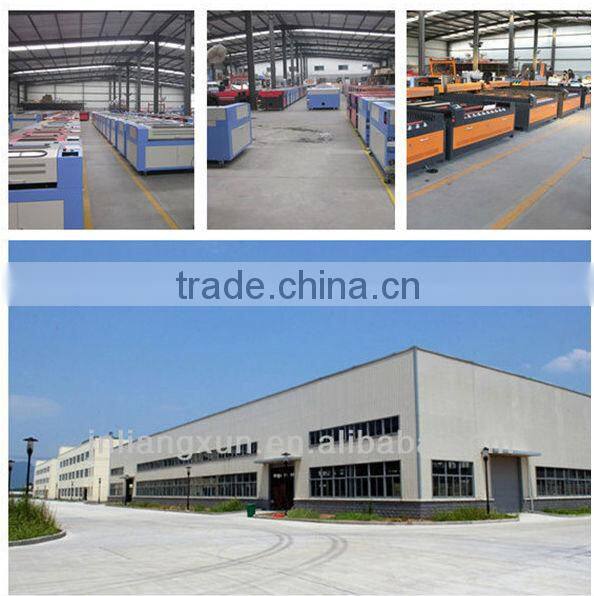

factory picture





certification

 shipping&packing

exhibition

team
