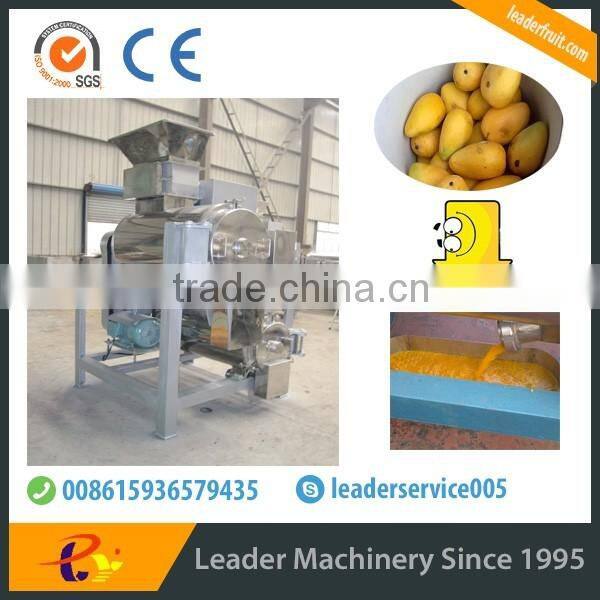

Leader High Quality Various Fruit Beating Machine Offering Its Services to Overseas

Introduction

Based on the technology of Italy, LDDJ various fruit beating machine is designed for effectively removing the peel and core for core fruits like mango, peach, Apricot, plum etc.and finally get beated fruit puree.It has features of high core-removing rate and high puree rate, stable working, long life span, low noise and easy maintenance etc.Compared with traditional processing art,our machine can effectively reduce production cost and enhance enterprise’s economy efficiency.It can be widely used for mature or pre-boiled core fruits or kernel fruits or berries.

No hesitation to contact us!

Skype:leaderservice005  Tel:008615936579435

Working principle

This various fruit beating machine mainly composed of drive system,shaft block,sleeve,cylinder back cover,blocking pulp tray,cylinder,spline shaft,screen,scraper blade(Beating bar), rack etc.The working flow as follows:

(1)stone fruits

Motor through the triangle belt transmission,make the rotor rotate at a high speed,the material enter into the hopper,the feeding blade auger delivery the material to beating bar,under the function of beating bar,the material being pound,Due to the effect of centrifugal force,Juice and fruit meat(puree) of material enter to the next working procedure by the mesh on the screen,the core was discharged by slag blade,to realize automatic separation of puree and residue.

(2)Berries

Motor through the triangle belt transmission,make the scraper blade which was Installed on the spline shaft rotate at high speed.When the broken fruit into the machine through the inlet port,blocking pulp plate eject the material to scraper and the screen evenly,Due to the effect of rotation of the scraper and the existence of the lead Angle,make the material move toward exit end along the cylinder,the movement track is spiraling,the material was broken due to the effect of centrifugal force,Juice and fruit meat(puree) of material enter to the next working procedure by the mesh on the screen,the core was discharged by slag blade,to realize automatic separation of puree and residue

Applied fields

This various fruit beating machine is mainly used for effectively removing the peel and core for stone fruits(mango,peach,apricot),berries(kiwi fruit,strawberry) and pre-boiled core fruits(apple,pear) etc.And finally get beated puree.

Why to choose us?

1.The initiative factory since 1995 with rich experience in fruit&vegetable processing machine.

2.We have passed CE AND ISO CERTIFICATION .Check CE NUMBER:

IT031153LD151221.

3.Over 99.5% customer satisfaction through the survey on our old customers questionnaire.

Premium after sales service:

a.Video instruction for installation and adjustment.

b.Well-edited user book to ensure no understanding barrier.

c.24 hours instant responding system to any of your request.

4.You will be kept updated of the production state during the whole production process.

5.Here you will find the most competitive factory price which is almost equal to the actual cost !

6.Engineering  team can CUSTOM DESGIGN according to your requirements, from particles to powders.

7.Fast delivery with long term cooperation logistics company to ensure lowest logistics cost.

Money back within 20 days after receipt of goods on dissatisfaction

One year change warranty for motor

All life attention

Technical parameters

Features

(1)puree and residue can separate automatically

(2)high core-removing rate and high puree rate

(3)Not only can be combined on the production line,but also can produce single

(4)The parts contacted with material with high quality stainless steel,conforms to food hygiene.

No hesitation to contact us!

Skype:leaderservice005   Tel:008615936579435

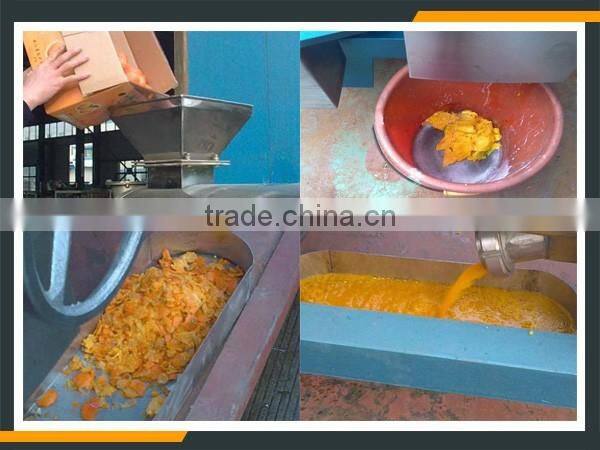

Effect shows

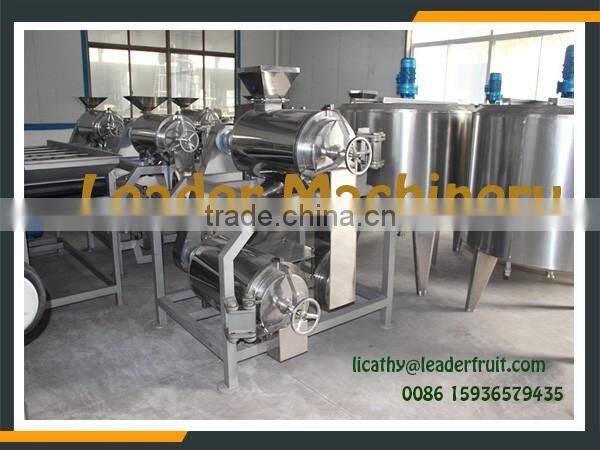

Workshop show

Patent Certificate

CE AND ISO Certificate

No hesitation to contact us!

Skype:leaderservice005    Tel:008615936579435

Packaging

high quality fruit and vegetable pulp press machine

For export, we usually use different packs for different products according to its size.

For small size, crate case is adopted.

For big size and heavy good, fumigation-free wooden case or pallet is offered for 20’ or 40’ container or bulk shipment.

Five years export experience guarantees you to get your goods safely and quickly.

Do you have questions?Pl refer to our FAQ.

1.About machine

Q1:What is the material of your this machine?

A:Apart from transmission, all materials are SUS 304.

Q2:How can I get a suitable model?

A:Pl kindly tell me the diameter range of your pomegranates and your requested capacity per hour ,then we will choose suitable model for you.

Q3:Could you pl kindly design a workshop layout for line?

A:Yes,according to the length and width of your work site ,our engineer can design a layout for you.

2.About test

Q:How could you demonstrate the effect of your machine?

 A:We can offer video and  you are welcome at any time to visit us for products and our production capacity.

 3.About payment

Q:What payment term will you accept?

A:We always accept T/T,L/C,Western Union,Paypal.Other ways can be negotiated.

4.About transportation

Q:What is the transportation you always use?

A:For big products,the usual way is by sea,and for small,DHL is usually used.We also can deliver according to your requirements.

5.About after-sales

Q1:Will you send engineer to our company to install machines?

A:When it is needed, our engineer can go to customer site to install and adjust machines and train operators.

Q2:Will you provide products user book with detailed specification and operation instructions?

A:Yes,it will be sent with machines.

Q3:How long is the guarantee period?

A:We have one year maintenance for free and all life attention service.

Q4:Do you have any warranty about motor?

A:During one year since you get machine ,a new motor will be sent with the proofs that it break downs in  normal operation.

For more, please contact us!
