new unique product ideas 30w 4-way rotatable LED downlight
- 5000 Piece / Pieces per Month
- Shenzhen Fob
- T/T L/C D/P D/A Credit Card PayPal
- Linear Downlight
- LED Downlight
- A Anti-glare Waterproof IP65 led downlight project waterproof spots light 5w 7w 9w 12w downlight
- A Surface Mounted Led Downlight AC LED Bulb Outdoor Adjustable Led Downlight Lamp Spot Light
- Dimmable IP65 LED Down Lights (30-300W)
- Emergency IP65 LED Down Lights (30-300W)
Product Details
LED Light Source: | COB | Warranty(Years): | 5years | Input Voltage(V): | 100-277vAC |
Lamp Power(W): | 33 | Lamp Luminous Flux(lm): | 3700 | Lamp Luminous Efficiency(lm/w): | 120 |
Color Temperature(CCT): | Cool White | Working Temperature(℃): | -25, +45 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum | IP Rating: | IP54 | Certification: | CE |
Model Number: | GS-CL-COB-30WB-CW | Place of Origin: | Guangdong, China | Brand Name: | Gosun |
Product Description

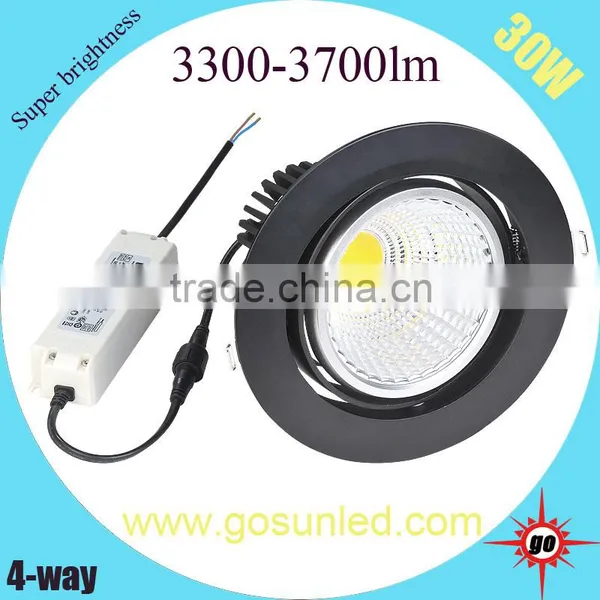

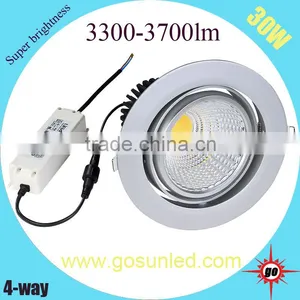

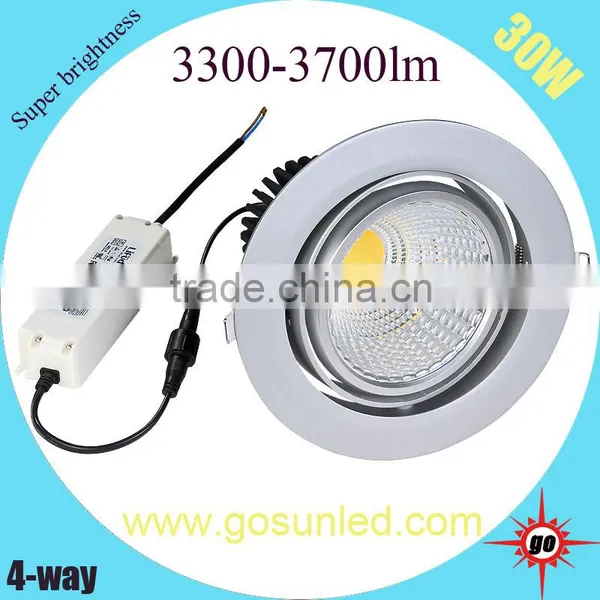

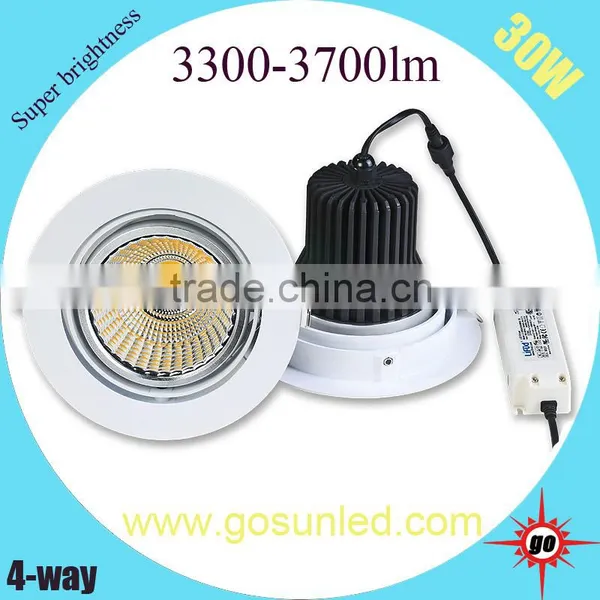

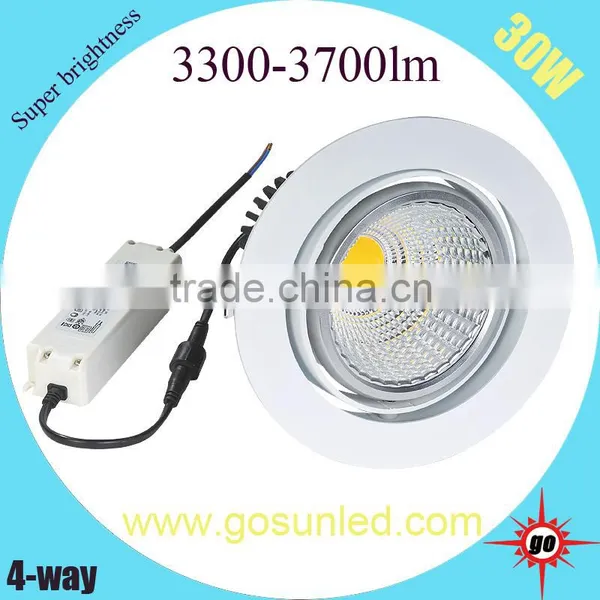

new unique product ideas 30w 4-way rotatable LED downlight
1.Product features
LED power | 30W |
Lamp consumption | 33W |
Output | 3600-3700lm |
Beam angle | 20or 30 or40or 50 degree |
Input voltage | AC100-277V |
Frequency Range | 50-60HZ |
CRI | >82 |
Working Temperature | -40°c-65°c |
warranty | 5 years |
Color of housing | Aluminum,white or black |
Lifespan | 50,000+hrs |
Certificate | CE/ROHS/ERP/SAA/SASO/GS |
2.COB parameter
PCB | Ceramic |
Chip size | 18*33mil |
Output | 2900-3000lm |
Chip Qty | 462pcs |
CRI | >82 |
Voltage | 30-33vDC |
Current | 1000mA |
Brand options | Gosun/Cree/brigelux/Citizen |
3.Driver parameter
Brand | Lifud/Meanwell/EAGLERIES/PHILIPS/TRIDONIC |
Input | AC100-277vAC |
Output | 27-42vDC,1000mA |
Power Factor | 0.9-0.99 |
Power Efficiency | 88% |
Certificate | EMC/TUV/UL/CE/CQC/PSE |
Dimmable | Triac /Dali /Wi-Fi available |
Data Sheet: |
Part No. | Color | CCT | Output(Ra80)
| Size(mm) |
GS-SCL-COB-30W-WW | Warm White | 2900K-3200K | 3400-3500lm | φ198*H170 φ165(hole) |
GS-SCL-COB-30W-NW | Natural white | 3900K-4200K | 3500-3600lm | |
GS-SCL-COB-30W-CW | Cool White | 5900K-6200K | 3600-3700lm |
Dimensions(mm): |

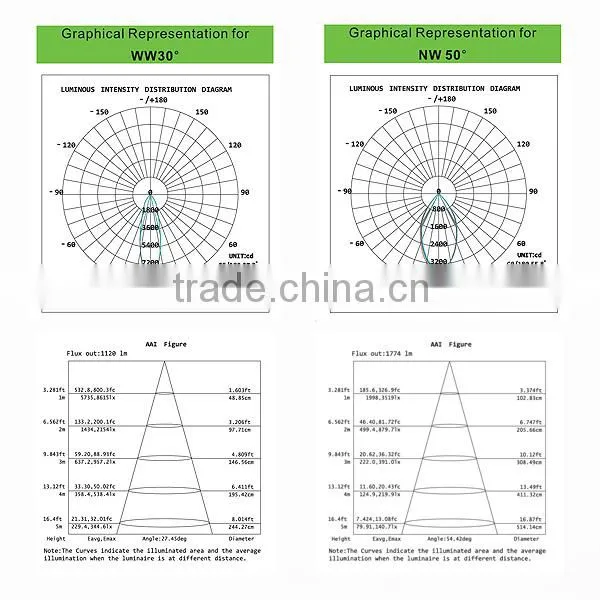

Test Report(Please contact us to get the IES files): |
(Note:The beam angle is only about 1/2 output of the all illuminated)

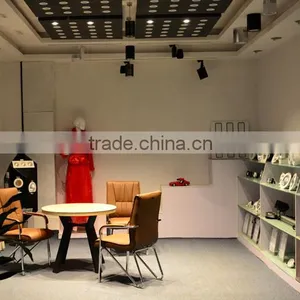

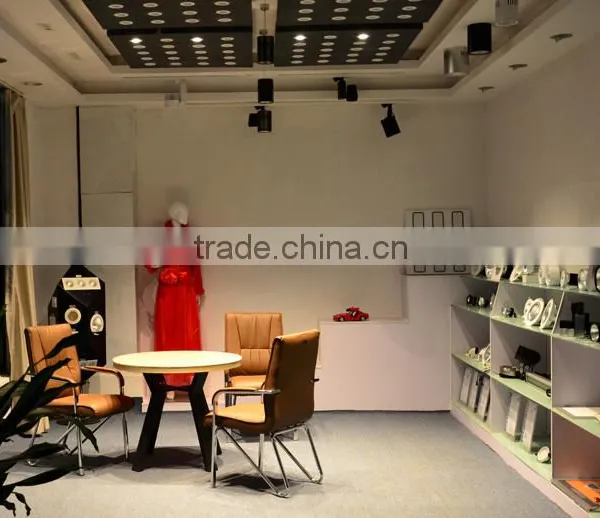

Company picture:
Projects for Landrover in England 2014.10
Poojects for PUMA McDOND'S Germany&France
Hong kong lighting fair 2014.10.27
Q1: What is colour temperature?
A1: warm,natural,pure and cool white with color temperature.
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Cool white = 6000K-6500K
Q2:: What is CRI?
A2: CRI is a figure which feedback the real objects colors. Higher CRI with higher cost. our regular is 82,85,90.
Q3:What brand of leds you use for led downlight?
A3:We use original Epistar led chips as light source.
Q4:what is the years of waranty?
A4:Our regular 3 years and 5 years is also okay.
Q5:What LED driver you use?
A5:Regular is Lifud, MEANWELL or EAGLERIES or Philips,it upon your requirements.
Q6:What is the lead time?
A6:Once order confirmed,will arrange production ASAP,the lead time is around 5-7working days.
