Home > Products > COB LED track light > 2016 new design gallery led track lighting super bright 10w cob led track light

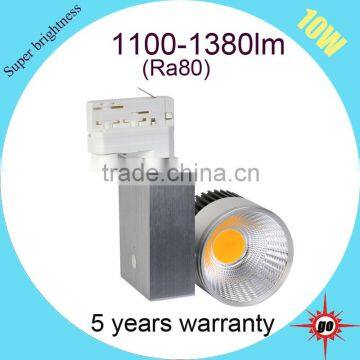

2016 new design gallery led track lighting super bright 10w cob led track light
- 50000 Piece / Pieces per Month
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2016 new design led lights 10/20/30/40/50w dimmable cob led track lighting
Quality Choice
-
China supply 5 years Warranty 2*50W High CRI 2*50W COB LED track light
-
2016 hot sales dimmable cob 30W track light-shenzhen GS
-
220v dimmable 2*20W 3 wries led track lighting powerful led track energy light
-
Commercial Dimmable Super bright white housing cob 20W track light
-
2016 Super brightness 2*10W 3 wries led cob track lighting
Product Details
| Light Source | Induction Lamps | Input Voltage(V) | 100-277V | |
| Install Style | Downlights | Certification | C-tick, CCC, CE, CQC, EMC, Energy Star, FCC, GS, PSE, SAA, UL | |
| Switch Type | Knob switch | Lamp Power(W) | 12 | |
| Lamp Luminous Flux(lm) | 1100-1380LM | Lamp Luminous Efficiency(lm/w) | 135LM/W | |
| Color Temperature(CCT) | Other, 2900-6200K | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Aluminum | Shade Type | Clear Glass | |
| Model Number | GS-STL-COB-10W-WW/NW/CW | Place of Origin | Guangdong, China | |
| Brand Name | Gosun |
Product Description
2016 new design gallery led track lighting super bright 10w cob led track light
1.Product features
| LED power | 10W |
| Lamp consumption | 12W |
| Output | 1100-1380lm |
| Beam angle | 30 or 50 degree |
| Input voltage | AC100-277v |
| Frequency Range | 50-60HZ |
| CRI | >82 |
| Working Temperature | -40°c-65°c |
| Storage Temperature | -25°c-65°c |
| Color of housing | Aluminum,white ot black |
| Lifespan | 50,000+hrs |
| Certificate | CE/ROHS/SAA/SASO |
2. COB parameter
| PCB | Ceramic |
| Chip Brand | Epistar 10*23 |
| Output | 2600-3000lm |
| Chip Qty | 300pcs |
| CRI | >82 |
| Voltage | 26-28vDC |
| Current | 700mA |
3.Driver parameter
| Brand | Lifud |
| Input | AC100-277V,Max 305V |
| Output | 18-30vDC,700mA |
| Power Factor | 0.9-0.99 |
| Power Efficiency | 88% |
| Certificate | CE/TUV/UL/CQC/PSE/CB |
| Dimmable | Triac/0-10V/Dali/Wi-Fi available |
| <MEANWELL APC-12-350 is optional> | |
Product Datasheet:
| Part No. | Color | CCT | Output(Ra80) | Output(Ra90) |
| GS-SCL-COB-10W-WW | warm white | 2900-3200K | 1100-1200lm | 900-980lm |
| GS-SCL-COB-10W-NW | natural white | 3900-4200K | 1200-1300lm | 1000-1100lm |
| GS-SCL-COB-10W-CW | cool white | 5900-6200K | 1300-1380lm | 1100-1160lm |
Dimension:
COB Chip:
IES Test:(please contact us to get the IES file)
360° rotatable:
More detailed options:
Dimmable:
Packing
Production flow:
project picture:
My company has with BMW Land Rover 4S shop cooperation, with some senior hotels and shopping malls cooperation, our products are well received by the customer's favorite, the quality of our products is very good in peer.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Covering an area of 3,000 square meters, we now have over 150 employees, an annual sales figure that exceeds USD 8,000,000 ... View detail
Basic Information
| Product/Service (We Sell): | LED Downlight,LED Track light,LED spotlight,LED Panel,LED Ceiling light | |
| Number of Employees: | 51 - 100 People |
Trade & Market
| Main Markets: | Africa South Asia Central America Eastern Asia Southeast Asia North America Domestic Market Mid East South America Oceania Eastern Europe Northern Europe Southern Europe Western Europe | |
| Total Annual Sales Volume: | US$5 Million - US$10 Million | |
| Export Percentage: | 91% - 100% |
Factory Information
| Factory Size (ters): | 1,000-3,000 square meters | |
| Factory Location: | Building 7, Longteng Road, Shiyan Town, Baoan District,Shenzhen | |
| Number of Production Lines: | 4 | |
| Number of R&D Staff: | 5 - 10 People | |
| Number of QC Staff: | 5 - 10 People |
Supplier Assessment Report
| Do you want to know more about this company before you make a deal? Request an Assessment Report. |
| Supplier Assessment Reports are detailed on-line reports about the supplier's capabilities. It helps you get all the information you need to trade confidently with suppliers. |
Our main products:
Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. OEM & ODM are welcomed, OEM brand is available.
4. Distributor ship is offered for your unique desigh and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Our quality control:
* All products must go through five checks before manufacturing process.
* Raw material full check before production.
* Full check after every individual process finished.
* Full check after production half-done.
* 500 times on and off testing after production finished.
* Full check after production packed before shipping.
Welcome to place trial order to test our product!!!
2016 new design gallery led track lighting super bright 10w cob led track light
2016 new design gallery led track lighting super bright 10w cob led track light
2016 new design gallery led track lighting super bright 10w cob led track light
