6KW 10KW 12KW 17KW CHINA Three Phase Solar Power Inverters

Hangzhou Creatop New Energy Co., Ltd.
5Yrs
6KW 10KW 12KW 17KW CHINA Three Phase Solar Power Inverters thumbnail-1
6KW 10KW 12KW 17KW CHINA Three Phase Solar Power Inverters photo-1
US$ 1,000 - 3,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CREATOP
Model Number:
CTI3P-6KW 10KW 12KW 17KW
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI / NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name CREATOP
Model Number CTI3P-6KW 10KW 12KW 17KW
Output Power 1 - 200KW
Output Type Triple
Size 516*650*203MM
Weight 32 39 39 39 39
Input Voltage MAX 1000V
Output Voltage 3P+N+PE-230V/400V(±20%)
Type DC/AC Inverters
Output Frequency According to VDE-AR-N 4105, VDE 0126-1-1/A1, RD1699, ENEL,G59/2, AS477
Output Current max.10 17 19 25 25

Specifications

6KW 10KW 12KW 17KW CHINA three phase solar power inverters
1.CE,ISO9001
2.MPPT Technology
3.three phase

6KW 10KW 12KW 17KW CHINA three phase solar power inverters



Product Description

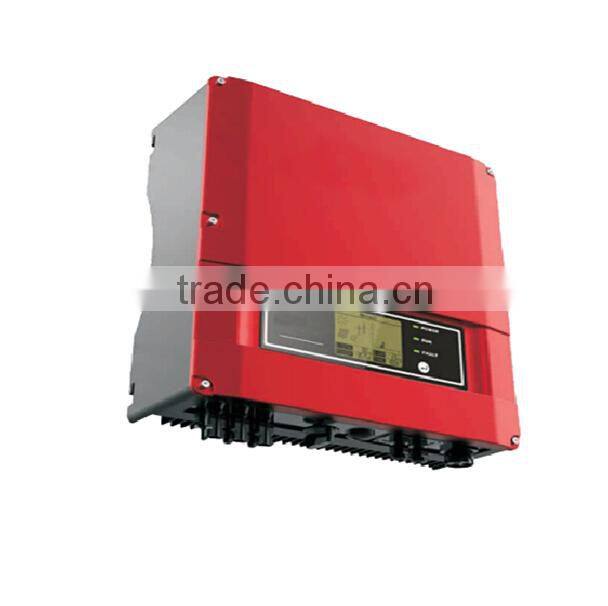

 6KW 10KW 12KW 17KW CHINA three phase solar power inverters

                                                                         ITEM
 MODEL		CTI3P-6KWCTI3P-10KWCTI3P-12KWCTI3P-15KWCTI3P-17KW
DC Input DataMax. PV-generator power [W]620010200123001540017500
Max. DC voltage [V]1000
MPPT voltage range [V]260~850
Turn on DC voltage [V]250
Max. DC work current [A]11/1122/1122/1122/2222/22
Number of inputs/MPP trackers2/2(can paraller)4/24/26/2(can paraller)6/2(can paraller)
DC connectorMC IV Connector
Stanby power consumption [W]10
AC Output DataNominal AC power [W]600010000120001500017000
Max. AC power [W]600010000120001500017000
Max. output current [A]1017192525
Nominal output voltage rngeAccording to VDE-AR-N 4105, VDE 0126-1-1/A1, RD1699, ENEL,G59/2, AS4777.2/.3
AC grid frequencyAccording to VDE-AR-N 4105, VDE 0126-1-1/A1, RD1699, ENEL,G59/2, AS4777.2/.3
THDi<1.5%
Power factor0.90 leading...0.90 lagging
AC connector3W/N/PE, 230/400V
EfficiencyMax. efficiency98.00%98.00%98.00%98.20%98.20%
European efficiency>97.5%
MPPT adaptation efficiency>99.5%
Safety EquipmentLeakage current monitoring unitIntegrated
DC switchOptional
Islanding protectionAFD
Grid monitoringAccording to VDE-AR-N 4105, VDE 0126-1-1/A1, RD1699, CEI 0-21, G59/2, AS4777.2/.3
Nomative ReferenceEMC complianceEN 61000-6-1, EN 61000-6-2,EN 61000-6-3, EN 61000-6-4
Safety complianceAccording to IEC 62109-1, AS3100
General DataDimensions(WxHxD) [mm]516*650*203
Net weight [kg]3239393939
HousingFor outdoor and indoor
Mounting informationWall mounting
Operating temperature range-20~60℃ (up to 45℃ degrating)
Relative humidity0~95%
Site altitude [m]2000
IP protecion classIP65
TopologyTransformerless
Cooling conceptFan cooling
Noise level [dB]<45
Display5''LCD
CommunicationUSB2.0; RS485 [Wireless(Zigbee)/Ethemet optional]
Standard warranty [years]10
