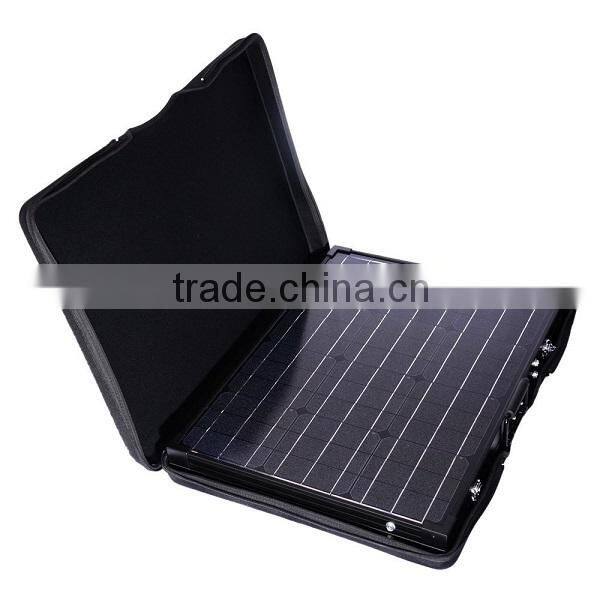

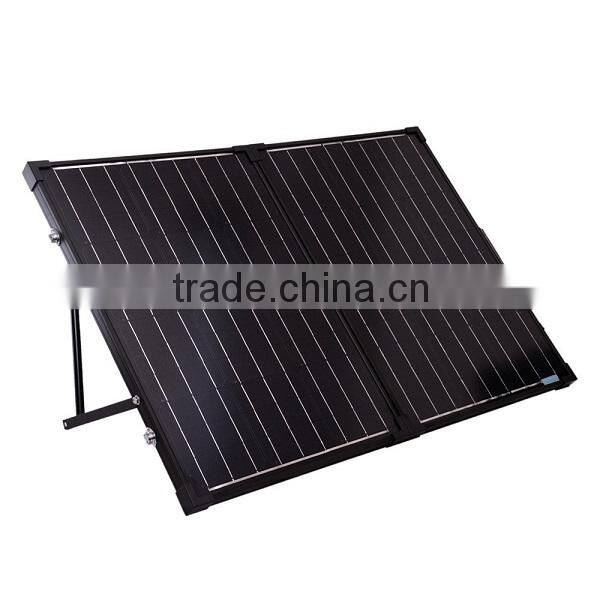

100W MONO CELL Portable Solar Power Generator,portable Solar Power

Name: 100W MONO CELL Portable Solar Power Generator,portable Solar Power
Brand: CREATOP
SKU: 104271625
Availability: InStock

Hangzhou Creatop New Energy Co., Ltd.

5Yrs

US$ 100 - 150 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

CREATOP

Model Number:

CTM-SC-100

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name CREATOP

Model Number CTM-SC-100

Specification Mini

Application Commercial

Output Voltage (V) 17.5

Load Power (W) 100w

Solar Power (W) 100w per hour

Work Time (h) 16

Specifications

100W MONO CELL portable solar power generator, portable solar power
1. Excellent performance in low light environment
2. 10A

100W MONO CELL portable solar power generator,portable solar power

Product Description

CTM-SC-100
Cells		Mechanical Data
Cell Technology	Monocrystalline	Dimension of solar module	505x690x70 mm
Number of cells per module	36pcs/panel	Weight	15KGS
Cell Type	156*156 mono

Electrical Data
CTM-SC-100
Maximum power	100W
Open circuit voltage (V):	21.7V
Max. power voltage (V):	17.7V
Short circuit current (A)	2x3.00 A
Max. power current (A):	2x2.78 A
* At Standard Test Conditions(STC) Irradiance 1000Watt/M2, AM1.5 100mW/cm2 25’C

Thermal Data
Temperature coefficients of Voc (%)	-0.38/ ℃
Temperature coefficients of Isc (%)	+0.1/ ℃
Temperature coefficients of Pm (%)	-0.47/ ℃
Temperature coefficients of Im (%)	+0.1/ ℃
Temperature coefficients of Vm (%)	-0.38/ ℃
Temperature Range	-40℃~+80℃

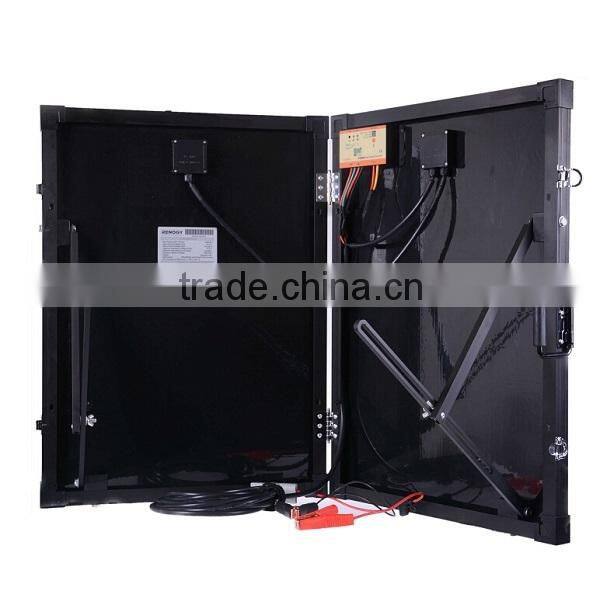

Accessories
1. Handle
2. Latches
3. Aluminum frame

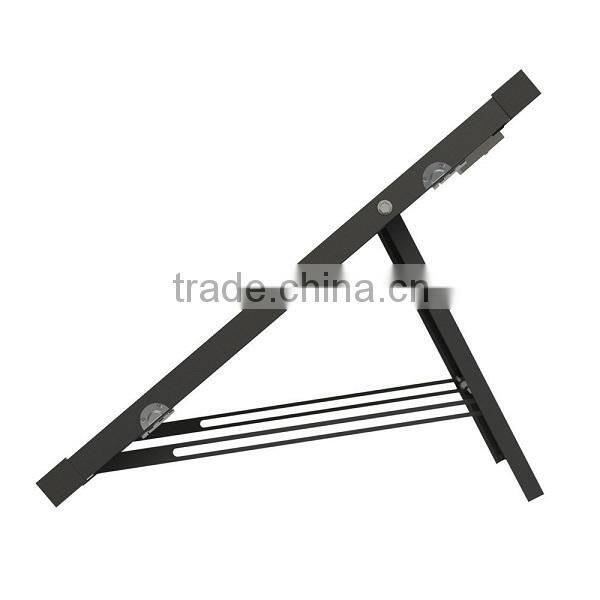

4. Aluminum stand
5. Solar charge controller
6. Connection box
7. Cable
8. Battery crocodile clips
9. Anderson plug
10. Fuse
11. Storage bag
12. Corner protector

Warranty
5 years Full warranty on the Material and workmanship, and a performance warranty of 90% of the minimal rated power output (Pmpp 0 to +3%) during the first ten (10) years and 80% during twenty-five (25) years
