Help CenterChina Supplier YONGBANG Hydraulic Tools YB-SYW-4 1/2"-4" Hand Operated Bending Machine
Related Products
-
Hot Sale! 4" Manual Hydraulic Pipe Bending Machine for Steel Pipes1/2"-4" YB-SYW-4NegotiableMOQ: 1 Set -
2015 HOT SELL YONGBANG YB-DGWJ-G76 Multi-function Automatic Tube Bending Machine With CE for Square / Round PipeNegotiableMOQ: 1 Set
-
2015 YONGBANG YB-DYW-2 2 Inch Electric Hydraulic Tube Bender for SaleNegotiableMOQ: 1 Set
-
China Supplier YONGBANG YB-DYW-3 1/2"-3" Electric Hydraulic 3 Inch Pipe BenderNegotiableMOQ: 1 Set
-
4 Inch YB-SYW-4 Steel Manual Tube Bender 1/2"-4"NegotiableMOQ: 1 Set

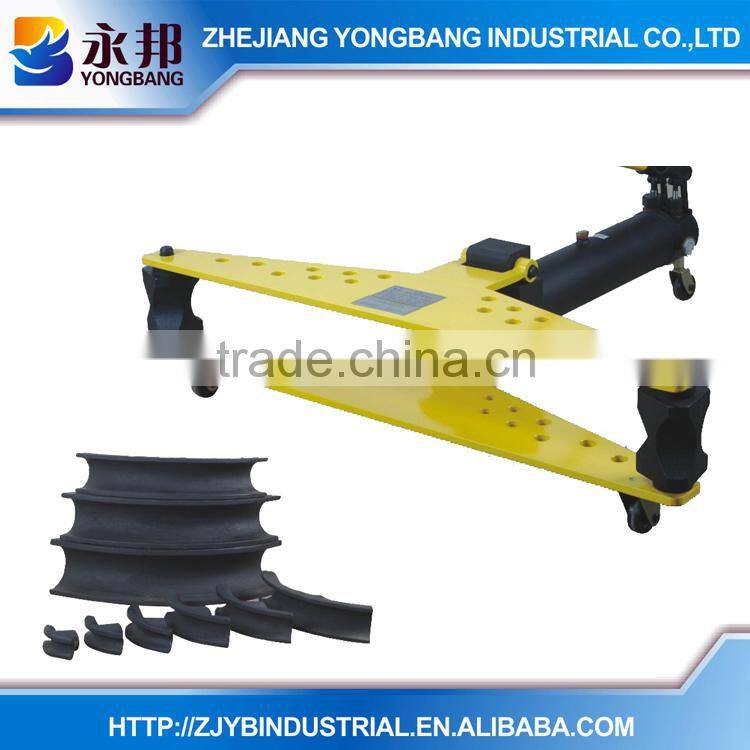

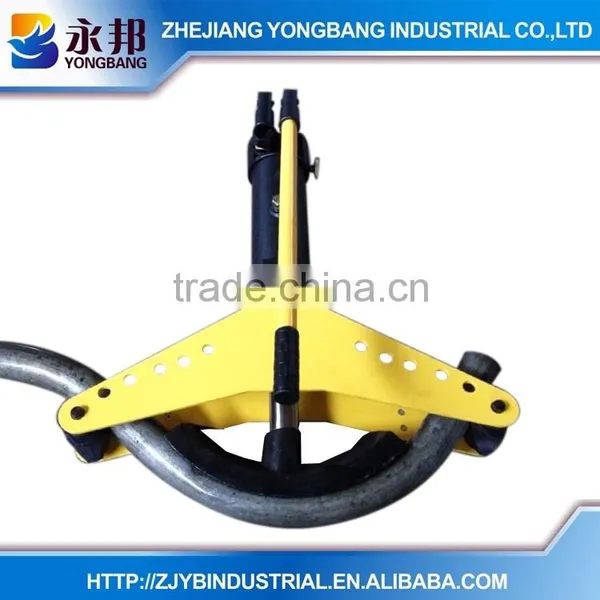

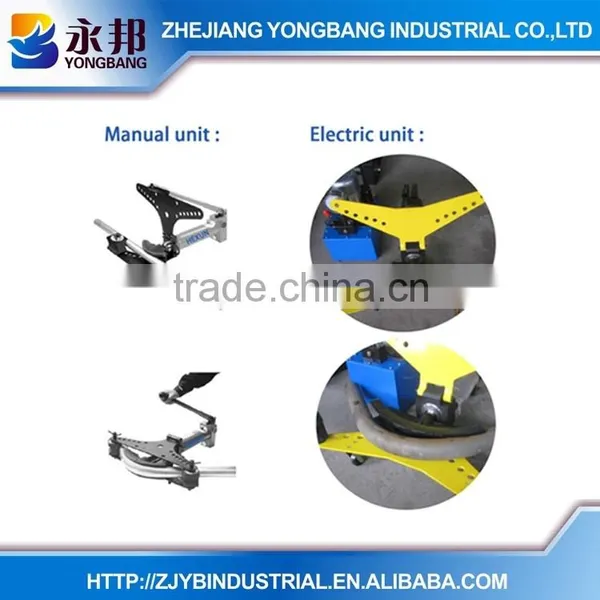

1.Pictures Of Hand Operated Bending Machine
2.Descriptions Of Hand Operated Bending Machine
| Model | YB-SYW-4 |
| ure(Mpa) | 62 |
| Max.stroke(mm) | 420 |
| Crimp range(mm) | Φ21.3-Φ108 |
| Bending die(in) | 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4" |
| Pipe wall thickness(mm) | 2.75-6 |
| Oil grade(#) | N15 |
| G.W.(kg) | 162 |
| Volume(cm) | 118*46*25 |
1).Our pipe bending machine has passed TUV CE/GS certificate, quality control is our first life.Service for client is our main work.
2). We offer a wide range of Hydraulic Pipe Bending Machine that are used for Pipe Bending purpose in various industries . It is designed for common water pipe,conductor pipe,gas pipe,thick steel pipe and so on..The bending angle could be 90 degree.
3).In addition to their precision, toughness and variety, Our pipe bending machines offer these great features.it's also could be fast and easy setup on the jobsite.
3.Features of Our Product
1. It is designed for common water pipe, conductor pipe, gas pipe, thick steel pipe, etc, The bending angle could be 90 degree
2. For 1/2”-2” one operation to be 90 degree, For 2~1/2” – 4”, Pipe must be moved and bend for five times to the demanded radian
3. It is made of strong nodular cast iron bending pipe mould materials
4. Bended surface smooth without folding marking, It’s easy to operate
4.Quality Control of Our Product
1).Before the order can be confirmed finally,we would strictly check the material ,accessories of the sample step by step.
2).We salesman ,also as a order follower,would trace every phase of production from the beginning.
3).We have a QC team ,every product would be checked by them before packed.
4).We would try our best to help clients solve problems when they occurred.
5).Most of our products have passed TUV CE /GS ISO9001 certificate.

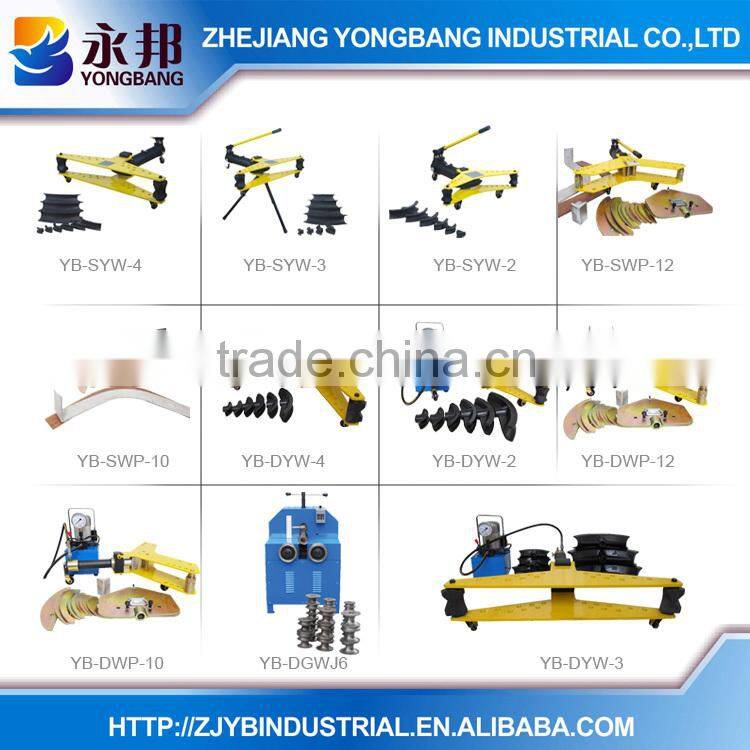

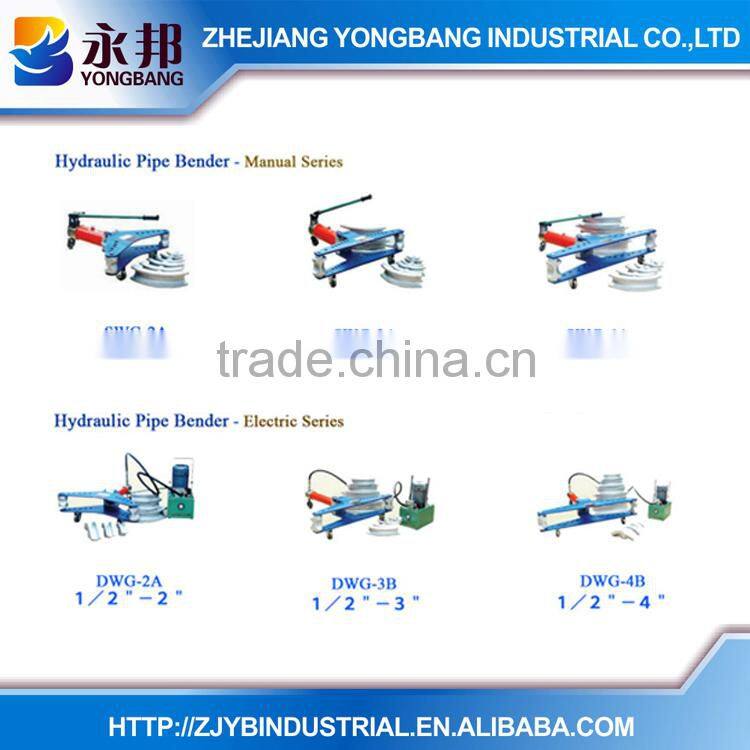

5.More Products for You to Choose
