Specifications
bidirection X10 module for home automation-x10 signal
-bidirectional communication with feedback checkable
-220v,50hz
-CE

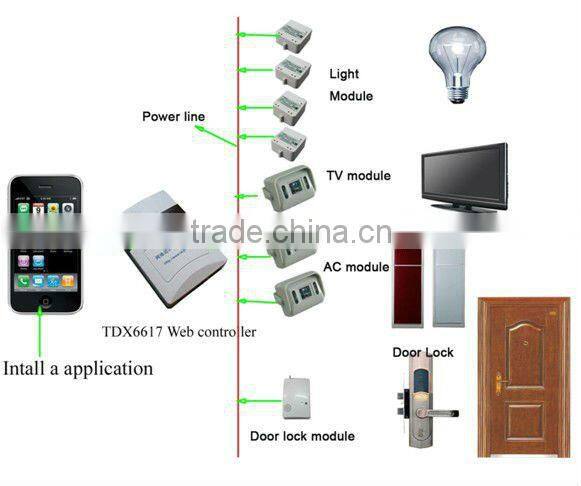

TAIYITO bidirection X10 module for home automation
Module | Description | Piture | Used in PLC system Receive PLC signal and transmit related signal Used for lamp Compatible with X10 products |
TDXE4203 | Fluorescent Lamp Module(Max 1500W) | | |
TDXE4401 | Incandescence Lamp Micro Dimmer Modul | ||
TDXE4403 | Fluorescent Lamp/Appliance Module | ||
TDXE4404 | 2-Way Fluorescent Lamp/Appliance Module | ||
TDXE4202 | Appliance Module (Max 2200W) | ||
TDXE4602 | 2-way Scene Module (max 16 addresses per scene) Locally used with 2-Button or 4-Button switch pannel
|
Product Description | Micro Lamp/Appliance Module | Curtain Module | Scene Module | ||||
Model No. | TDXE4202 | TDXE4401 | TDXE4403 | TDXE4404 | TDXE4466 | TDXE4602 | |
Commands | All On |
| Yes | Yes | Yes | Yes | Yes |
All Off | Yes | Yes | Yes | Yes | Yes | Yes | |
Dimmer |
| Yes |
|
|
|
| |
Specs | Voltage&Frequency | 220VAC ,50 HZ | |||||
Maxinum Load | 2200W | 300W | 300W | 600W | 45W |
| |
Controllable Device | Appliance | Incandescence | Fluorescent&Appliance | Curtain | X10 modules | ||
Neutral Wire | Yes | Yes | Yes | Yes | |||
Operating Temp | -10~50 | ||||||
Static Power | 0.5w | ||||||
Dimension(W*H*D) | 46*46*23mm | ||||||
Response Time | 2s | ||||||
Installation:
For the lamp which you want to control, only need to put the module inside the standard
86 type switch box, the switch box should have the naught wire, if you don’t have the naught
wire just put it on the lamp
