Stability With Perfect Effect Fiber Laser Glass Batch Coding Machine

Specifications

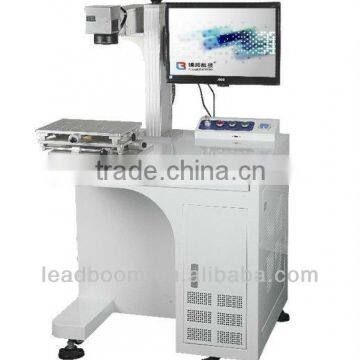

Fiber Laser Glass Batch Coding Machine
Germany IPG fiber laser
Scanlab galvanometer
SAMlight software

Stability With Perfect Effect Fiber Laser Glass Batch Coding Machine

1. Technical Parameters:

Type	LB-MF10	LB-MF20	LB-MF30
Power	10w	20w	30W
Fiber Beam quality	M2≤1.4	M2≤1.8	M2≤1.8
Speed	≤7000mm/s	≤8000mm/s	≤8000mm/s
Power consumption	0.5KW	0.8KW	1.2KW
Wavelength	1064nm
Working area	50x50mm-300x300mm
Minimum Linewidth	0.01mm
Repeated precision	±0.001mm
Cooling system	air-cooling
Power supply	AC220V/50Hz
Dimension	800x680x1200mm




2.Product overview

    Fiber laser label machine adopts Germany IPG fiber laser and high speed Germany scanlab galvanometer scanning system.Laser power is very stable, beam quality is excellent, optical mode is good, marking speed is very fast and marking effect is nice. Can meet the demand of industrialization of continuous working.

Imported Germany Scanlab galvanometer	The fiber laser working area and it is adjustable
Imported Germany IPG laser power	Adopt Lenovo computer







 3. Advantages

• Using the third generation of optical fiber solid lasers, pump light source through the optical fiber coupling lightning conversion efficiency over 80%, higher beam quality, long service life time, laser life time can reach 100000 hours ( lamp pumped YAG in hundreds of hours, semiconductor in 10000 hours).
• Perfect beam quality, achieved a ultra fine marking effect. It has more advantages particularly in making antiwhite, scrub and chromatic effect on stainless products.
• Adopt imported high-speed scanning head, and combined with software makes engraving very fast, so the processing speed is 3 or 5 times quicker than ordinary YAG and DP semiconductor.
• Air-cooling, no consumables, maintenance free, saving electricity and energy ( the machine power is only 500W ), the latter use cost is very low, compared with YAG and DP semiconductor laser marking machine, the annual electricity savings of 3-5 thousand US Dollar.
• Without intermediate mediators involved in processing makes the mark absolutely environmental, which can fully meet the ROHS standards.



4. Application Material & field:

Materials: metal and all kinds of nonmetal materials, high hardness alloy steel, oxide, electroplating vacuum plating, epoxy resin, printing ink, ABS, and other engineering plastic.



Industry: Plastic keypad keys, components of digital product, electronic components, electrical appliances, jewelry, precision machinery, hardware accessories, glasses clocks and watches, qimo accessories, sanitary ware, communication products, medical devices, integrated circuit (IC), building materials, pipe materials, more suitable for high demand of .accuracy, speed and depth to the products.







5.Our company

Dongguan Leadboom Photoelectric Technology Co., LTD., is dedicated to researching and developing laser equipments and mass manufacturing for our customers overseas.    And we have built long term strategic parterships with the COHERENT, SYNRAD, II VI from the US, and MITSUBISHI, Panasonic from Japan, and Rofin, IPG from Germany,etc.    Our main products including CO2 laser wire stripping machine, fiber laser wire stripping machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser cutting machine, laser engraving machine, solid laser welding machine series over 20 sets of laser equipment, etc.    Our company takes "quality, innovation, efficiency, service" as business target and is now growing fast with our partner and client together. And we also believe that the basis of a enterprise development is the attitude of pursuing excellence and the support from customers will strengthen our confidence. The only device can no longer stand for our technology, we are offering the solutions. Let’s cooperate together for the brighter future!





 6.Our Workshop

The stripping machine waiting for assembling
The laser marking machine waiting for assembling	The laser mmarking machine in use







 7.Samples:





Fiber laser marking on metal



Fiber laser marking on button	Fiber laser on hard plastic	Fiber Laser drawing on Wood







Not exactly what you're looking for? Please don't hesitate to tell us your requirements!
