Heat Transfer Machine for Bucket

Specifications

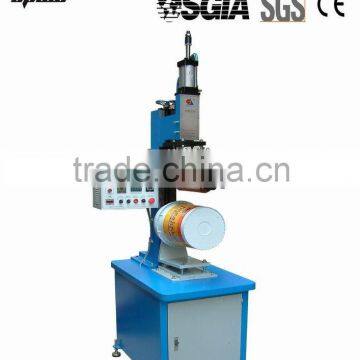

GN-L300A Heat Transfer Machine for Bucket
1.CE approved
2.Hot Stamping Size: 320*300mm
3.Hot Stamping Frequency:30 times/min

Flat Hot Stamping Machine

Certification:CE approved
Specification:

GN-L300A Heat Transfer Machine for Bucket is designed for bucket, Extra large structural design is suited for big size products; The jig can be changed conveniently; According to different sizes of product, you just need to change corresponding jig; By adjusting the stamping speed ,pressure and temperature, you can achieve all kinds of stamping effect; with two operate model, you can operate this machine safely.

Application:

It's widely used in bucket-type product, such as Coating Bucket, Toilet Pail, Oil Drum,

Chemical bucket, Flower Disc etc.

Technical Parameters:

Hot Stamping Size: Ø320*300mm

Heat Power: 3.5KW

Hot Stamping Temperature:Max.350°C

Hot Stamping Frequency:30 times/minutes

Air Source Pressure:5~7 bar

Power Supply:AC220V/50Hz,3500W

Weight: 200KG

Overall Size (L*W*H)(mm):1000*800*2100mm

OEM: our factory can custom according to your requirement with our excellent engineers who have more than 10 years experience.
