BB5013 Thin Section Ball Bearing(BB Series) (50x80x13mm) Import replace

BB5013 Thin Section Ball Bearing(BB Series) (50x80x13mm) Import replace

A . Thin Section Ball Bearing(BB Series) Parameters

Brand- BYC

Structure- Four-Point Contact Ball

Model number- BB5013 Thin section ball bearing

Inner ring(mm)- 50

Outer ring(mm)- 80

Width(mm)- 13

Weight(kg)- 0.24

Materials- Chrome steel/GCR15/Stainless steel

Precision grade- P5/P4/P2

Lubrication type- Oil

Material(Ball)- Steel ball/Ceramic ball

Number of Row- Single rows

Section Type- Thin section

Quality- High speed, Low noise and Long life

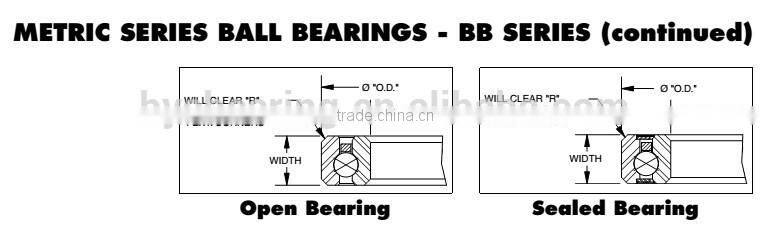

B . BB5013 Thin Section Ball Bearing(BB Series) Specification Sheet

C . BB series Thin Section Ball Bearing(BB Series) Details

Product Features "BB Series Thin Section Ball Bearings Are Available to Match the Bores and Widths of Common Crossed Roller Bearings.BB Metric Series four-point

contact ball bearings are dimensionally interchangeable with cross-roller bearings"

Series Introduction When factors such as cost, availability, corrosion resistance, tighter tolerances, torque, seal/shield options, and temperature resistance are important in your application, it pays to consider BB Series fourpoint contact metric ball bearings as an alternative to cross-roller bearings. the additional design flexibility they offer can often help you achieve your design objectives with optimum performance and economy.

Series Model No. "BB3010,BB3510,BB4010,BB4510,BB5013,BB6013,BB7013,BB8016,BB9016,BB10020,BB11015,BB11020,BB12025,BB13025,BB14025,BB15013,BB15025,BB15030,BB20025,BB20030,BB20035,BB25025,BB25030,BB25040,BB30025,BB30035,BB30040,BB40035,BB40040,BB50040,BB50050,BB60040,BB70045,BB80070,BB90070

"

Applications Applications in Robotics, inspection equipment, satellites, cameras… anywhere precise positioning and designs are critical.

D . BB series series Thin Section Ball Bearing(BB Series) Installation & Cautions

"To realize the potential accuracy and long life of a Thin section bearing, it is important that the installation be properly done in a clean environment. Cleanliness is vital to satisfactory bearing performance. Work surfaces and tools must be free of dirt, chips, and burrs. Disposable wipers or clean, lint-free cloths should be used.

Under no circumstances should a bearing be used as a gage during grinding or machining of mating parts. Just a few grains of grinding grit or chips of metal (soft as well as hard) can seriously damage the precise geometry and finishes of bearing raceways and rolling elements, and are nearly impossible to remove from an assembled bearing.

The shaft and housing should be thoroughly cleaned, special attention being given to holes and crevices which could hold dirt, chips, and cutting oil. Unfinished surfaces of castings should be painted or otherwise sealed. The mounting surfaces for the bearing must be carefully checked, cleaned, and lightly oiled to ease fitting and minimize danger of scoring. Housing bore, shaft diameter, shoulder squareness, and fillet sizes should all be verified.

The bearing should not be removed from its protective package until this preparation is complete and it is time for installation."

"To realize the potential accuracy and long life of a Thin section bearing, it is important that the installation be properly done in a clean environment. Cleanliness is vital to satisfactory bearing performance. Work surfaces and tools must be free of dirt, chips, and burrs. Disposable wipers or clean, lint-free cloths should be used.

Under no circumstances should a bearing be used as a gage during grinding or machining of mating parts. Just a few grains of grinding grit or chips of metal (soft as well as hard) can seriously damage the precise geometry and finishes of bearing raceways and rolling elements, and are nearly impossible to remove from an assembled bearing.

The shaft and housing should be thoroughly cleaned, special attention being given to holes and crevices which could hold dirt, chips, and cutting oil. Unfinished surfaces of castings should be painted or otherwise sealed. The mounting surfaces for the bearing must be carefully checked, cleaned, and lightly oiled to ease fitting and minimize danger of scoring. Housing bore, shaft diameter, shoulder squareness, and fillet sizes should all be verified.

The bearing should not be removed from its protective package until this preparation is complete and it is time for installation."

2.Well-trained & experienced staff are to answer all your inquiries in English of course.

3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.

4.Your business relationship with us will be confidential to any third party.

5.Good after-sale service offered, please get back if you got question

6.Nowadays, as a professional precision bearing manufacture, we are proud of continual innovation, flexible production, speedy delivery, rapid after-sales service(2 years) and quick response.

       Luoyang BoYing Bearing Co., Ltd,(BYC) is a professional manufacturer of high precision bearings, The main products of our company are Crossed roller bearings, YRT Rotary Table Bearings, Crossed Tapered Roller Bearings, Angular Contact Ball Bearing, Ball Screw Bearings, Slewing Bearings, Cylindrical Thrust Roller Bearing. The leading products include Crossed roller bearing RB, RE, RU,RA,CRBC, CRBH, XSU, SX series, rotary table bearings YRT, YRTS,YRTM,ZKLDF series, crossed tapered roller bearing JXR, XR series, almost whole range of precision bearings. The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines,mainly to replace the imported bearings. Also, we can design,choose and manufacture  non-standard,large size precision bearings as customer requested.

1. Industrial Neutral Packing,Package as your requirements.

2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton

3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box

4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc
