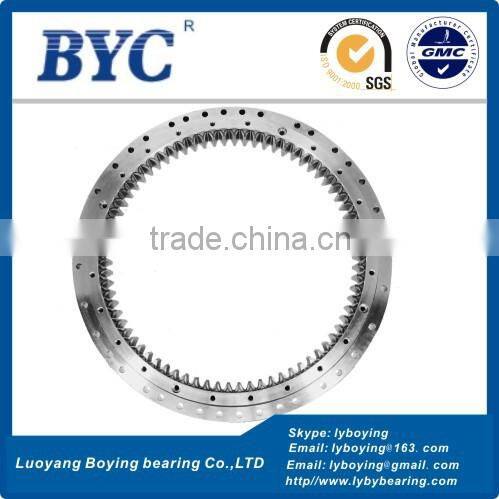

VSI250955N Slewing Bearings (810x1055x80mm) Luoyang Boying Bearing Large Diameter Bearing Slewing Ring Bearing

VSI250955N Slewing Bearings (810x1055x80mm) Luoyang Boying Bearing large diameter bearing slewing ring bearing

A . Slewing Bearings Parameters

Brand- BYC

Model number- VSI250955N

Inner ring(mm)- 810

Outer ring(mm)- 1055

Width(mm)- 80

Weight(Kg)- 149

Materials- GCR15/GCR15SiMn/50Mn/42CrMo/5CrMnMo

Series- VSI25

Lubrication type- Grease lubrication

Rolling elements- Ball

Load direction- Multi-load

Structure- Four Point Contact Ball,Internal Gear Teeth

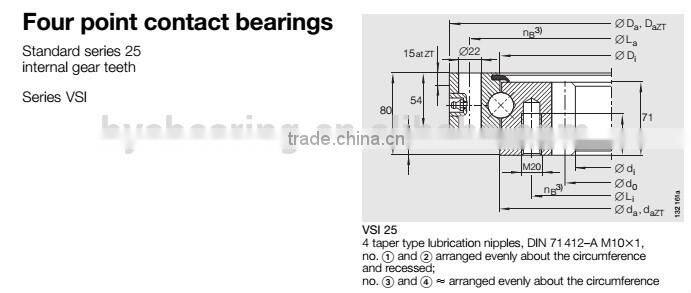

B . VSI250955N Slewing Bearings Specification Sheet

C . VSI25 type Slewing Bearings Details

Product Features

Slewing Bearings have high load carrying capacity, a versatile range of applications and are highly cost-effective.Due to their design, a single bearing can reliably support radial,axial and tilting moment loads. It is therefore possible in many cases to replace bearing arrangements comprising a combination of radial and axial bearings by a single bearing. BYC Slewing Bearings have Two types:Four point contact slewing bearings and crossed roller slewing bearings.

Series Introduction

As VSI 20 but with rolling element diameter 25mm

Series Model No.

VLA200414N,VLA200544N,VLA200644N,VLA200744N,VLA200844N,VLA200944N,VLA201094N;

VLI200414N,VLI200544N,VLI200644N,VLI200744N,VLI200844N,VLI200944N,VLI201094N;

VLU200414,VLU200544,VLU200644,VLU200744,VLU200844,VLU200944,VLU201094;

VSA200414N,VSA200544N,VSA200644N,VSA200744N,VSA200844N,VSA200944N,VSA201094N;

VSI200414N,VSI200544N,VSI200644N,VSI200744N,VSI200844N,VSI200944N,VSI201094N;

VSU200414,VSU200544,VSU200644,VSU200744,VSU200844,VSU200944,VSU201094;

VSA250755N,VSA250855N,VSA250955N,VSA251055N;

VSI250755N,VSI250855N,VSI250955N,VSI251055N;

VSU250755,VSU250855,VSU250955,VSU251055;

VA140188V,VA160235N,VA160302N,VA250309N;

VI160288N,VI140326V,VI160420N;

VU140179,VU200220,VU130225,VU200260,VU140325,VU250380,VU200405,VU250433,VU300574,VU360680;

Applications

Product Application:Turntable, Tower Crane, Excavator,Machine Tools,Gear reducer,Textile machine,wind turbines etc.

D . VSI25 type Slewing Bearings Installation & Cautions

1. Four point contact slewing bearings

– these slewing rings without preload are robust and provenunder very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction

– they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in

simple metalworking machines, wind power equipment and

2. Crossed roller slewing bearings

– these preloaded slewing rings can support higher loads than four point contact bearings. They have proved themselves

particularly where bearings are subjected to high radial forces and moderate axial and tilting moment loads

– they are suitable for applications with uniform running free from stick-slip, low rotational resistance and high requirements for axial and radial runout accuracy and rigidity, for example in robots,handling systems and machine tools.

2.Well-trained & experienced staff are to answer all your inquiries in English of course.

3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.

4.Your business relationship with us will be confidential to any third party.

5.Good after-sale service offered, please get back if you got question

6.Nowadays, as a professional precision bearing manufacture, we are proud of continual innovation, flexible production, speedy delivery, rapid after-sales service(2 years) and quick response.

1. Industrial Neutral Packing,Package as your requirements.

2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton

3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box

4.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc

       Luoyang BoYing Bearing Co., Ltd, (BYC) is a professional manufacturer of high precision bearings,The main products  are Crossed roller bearings ,  YRT Rotary Table Bearings ,  Crossed Tapered Roller Bearings ,  Cylindrical Thrust Roller Bearing ,  Angular Contact Ball Bearings ,  Thin Section Bearings, Slewing Bearings  ,  Ball Screw Bearings . The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for Robotics, Machine Tools, Rotary Table, medical equipment, measuring instruments ,mainly to replace the imported bearings. Also, we can design,choose and manufacture non-standard precision bearings as customer requested.
