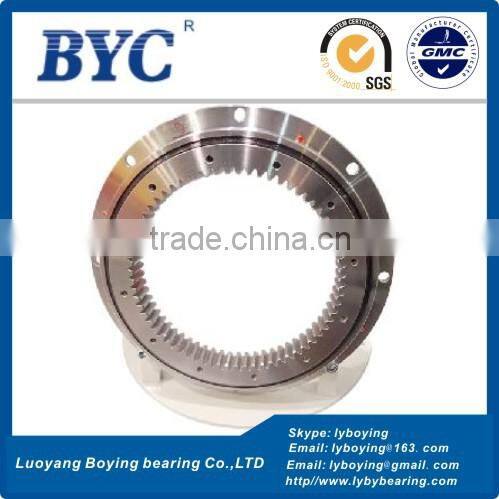

RK6-25N1Z Slewing Bearings (21.6x29.45x2.205in) BYC Band High rigidity swing bearing turntable bearing

RK6-25N1Z Slewing Bearings (21.6x29.45x2.205in) BYC Band High rigidity swing bearing turntable bearing

A . Slewing Bearings Parameters

Brand- BYC

Model number- RK6-25N1Z

Inner ring(in)- 21.6

Outer ring(in)- 29.45

Width(in)- 2.205

Weight(lbs)- 106

Materials- GCR15/GCR15SiMn/50Mn/42CrMo/5CrMnMo

Series- RK-Internal gear

Lubrication type- Grease lubrication

Rolling elements- Ball

Load direction- Multi-load

Structure- RK series slewing rings are offered in nongeared, internally geared, and externally geared configurations for maximum design flexibility

B . RK6-25N1Z Slewing Bearings Specification Sheet

C . RK-Internal gear type Slewing Bearings Details

Product Features

Slewing Bearings have high load carrying capacity, a versatile range of applications and are highly cost-effective.Due to their design, a single bearing can reliably support radial,axial and tilting moment loads. It is therefore possible in many cases to replace bearing arrangements comprising a combination of radial and axial bearings by a single bearing. BYC Slewing Bearings have Two types:Four point contact slewing bearings and crossed roller slewing bearings.

Series Introduction

Kaydon RK series slewing ring bearings provide solutions for applications where a large diameter and lighter weight are key. RK series slewing rings have a flanged cross-section on one or both rings that reduces weight and provides the equipment designer with Kaydon's unique flexibility, accommodating various configurations of adjacent mounting structures and bolting arrangements.

Series Model No.

RK6-16P1Z,RK6-22P1Z,RK6-25P1Z,RK6-29P1Z,RK6-33P1Z,RK6-37P1Z,RK6-43P1Z,RK6-16N1Z,RK6-22N1Z,RK6-25N1Z,RK6-29N1Z,RK6-33N1Z,RK6-37N1Z,RK6-43N1Z;

RK6-16E1Z,RK6-22E1Z,RK6-25E1Z,RK6-29E1Z,RK6-33E1Z,RK6-37E1Z,RK6-43E1Z

MTO-050,MTO-050T,MTO-065,MTO-065T,MTO-122,MTO-122T,MTO-143,MTO-143T,MTO-145,MTO-145T,MTO-145X,MTO-170,MTO-170T,MTO-210,MTO-210T,MTO-210X,MTO-265,MTO-265T,MTO-265X,MTO-324T,MTO-324X;

MTE-145,MTE-145T,MTE-145X,MTE-210,MTE-210T,MTE-210X,MTE-265,MTE-265T,MTE-265X,MTE-324T,MTE-324X,MTE-415,MTE-415T,MTE-470,MTE-470T,MTE-540,MTE-540T,MTE-590,MTE-590T,MTE-705,MTE-705T,MTE-730,MTE-730T,MTE-870,MTE-870T

KH-125P,KH-166P,KH-225P,KH-275P,KH-325P;KH-125E,KH-166E,KH-225E,KH-275E,KH-325E

HS6-16P1Z,HS6-21P1Z,HS6-25P1Z,HS6-29P1Z,HS6-33P1Z,HS6-37P1Z,HS6-43P1Z,HS6-16N1Z,HS6-21N1Z,HS6-25N1Z,HS6-29N1Z,HS6-33N1Z,HS6-37N1Z,HS6-43N1Z.HS6-16E1Z,HS6-21E1Z,HS6-25E1Z,HS6-29E1Z,HS6-33E1Z,HS6-37E1Z,HS6-43E1Z

Applications

RK series slewing ring bearing solutions have been used successfully in a variety of light to medium duty applications including:

Small cranes, booms, and lifts

Industrial positioners and rotary tables

Chute swivels

Stretch wrapping machines

Bottle filling machines

Conveyors and related material handling equipment"

D . RK-Internal gear type Slewing Bearings Installation & Cautions

1. Four point contact slewing bearings

– these slewing rings without preload are robust and provenunder very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction

– they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in

simple metalworking machines, wind power equipment and

2. Crossed roller slewing bearings

– these preloaded slewing rings can support higher loads than four point contact bearings. They have proved themselves

particularly where bearings are subjected to high radial forces and moderate axial and tilting moment loads

– they are suitable for applications with uniform running free from stick-slip, low rotational resistance and high requirements for axial and radial runout accuracy and rigidity, for example in robots,handling systems and machine tools.
