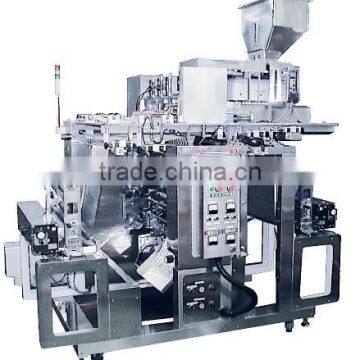

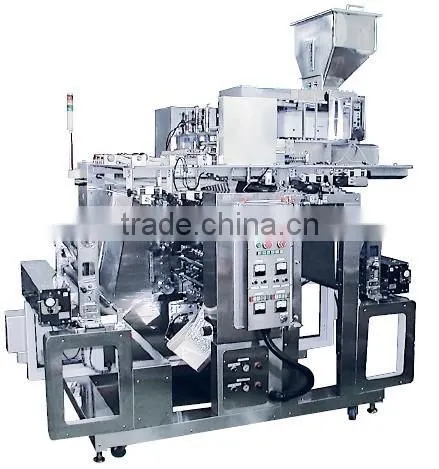

KMP-500 MULTI-LANE STICK TYPE AUTOMATIC POWDER & GRANULE FILLING AND PACKAGING MACHINE
Product Specification:
This multi-lane type machine is designed for filling powder and granule, The sealing is made by single roll type heating roll and beautiful sealing will be obtained.The available roll width is 500mm and most efficient/economical production will be executed. With our own photocell control system, an easy print registration is possible.
| SPECIFICATIONS: | |
| Filling Product: | powder & granule
|
| Pouch Pattern: | 4-side seal
|
| Pouch Height Range: | 45-120mm (with roll replaced)
|
| Pouch Width: | 11-65mm Optional Item: Turn table cup filler/Sliding weigher Number of lanes: 2~12 lanes (Turn table cup filler: 4 lanes,Sliding weigher: 2~12 lanes)
|
| Packaging Capacity: | 25-50 pouches per minute(1-lane) ×lane amount (depending on pouch height,film composition,product property,etc)
|
| Filling Capacity: | 1-50c.c. (depending on product property and filling device to be used)
|
| Applicable Film Width: | Maximum 500mm
|
| Maximum Film Roll Dia: | 300mm
|
| Power Consumption: | 3-phase 380V 8.3kw
|
| Air Consumption: | 300L/min(0.4~0.5Mpa)
|
| Machine Dimensions: | 2360mm(L)×1400mm(W)×2450mm(H)
|
| Machine Weight: | Approx.1600kg |
| Application: | Especially applicable to packaging of all kinds of powder,granule etc. |
Advantage:
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
3. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
5. The part where touch to the materials is made of stainlesss steel is accord with the request of GMP.
Auto Package process
Packing Sample:
After Service:
The seller guarantee to solve all problems which may occur due to manufacture’s mistakes or wrong design, a
nd to provide all necessary spare parts and in case if the problem is serious and can’t be solved by buyer, The
seller has to send his technician on the buyer’s account.
