Lumileds Chip Top Quality IP68 Square Shape 100W 120W 200W 150w Led High Bay Light
- shanghai guangzhou
- T/T
You May Like
-
High Efficiency Light Source Industrial Ceiling Mount LED High Bay Light
-
3000k 6000K 100W 120W 150W IP68 Industrial Led High Bay Light With CE ROHS Quality Choice
-
Wholesale Best Price 100w 150w Led High Bay Light for Gas Station 100w 150w Quality Choice
-
CE & RoHs Approved Luminaire Led Industrial High Bay Lamp 150W Led High Bay Light
-
New Products 2016 150W Led High Bay Light, 120W Industrial High Bay Led Light, China Supplier Wholesale
-
TUV LVD CE ROHS 120W Led High Bay Light
Product Details
| LED Light Source | Philips | Warranty(Years) | 5 | |
| Input Voltage(V) | AC100-277V | Lamp Power(W) | 200 | |
| Lamp Luminous Flux(lm) | 20000lm | Lamp Luminous Efficiency(lm/w) | 90 | |
| Color Temperature(CCT) | Cool White | Working Temperature(℃) | -40, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | IP68 | Certification | C-tick, CE, CQC, EMC, ETL, SAA | |
| Place of Origin | China | Brand Name | Sonight Lighting | |
| Model Number | SN-G5A |
Product Description
led square shape ceiling mount high bay light
Light source | Philips Lumileds LUXEON T LED |
Lumen output range | 9500 lm - 21600 lm |
Beam angle options | Symmetrical beam 30°x60°,25°,40°,60°,90° |
Colour rendering index (CRI) | Ra >70 |
Correlated colour temperature (CCT) | 4000K standard,3000k 5000K and 5700K available |
Luminaire efficacy | up to 102 lm/W |
Electrical |
|
Power consumption (W) | 80W-200W |
Operating frequency | 50/60Hz |
Operating voltage range | 100 - 277V AC |
Power factor | > 0.95 |
Driver type | Inventronics/Meanwell |
Driver efficiency | > 91% |
Environmental |
|
IP rating | IP68 |
Impact rating | IK4 |
Weight range | 7.1. - 8.3kg |
Ambient operating temperature range | -40ºC to +50°C |
Material composition (heat sink) | Aluminium Alloy |
Material composition (diffuser) | Polycarbonate |
Expected lifespan | >60,000 hours @L70 |
Controls - Optional | Dimming (1-10V DC, PWM) |
Warranty | 5 years |
led flood light | Data subject to change without notice |
Warehouse lighting ,factory lighting ,rink lighting ,gas station Lighting

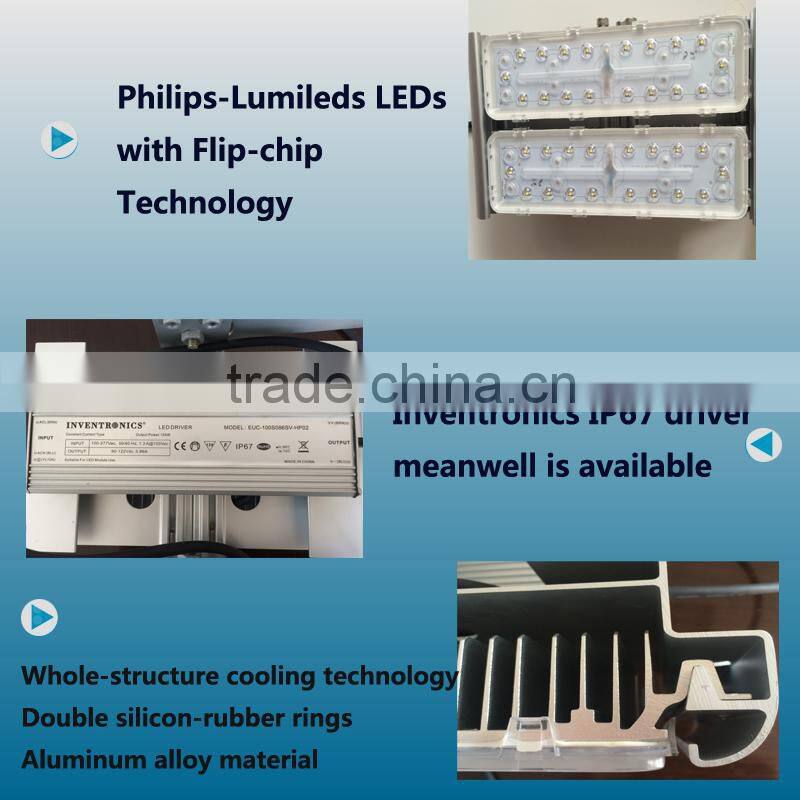

.Philips Lumileds LEDs, flip chip technology, single unit’s damage won't affect others' normal work;
.Honeycomb briquette effect heat dissipation principle, best thermal management system;
.Designed to last at least 50,000 hours at L70;
.Multiple lighting distributions available;
.Wide power range: 40W~200W;
.Standard color temperatures: 3000K, 4000K, 5000K, 5700K;
.Minimum 70 CRI;
.IP68 modules: highest waterproof level, hot-pluggable, easy for installation and replacement;
.Aluminum housing;
.Multiple housing colors: black, white, grey, blue;
.Easy tool onsite maintenance and repair;
.5-year limited warranty.
Payment terms :L/C T/T.
Minimum order: 10 units.
Lead time/Delivery time: 15 day(s)
Delivery details: We will start to make the production after we received the 30% deposit,the delivery date should be negotiated according to the order quantity,normally we need 15 working days to ship the goods.
Sample available: Yes,ask for sample.
FOB port: Shanghai,Guangzhou.
Loading info: Sample can send by DHL,TNT,Fedex,small order can send by air freight,and big quantity can send container from Shanghai or Guangzhou port.
Packing info: Each light will be packed by the cartons,shipment will load into the container by pallet or pcs according to the buyer's requirement.
