Specifications
Grandway Bench-top Optical Power Meter1.High precision
2.Large dynamic range
3.Auto zero adjustment, auto range

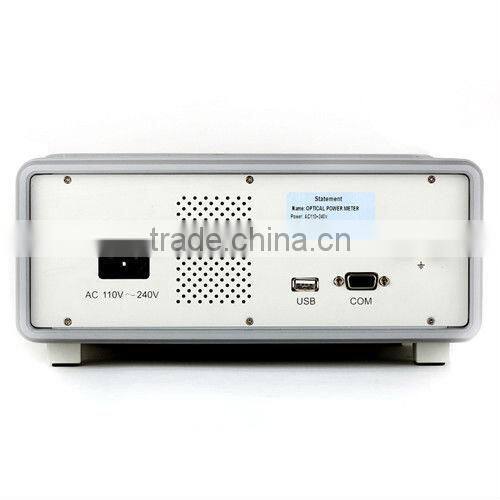

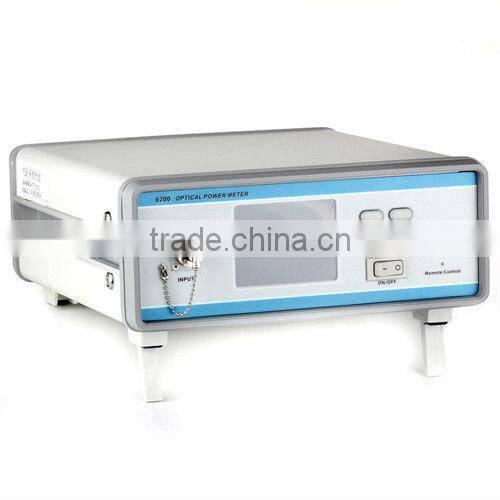

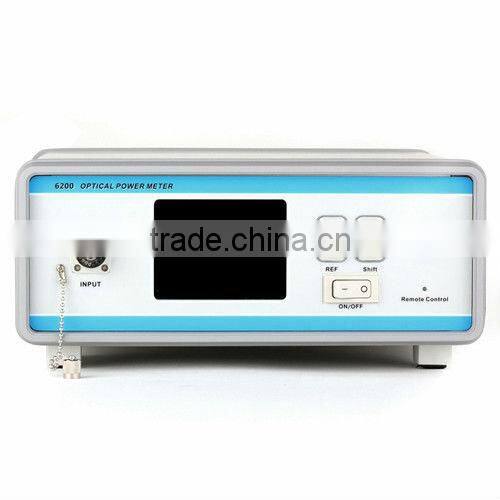

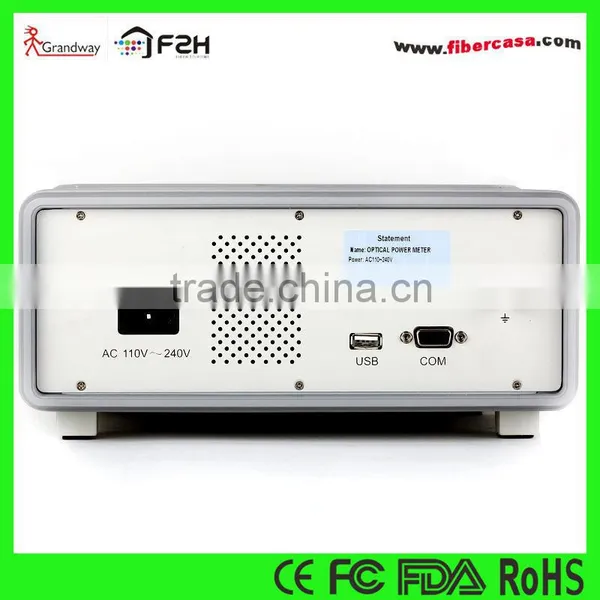

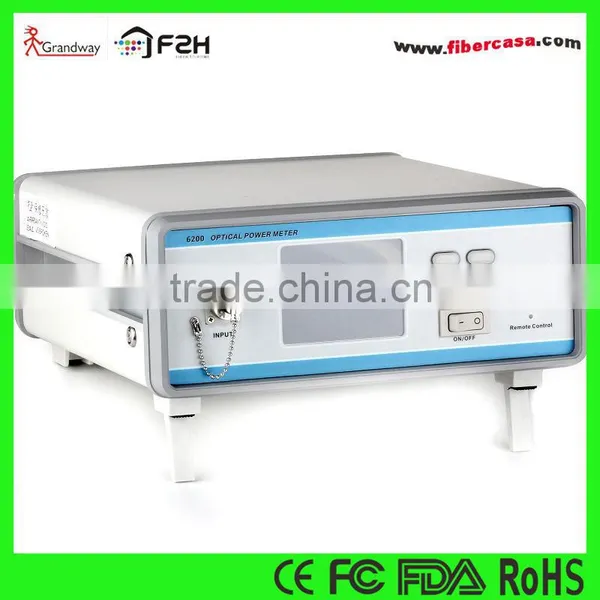

Grandway Bench-top Optical Power Meter
General Description:
Table-top optical power meter is a high precision and wide range optical power detecting instrument aimed at factory and scientific research department.It also is a high cost performance testing instrument.
Features:
♦ High precision,large dynamic range,auto zero adjustment, auto range
♦ 0.01dB display resolution ratio
♦ Large TFT color screen
♦ Menu style operation,easy to use
♦ Integrate various testing mode
♦ Include frequency signal output interface
♦ Include various communication interface
♦ Absolute power measuring
♦ Loss measuring
♦ Laser source stability measuring
Important applications:
♦ Absolute power measuring
♦ Loss measuring
♦ Laser source stability measuring
Specifications:
Detector type |
InGaAs |
Detector size( selectable ) |
1000uM |
Testing wavelength( nm ) |
850/1300/1310/1490/1550/1625 |
Power range( dBm ) |
+10 to -80 |
Uncertainty |
± 5% (±0.01nW)(tested in a @ 20±3°C environment) |
Resolution ratio( dB/dBm ) |
0.001(can be set) |
Inside temperature display(°C) |
0 to 40 |
Analog output(V) |
0 to 5 |
Remote controlling interface |
RS232/USB |
Detector interface |
FC/SC/ST |
