Specifications
Portable veterinary ultrasound machine1. 7'' high-resolution LED screen, 0.7kg weight
2. MOQ:1pcs
3.Packing: 1 piece/box

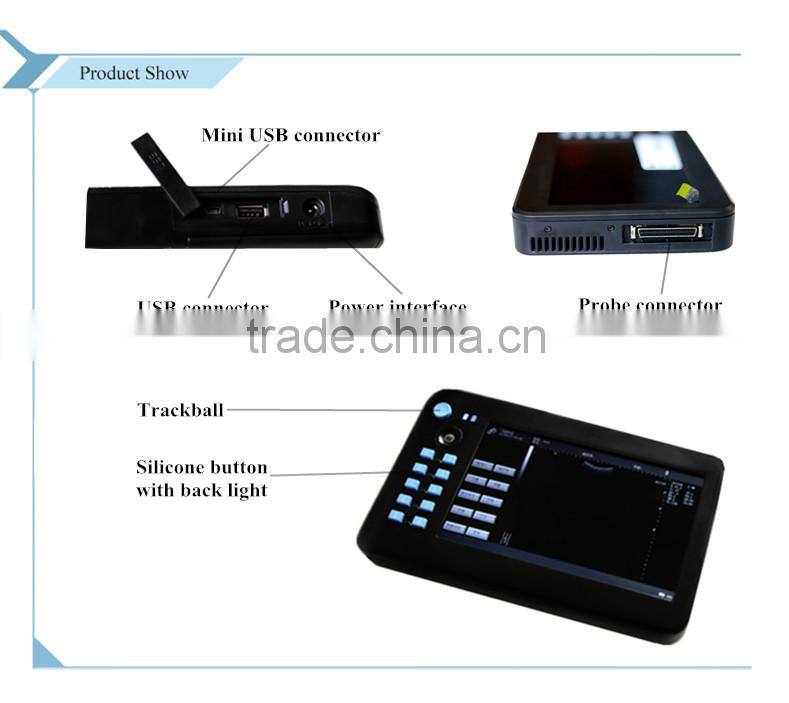

Berry full digital palmtop ultrasound
Model: B-2
Portable ultrasound machine has a more compact structure, the palm design makes it easier to carry and operate. Adopting the latest techniques, the machine can realize a crystal clear, stable and high resolution imaging function. With optional and external probe, it can be used for abdominal organs, transvaginal examination, also other parts of body. And relative software for people or animals are both available.
Technical Specification | |
Size | 219x134x33.5 mm |
Weight | 0.7 kg |
Screen | 7'' LED screen |

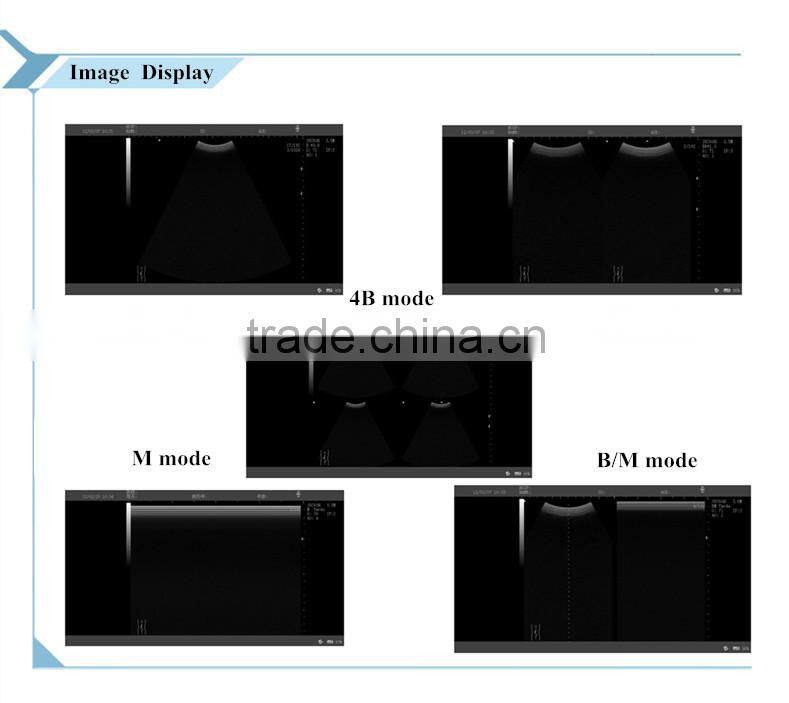

Display Mode | B |
2B | |
BM | |
M | |
4B | |
Scanning Methods | Convex |
Linear | |
Sweeping speed of image display | 2s, 4s, 6s, 8s are provided in the mode of M or BM mode |
Main performance | Multi-stage dynamic focusing |
Continuous dynamic variable aperture | |
Zoom and scroll control | |
3-segment TGC adjustment | |
256 gray scales | |
Frame correlation and line correlation | |
Logarithmic compression | |
Dynamic filtering | |
Wide dynamic range | |
Wide-band low noise preamplifiers | |
Image processing | Total gain, brightness, contrast, and angle adjustment |
Edge enhancement | |
Up/down, left/right, black/white reversing | |
Multi-level magnification | |
Depth upgrade | |
Cine Loop | 192 frames , playback selectable |
Permanent image storage | 1024 frames in permanent flash memory |
Image output | Image read-write function through USB connection in the form of Bmp or Dicom. |
measurement | Distance, perimeter, area, volume, angle |
Fetal age, fetal weight, due date, heart rate etc. | |
Body marks | ≥40 |
Preset | Hospital information, date, time |
Fetal weight formula | |
Image format, pseudo-color selection | |
Puncture guidance. | |
Image annotation and ultrasonic area pseudo-color. | |
Supporting USB mouse action. | |
Power save mode. | |
Standard Configuration
Monitor( with software) | 1pc |
3.5MHz R60 convex probe( Abdominal organs) | 1pc |
Bag(optional) | 1pc |
Optional Probe type
Frequency | 3.5 MHz±15% | 3.5 MHz±15% | 6.0 MHz±15% | 5.0 MHz±15% | 7.5 MHz±15% |
Probe type | R= 60mm convex | R= 20mm convex | R=13mm convex | L=70mm linear | L=40mm linear |
Scanning depth | ≥ 160 | ≥ 140 | ≥ 40 | ≥ 100 | ≥ 50 |
Axial resolution, mm | ≤3 (Depth≤80) ≤4 (80< Depth ≤130) | ≤3 (Depth≤80) ≤4 (80< Depth ≤130) | ≤2 (Depth≤30) | ≤2 (Depth≤60) | ≤2 (Depth≤40) |
Radial resolution, mm | ≤2 ( Depth ≤80) ≤3 (80< Depth ≤130) | ≤2 ( Depth ≤80) | ≤1 ( Depth ≤40) | ≤1 ( Depth ≤80) | ≤1 ( Depth ≤50) |
Blind zone, mm | ≤5 | ≤7 | ≤4 | ≤4 | ≤3 |
Geometric positioning accuracy ,% | ≤15(Radial) ≤10 (Axial) | ≤20(Radial) ≤10 (Axial) | ≤10(Radial) ≤5 (Axial) | ≤15(Radial) ≤5 (Axial) | ≤10(Radial) ≤5 (Axial) |
Power information
Power supply | AC 220V±22V, 50/60Hz |
Rechargeable lithium battery (One full charge can work for 2 hours) | |
Power consumption | ≤200VA |
Requirements for environment
| Operation | Preservation | Transportation |
Temperature | 5℃~ 40℃ | -5℃~40℃ | -30℃~55℃ |
Humidity | 30%~80%, no condensation | < 80%, no condensation | ≤95%, no condensation |
Atmospheric pressure | 86kPa~ 106kPa | 86kPa~ 106kPa | 50kPa~ 106kPa |
