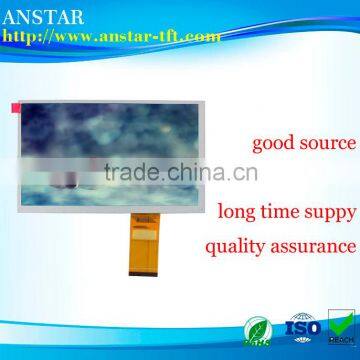

2016 HOT 800*400 PIXEL600 NITS TFT LCD PANEL

Name: 2016 HOT 800*400 PIXEL600 NITS TFT LCD PANEL
Brand: Anstar
Availability: InStock

FOB Price

USD $1 - $99 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Perch / Perches per Month
Port HONGKONG
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Anstar
Model Number	AS080LJ01CW-30B		Type	TFT

Product Description

Screen Size	8''
Module Size(WxHxD,mm)	192.8 x 116.9 x 6.4
Active Area(mm)	176.64 x 99.36
Display Mode	Normally white
Display colors	16.7M
Resolution	800 × 3 (RGB) × 480
Viewing Angle (Tpy.)θT/θB/θL/θR	60/70/75/75
Aspect Ratio	16:9
Luminance(nits)	600
Contrast Ratio	500
Power Consumption (W)	3.246
Interface	24bit*RGB
connecting type	60pinFPC+backlightcable
Operation Temperature( ℃)	-20~70
Storage Temperature (℃)	-30~80
Driver IC	origianl FOG
HTHH.(op)	60℃,90% RH
Response Time(ms)	25
Dot Pitch(WxH,mm)	0.0736 x 0.2070

AS012BL24-13IM-02A

AS017TL41-20NP-02A

AS024TL43-40NK-04B

AS035CL04-54NA-06A

AS040TL48-51NQ-08B-G

AS062LA01CW-21B

Certifications

Our Company

Anstar Electronics Co,Ltd was established in 2007 , which is committed to researching and developing of TFT panel modules , manufacturing and selling of high-tech .

Our company has many years of experience in research, developing and manufacturing. and we also have a professional quality management team . We always persevere with work in the TFT display field and we try to provide excellent products and best service for the customer. Our company passed the certification of IS09001-2008 quality management system certification, and we have high standard purified workshops, automated assembly production line, high precision testing instruments and professional reliable testing equipment for production, etc.

We offer high quality, high reliability products, which were widely used in automotive, human machine interface, industrial medical equipment and other fields. Besides we have been focused on researching of differentiated products such as high brightness TFT, wide viewing angle products, etc.

We can develop custom-made products according to customer’s requirement to adapt to the application of special occasions. By optimizing the production process we also can achieve small batch, diversified production. Base on the strong product resources and many years of precipitation, we can provide with the best selection, technical supporting and good after-sales service.

Anstar Electronics Co,Ltd regards integrity as the life of enterprise , employees is the core of enterprise , customers is the best business partners .We always aggregate core strength keep continuous improvement and sustainable management.

Packing & Delivery

FAQ

Q:1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q: 2. What is the lead time for sample?

A: Current sample needs 1-3 days, customized sample needs 7-10 days.

Q: 3. Do you have any MOQ limit?

A: Our MOQ is 100.

Q: 4.How long is the warranty?

A:12 Months.

Q: 5. what express do you often use to send the samples?

A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to

arrive.

Q: 6. What's your acceptable payment term?

A: Our usually payment term is T/T. Others can be negotiated.

Q: 7. How to proceed the order if I have logo to print?

A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation.if sample is ok, finally we will go to mass production.

For more detailed information about our TFT LCD module, please feel free to contact us, we will offer you the specificati
