Help CenterCommercial Stainless Steel Deep Fryer Heating Element
Related Products
-
Customized Home Appliance Electric Deep Fryer Heating ElementUS$ 2 - 5MOQ: 1 Piece -
Customized Deep Fryer Heating ElementUS$ 5 - 10MOQ: 1000 Pieces
-
Barbecue Oven or Frypan Heating ElementUS$ 1.2 - 5MOQ: 1 Piece
-
110v Immersion Deep Fryer Heating ElementUS$ 2 - 5MOQ: 1 Piece
-
High Performance Immersion Deep Fryer Heating ElementUS$ 2 - 5MOQ: 1 Piece
immersion deep fryer heating element
| |||||||
|
Changshu Tinymote Electrical Appliance Co., Ltd. is the professional manufacturer of heating element with more than 10 years experience.Our factory total area 3000 square meters,which is located at Suzhou City, near by Shanghai,only 50 kms far from our factory to Shanghai and 200 kms to Ningbo.
Our main products are water heating element for water heater, solar energy heating element and ALCI( capability of leakage protective plugs.).we introduced many advanced technology and equipment so that we can provide higher quality product to customer, and the delivery time will be shorter. Our products are accpeted by many customer.
| |||||||
| |||||||
| Our Product Experience | |||||||
| Tiny mote is the professional manufacturer of electric heater,with experienced design team, specialized in the production of high quality electric heating element, which mainly sales at: South Africa,the Middle East,Latin America and so on. | |||||||
| |||||||
|
|
Technical Parameter | |

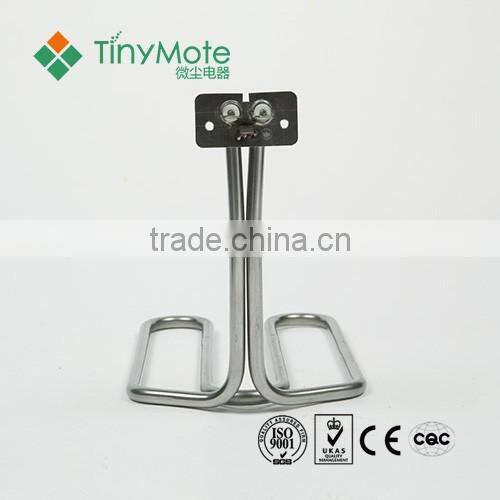

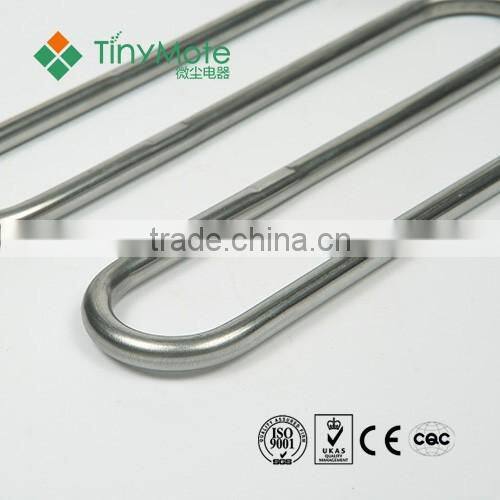

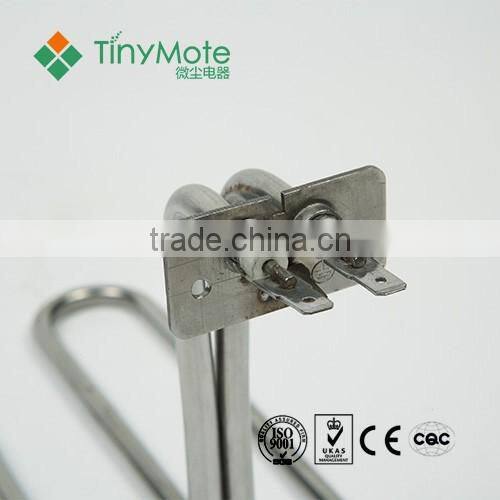

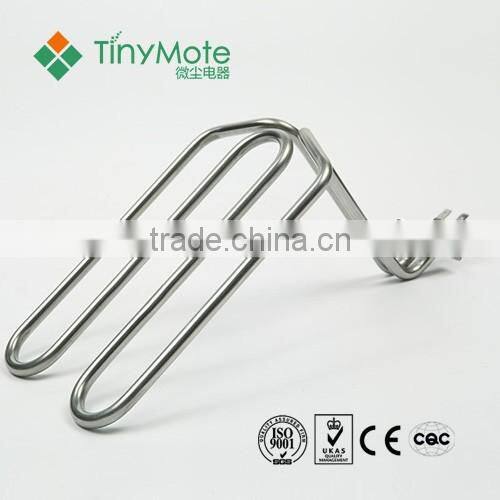

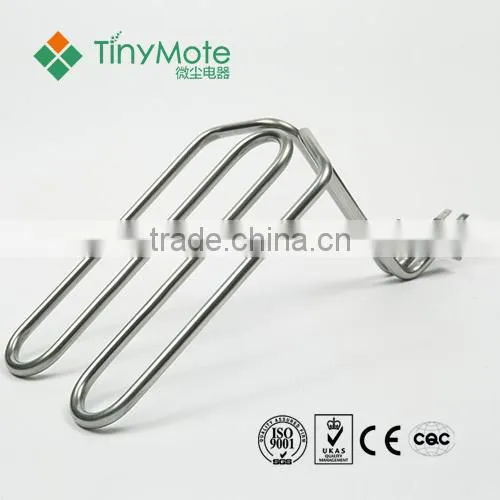

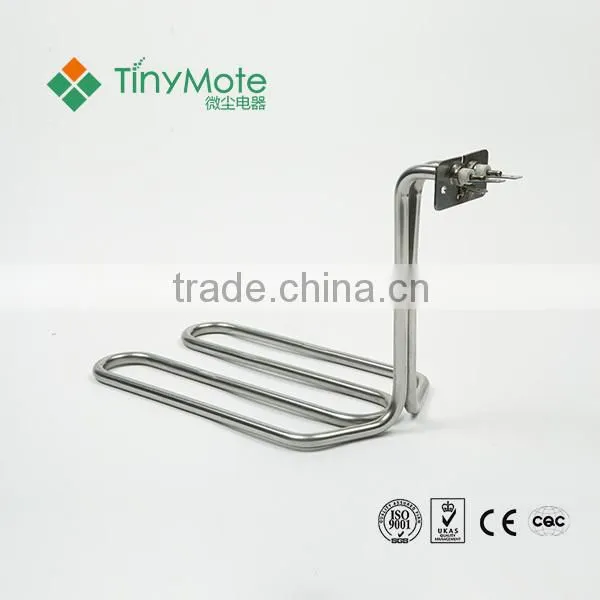

commercial stainless steel deep fryer heating element | |
Body Material |
SUS304 |
Pipe Size |
Φ8.0 |
Tube wall thickness |
0.4-0.6mm |
Terminal Size |
SS250#parent plugins |
Terminal Connection |
Instal flange riveting with tube not be loose |
Watt |
customized |
Voltage |
Customized |
Overall Dimensions |
OEM,customized in drawing or samples. |
Electrical Performance |
AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA |
Life Time |
Put in the humidity cabinet more than 48 hours under the humidity of 90~96%,then placed at the room temperature 30 minutes,should satisfy the demand of cold insulation resistance and pressure.Under the 1.15 rated voltage,dry quenching more than 150 hours,test after cooling should satisfy the cold insulation resistance and pressure requirement.Under rated voltage,power on 1 hour,power off 0.5 hour,recycle more than 1000 times,the heating element is normal. |
Warranty |
TWO year |
High- pot test |
1500V/2mA/1S |
Resistance insulation |
100MΩ MIN |
Leakage current |
0.5mA MAX |
Surface Treatment |
bright heat treatment |
Hydraulic testing |
withstand 1.2MPa pressure test no leakage |
flange material |
SUS304 or SUS430 |
welding of flange technique |
Flange and pipe joint with tinning welding |
| ||||||||
| ||||||||
| ||||||||
|
|
|
|
1.Q: Are you a trading company or .a factory? A:We are a factory. |
|
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Changshu of Suzhou city, Jiangsu province, China. It is about 100 km far from Changshu to Shanghai,drive only need 2 hours to our factory. All the client, from home or abroad, are warmly welcome to visit us. |
|
3.Q:How can I get some samples? A:We are honored to offer you samples,will send to you by express. |
|
4.Q:Are your products customized? A:Yes, the products in the website are only common type or the customized types ordered by our customers, we can supply products according to your samples and drawings. |
|
5.Q: How does your factory control quality? A:Quality is priority, our QC always keep step to quality control during production process,all of the orders will be delivery after QC passed. |
