5-10T Luggage Trailers for Cars

Specifications

 5-10T luggage trailers for cars

1. Performance and application recommendation:

1 Double-reed buffered traction mechanism, having a buffered function when starting or braking the vehicle to avoid damage to the goods

2 Steering mechanisms is composed rotary by the Shanghai Machine Works (excavator hook arm rotary assembly) without fear of damage for 10 years.

3. The leading bridle can be adjusted up and down or fixed, just simplify to adjust according to different tonnage of truck traction or other tractions

4. Suspending vehicle frame, compared to the traditional hard-link (Weld), decreasing the long-term stress of vehicle’s body, longer life to use.

5. Axle automatically swing adjusted. Ensure the board level and tire force balance when on the rugged ground.

2. Instruction of parameters:

PT * A/B ** W- ** L ** S/H

PT: Rated load

A: With guardrail

B: Without guardrail

W: Platform’s width

L: Platform’s length

S/H: S: Solid tire; H: Hollow tire

3. Configuration instance:

 PT06B-24W-56L4S(6H)

(Customized different models or configurations according to customer requirements)

1, Rated load: 6 tons

2, Height of the vehicle bearing surface: 650MM.

Size of vehicle body: 2400MMX5600MM

3, Quantity tires: 8, Model 400-8 solid tires (Shanghai).

4, Main framework: 8th steel structure (Liu Gang).

5, Surface: 4MM safety tread pattern.

6, Rotating body: 5 tons Shanghai Machine Works rotary composed.

7, Double - reed buffered traction mechanism (braking or starting buffer).

8, Suspension frame: 180 degree rotation stand.

9, Unilateral set 8 yards hook.

10, With a connector.

11, Barricade optional choose.

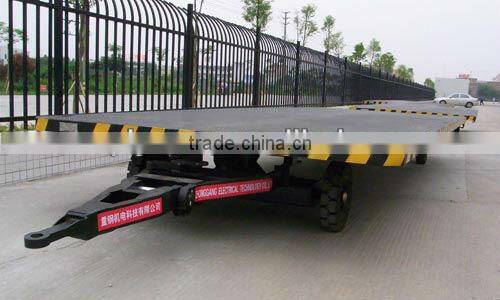

♦ 8T Without Barricade

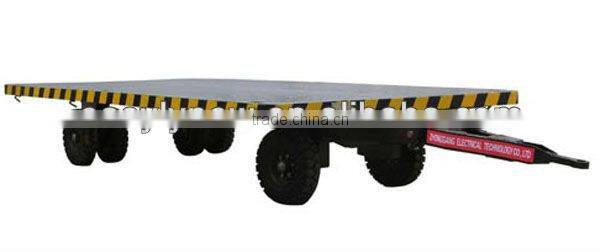

♦ 10T Without Barricade

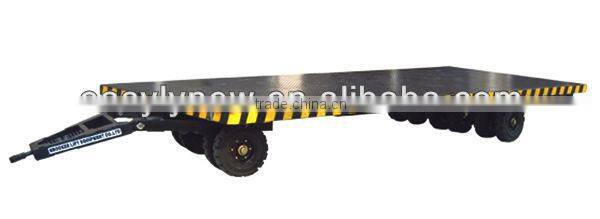

  ♦ 5T Without Barricade

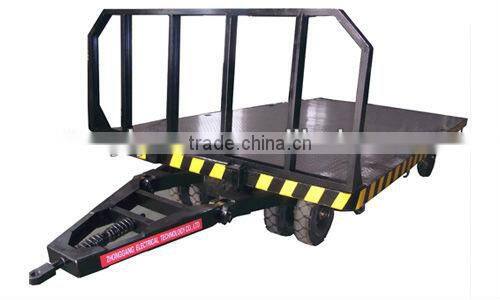

♦10T With front and rear barricade

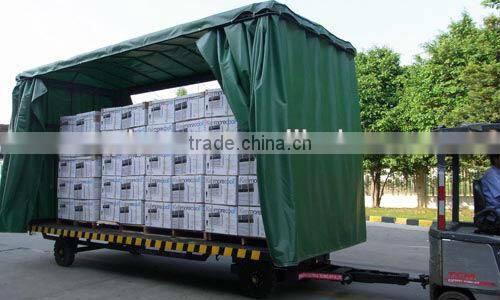

♦10T With  a car

We can customized for your requirements!

The rated load

Platform dimension

Tyre amout/kind

Struction

Barricade
