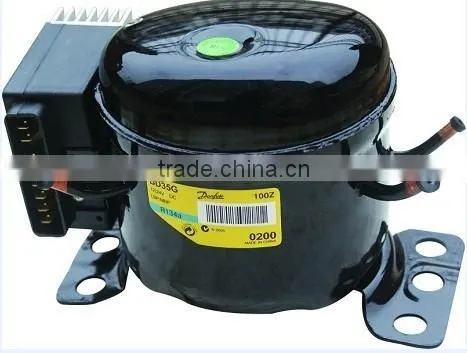

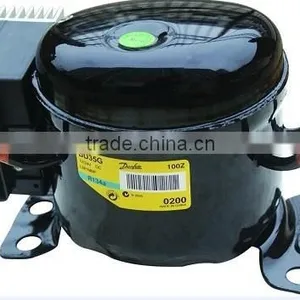

DC 12V/24V BD35 Compressors
US$ 111 - 130
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Compressor
Place of Origin:
Zhejiang, China
Brand Name:
Meilile
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V/24V BD35/52/72/92 DC CompressorUS$ 68 - 220MOQ: 100 Sets -
DC Refrigerator CompressorNegotiableMOQ: 100 Pieces
-
DC 12V/24V Refrigeration CompressorNegotiableMOQ: 100 Pieces
-
DC 12V/24V Refrigeration Compressor Solar CompressorsNegotiableMOQ: 100 Pieces
-
Small DC 12V/24V/36V/48V/72V Refrigerator CompressorUS$ 110 - 230MOQ: 10 Pieces
Type
Compressor
Place of Origin
Zhejiang, China
Brand Name
Meilile
Model Number
BD35
Certification
CE
Specifications
1.low noise2.light weight
3.high efficieny
4.good reliability
5.anti-shock design
the compressors are using the DC power .
| Model | BD15 | BD25 | BD35 | BD52 | BD72 | BD92 |
| Displ. cm3 | 1.2 | 1.5 | 3.0 | 3.6 | 6.6 | 7.6 |
| Application | MBP/LBP | |||||
| Refrigerant | R134a/R406/R600 | |||||
| Rotation rpm | 2000/2500/2750/3000/3300/3500 | |||||
| Capacity W | 40/70 | 50/110 | 70/125 | 110/250 | ||
| Input power W | 30-50 | 60-90 | 70-100 | |||
| Opcrating Current A | 12V5/7.5 24V2.5/3.8 12V8.0/10.0 24V4.0/5.0 | |||||
| C.O.P W/W | 1.1 | 1.3 | 2.0 | |||
| Cooling | ST/FC | |||||
| Lubricant | Polyester | |||||
| Lube Vol ml | 165±5 | 245±5 | ||||
| Weight(with oil) kg | 5 | 8.5 | ||||
| Power Supply VDC | 12V 24V 36V | 12V 24V 36V | ||||
| Voltage VDC | 10.542V(≥3000rpm15-42V) | 10.5/42V(≥3000rpm18-42V) | ||||
| Motor Type | DC Motor | |||||
| Test conditions: | Evaporating Temp | Condcnsing Temp | Suction Temp | Sub-cooling Temp | Ambient Temp | |
| -23.3 | 54.4 | 32.2 | 32.2 | 32.2 | ||
the above parameter content can change by evaporating temp/compressor rotation and voltage's changing .
