DC Rotary Compressor for DC 24V~72V Air-condition Compressor
Specifications
1.Low noise2.Intelligent protection system
3.DC Voltage customizable
4.Excellent refrigerating effects
5.Antishock
These DC rotary air-condition compressors are different from the regular inverter air-condition compressor.
DC input ,DC output ,without inverter.

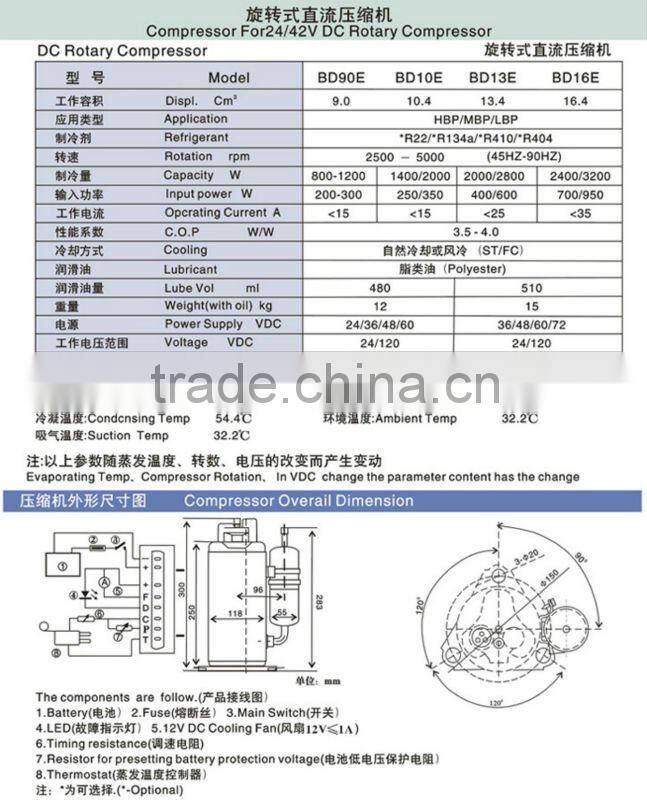

Model | BD90E | BD10E | BD13E | BD16E | |||||
Displ.(cm3) | 9.0 | 10.4 | 13.4 | 16.4 | |||||
Application | HBP/MBP/LBP | ||||||||
Refrigerant | R134a/R22/R404/R410 | ||||||||
Rotation (rpm) | 2500 - 5000 ( 45Hz-90Hz ) | ||||||||
Refrigerating Capacity (W) | 800 - 1200 | 1400 - 2000 | 2000 - 2800 | 2400 - 3200 | |||||
Input power (W) | 200 - 300 | 250 - 350 | 400 - 600 | 700 - 950 | |||||
Opcrating Current (A) | < 15 | < 15 | < 25 | < 35 | |||||
C.O.P (W/W) | 3.5 - 4.0 | ||||||||
Cooling | ST/FC | ||||||||
Lubricant | Polyester | ||||||||
Lube Vol (ml) | 480 | 510 | |||||||
Weight(with oil) kg | 12 | 15 | |||||||
Power Supply (DC) | 24V/36V/48V/72V/110V | 24V/36V/48V/72V/110V | |||||||
Voltage range (DC) | 24V/120V | 24V/120V | |||||||
Motor Type | DC Motor | ||||||||
Test conditions (degrees cesius) | Evaporating Temp | Condensing Temp | Suction Temp | Sub-cooling Temp | Ambient Temp | ||||
7.2 | 54.4 | 32.2 | 32.2 | 32.2 | |||||
Note: The parameters change with Evaporating temperature / compressor rotation / DC power input.

Products update constantly and the data is only for referance.
We are:
- The first DC solar refrigerator,freezer ,air-condition manufacturer in China.
- The car 24V battery supplies power,energy saving and environmental protection.(The voltage can be made to custom's order)
- Under-Voltage and Over-Voltage protection,motor over-current and phase lack protection
- Optimize the pipeline connection to reduce the refrigerant leakage rate
