50t/day Large Capacity Sweet Potato Starch Processing Machine
Bizoe sweet potato starch processing machine used wet process, and donot add any addititives; the whole line adopts mature technology, advanced equipment, scientic and rational process. The flow chart including washing and peeling--crushing--filtering--concentrating and refining--dehydration and drying--packaging. Besides all machine contact part is stainless steel, which can meet the quality of food production. All machine is easy operate, which just need 4-5 people for the wnole line.
Details of Bizoe sweet potato starch processing machine:
1. Convey, washing and peeling section
The fresh cassava roots transported by the conveyor into the feeder of the cleaning machine, then cleaning and peeling machine will remove the dirt and other foreign matters completely, and then the cleaning cassava in a temporary storage hopper into the next procedurethe grinding and rasping section automatically.
2. Rasping&grinding section( Curved Mesh Crusher)
The grinding is the most important part of cassava starch extraction. Bizoe adopts Curved Mesh Crusher( national patent machine)with high efficiency allows the starch granules in the cassava cells to be released out completely.The machine adopts production works of multi-crushing, multi-washing, multifilter, multiextrusion, which ensures minimum quantity of the remaining starch in the cassava residue and separating the starch from the cassava slurry and the cassava residue.
3. Filtering section(Desanding cyclone, filter)
Rasping cassava slurry is pumped through the fiber pump into the desanding cyclone.When the slurry enters desanding cyclone, the light phase of starch will come out of the top as overflow, and the heavy phase like sands will be discharged from the bottom, then cassava slurry will go into filter.
4. Starch concentration and refine section( starch hydro cyclone)
Starch hydro cyclone is another key unit which influences the cassava starch yields and quality. The cassava slurry enters the first stage centrifugal sieve from desanding cyclone,the slurry is separatedinto starch slurry and cassava residue under the centrifugal force. Starch slurry is pumped through the defoaming pump to the hydrocyclone station for washing starch, and the cassava residue is sent to second and third grade centrifugal sieves through fiber pump for starch recovery.thefresh water enters the hydrocyclone from the other end which washes starch. The overflow enters two grade recovery station to recycle starch, the bottom flow is washed.Through other grade washing cyclone to ensure that the starch slurry does not contain impurities and final starch will be in accordance with national standard.

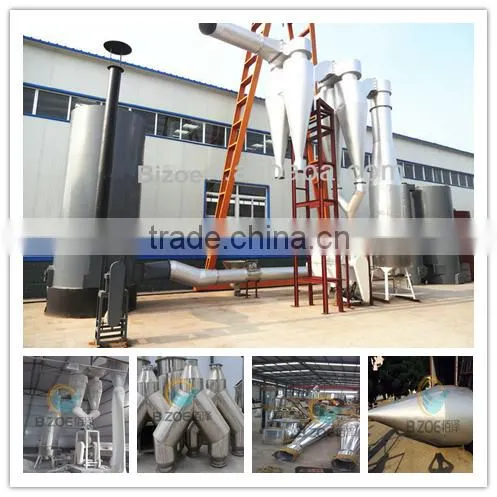

5. Starch dewatering section( Vacuum Dehydrator and Overflow Air Flash Drying System)
The starch out of the cyclone station has 45% moisture so it must be dewatered and dried. The starchslurry enters vacuum dewatering filter tank from the starch milk buffer tank. Under the vacuum formed by the vacuum pump, the starch slurry is sucked to the drum surface, then filtrate goes through filter mesh and enters the filtrate separating tank. The starch cake remains on mesh surface and is scraped off by a scraper and transported by the conveyor belt into the air dryer. Then weighing and packing.
Introduction main machine of sweet potato starch processing machine:

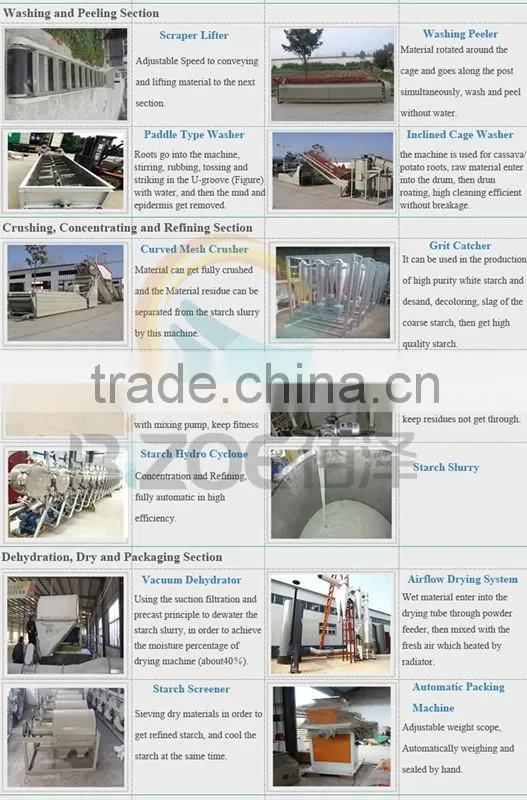

Main machine pictures of sweet potato starch processing machine:
Main technology parameters:
Edible potato starch | |
Item |
AQL |
Moisture % |
≤14.5 |
Ash (dry basis) % |
≤0.40 |
Protein (dry basis) % |
≤0.40 |
Fat (dry basis) % |
≤0.20 |
PH |
5.0-8.0 |
Fineness, um |
≥99.5 |
Whiteness ,(457nm),% |
≥88.0 |
Viscosity 6% starch 700cmg/BU |
≥600 |
As a professional exporter,our target is to serve worldwide clients with high-quality products,great reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
Our Service of sweet potato strach processing machine:
| 1) Warranty is 1 year. |
| 2) You can visit our factory, show you whole production line, and introduce machine one by one. |
| 3) Professional engineers are available to install machine in your country. |
| 4) Factory design can offer to you. |
| 5) Operation books and technology will offer to you. |
| 6) We cab offer the Turkey Project for you. |
Delivery Time: within 45 days after received your deposite( for production line); within 15 days after received your deposite( for sinagle machine)
Payment terms: T/T, L/C, D/A, D/P or as you request.
Installation: professinal engineers are available to install machines in your country.
Professional engineers are available to install machine in your country.
May i invite you to visit our factory, i believe you will be satisfeied with our sweet potato starch processing machine
