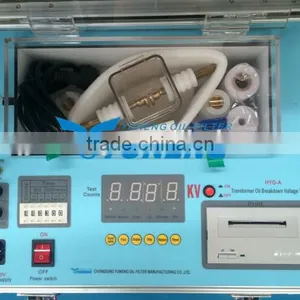

Insulation Oil Tester (IEC156 Standard), Measurement of Insulation Oil Dielectric Strength Tester
1. Brief introduction of Insulating oil dielectric strength tester
Insulating oil dielectric strength tester / Insulating oil tester is designed comply with IEC-156 and according to the feedback from the users.
This tester is controlled by MCU. It makes the tester can be operated automatically according to the presetting on the controlling panel. The whole process is controlled by the MCU, simply and convenient.
2. Features and Applications of Insulating oil dielectric strength tester
The tester is designed to test the power strength of all kinds of insulating oil. Its features are shown as following:
1. The tester has auto-check function. It will reset the power to 0v automatically, when power on.
2. A TPU-A panel type printer is adopted to print test report.
3. According to the user's requirements, the testing times, the time for stirring and stillness, and the notice method all can be set on the controlling panel.
4. The magnetic shaker is adopted to stir the oil sample. It makes the oil mixed well and no bubbles.
3. Technical Specification of Insulating oil dielectric strength tester
1. Power supply: AC 200V-240V ,50HZ ±5%
2. Testing range: AC 0-80KV
3. Rating current: 10.5mA
4. Accuracy: 1.5%
5. Speed of pressure regulation: 2.5KV/S±10%
6. Presetting options:
Testing counts: 1-9
Time of stirring: 0 sec to 1:39 sec.
Time of Stillness: 0 sec to 10:39 sec.
7. Operation temperature: 0ºC-35ºC
Relative humidity: ≤75%
8. Oil cup space: 2.5mm (diameter of the oil cup's clearance gauge )
9. Volume: 415×315×315mm3
10. Weight: 28kg
Insulating oil dielectric strength tester / Insulating oil tester from Chongqing Yuneng OIl-Filter Manufacturing Co.,LTD
